| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

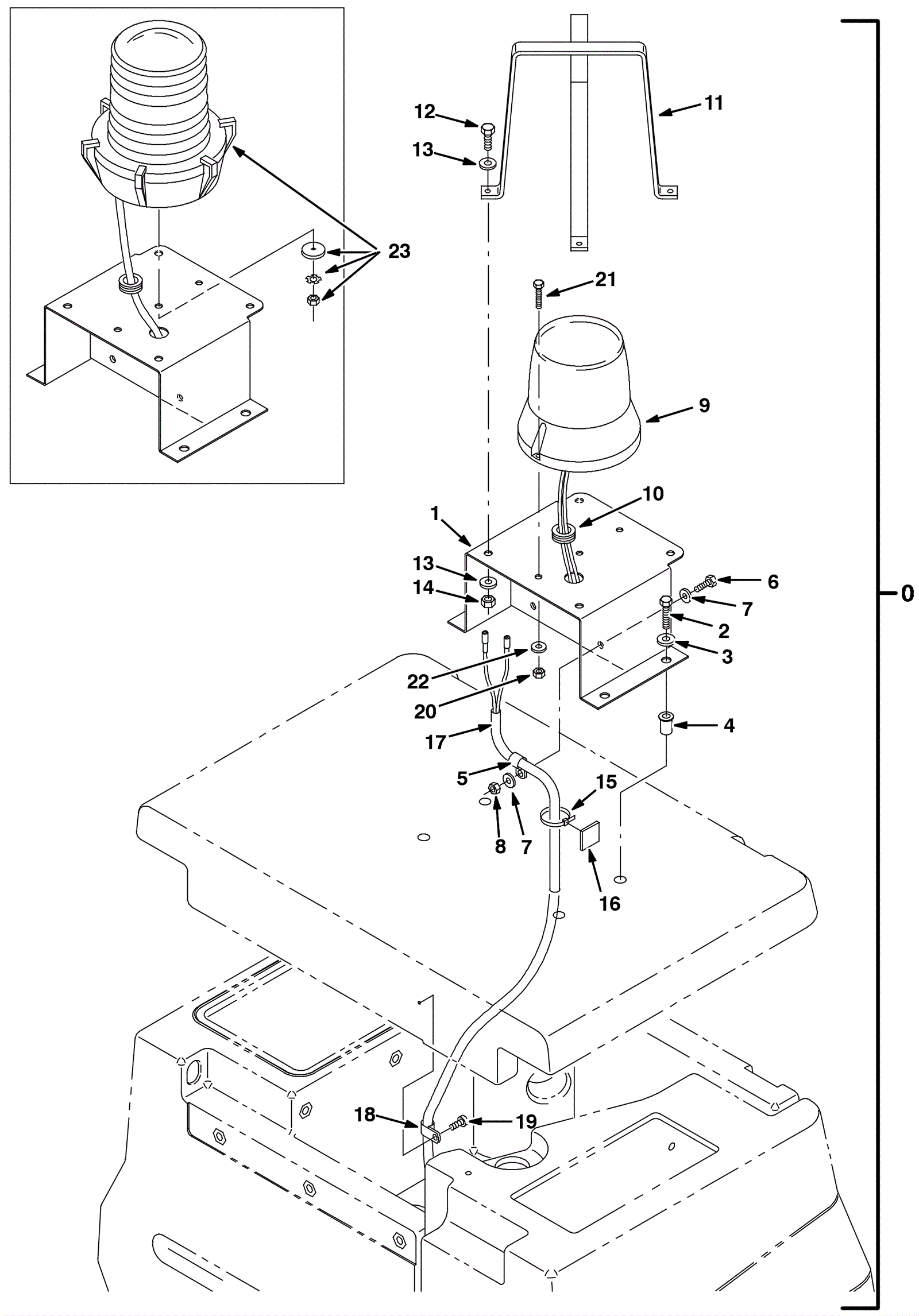

375-3120
|
Strobe light kit |
1 |
(includes 1-9c, 10-22) (before SN 00719) |
|
1 |
175-5414
|
Light bracket weldment |
1 |
|
|
2 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
4 |
175-5424
|
Nut 1/4-20 isolator wall thick |
4 |
|
|
5 |
175-3170
|
P clamp |
1 |
|
|
6 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
1 |
|
|
7 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
8 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
|
|
9a |
375-4398
|
LED strobe light (Tennant Industrial) |
1 |
(includes 9b-9c) (after SN 00718) |
|
9b |
275-4678
|
Bulb |
1 |
(after SN 00718) |
|
9c |
275-4675
|
Lens |
1 |
|
|
9d |
275-7186
|
Lens (red) (Tennant Industrial) |
1 |
(after SN 00718) (optional) |
|
9e |
275-7187
|
Lens (blue) (Tennant Industrial) |
1 |
(after SN 00718) (optional) |
|
10 |
175-5419
|
Grommet 5/8 |
1 |
|
|
11 |
175-5420
|
Revolving/flashing light guard weldment |
1 |
|
|
12 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
4 |
|
|
13 |
999-0016
|
Washer 1/4 flat plain finish |
8 |
|
|
14 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
15 |
175-2202
|
Nylon wire tie |
2 |
|
|
16 |
175-3233
|
Cable tie mount |
1 |
|
|
17 |
375-3119
|
Light harness |
1 |
|
|
18 |
175-5421
|
P clamp |
1 |
|
|
19 |
175-3223
|
Screw 12-16 x 1/2 pan head plastic |
1 |
|
|
20 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
(after SN 00718) |
|
21 |
175-0837
|
Bolt M5-.8 x 16mm hex head |
2 |
(after SN 00718) |
|
22 |
999-0006
|
Washer 3/16 flat zinc plated |
2 |
(after SN 00718) |
|
23a |
175-5426
|
Flashing lamp assembly |
1 |
(includes 23b-23c) (before SN 00719) |
|
23b |
175-5417
|
Lamp |
1 |
(before SN 00719) |
|
23c |
175-5427
|
Flashing light amber lens |
1 |
(before SN 00719) |
|
23d |
175-5428
|
Flashing light red lens |
1 |
(before SN 00719) (optional) |
|
23e |
175-5429
|
Flashing light blue lens |
1 |
(before SN 00719) (optional) |
|
