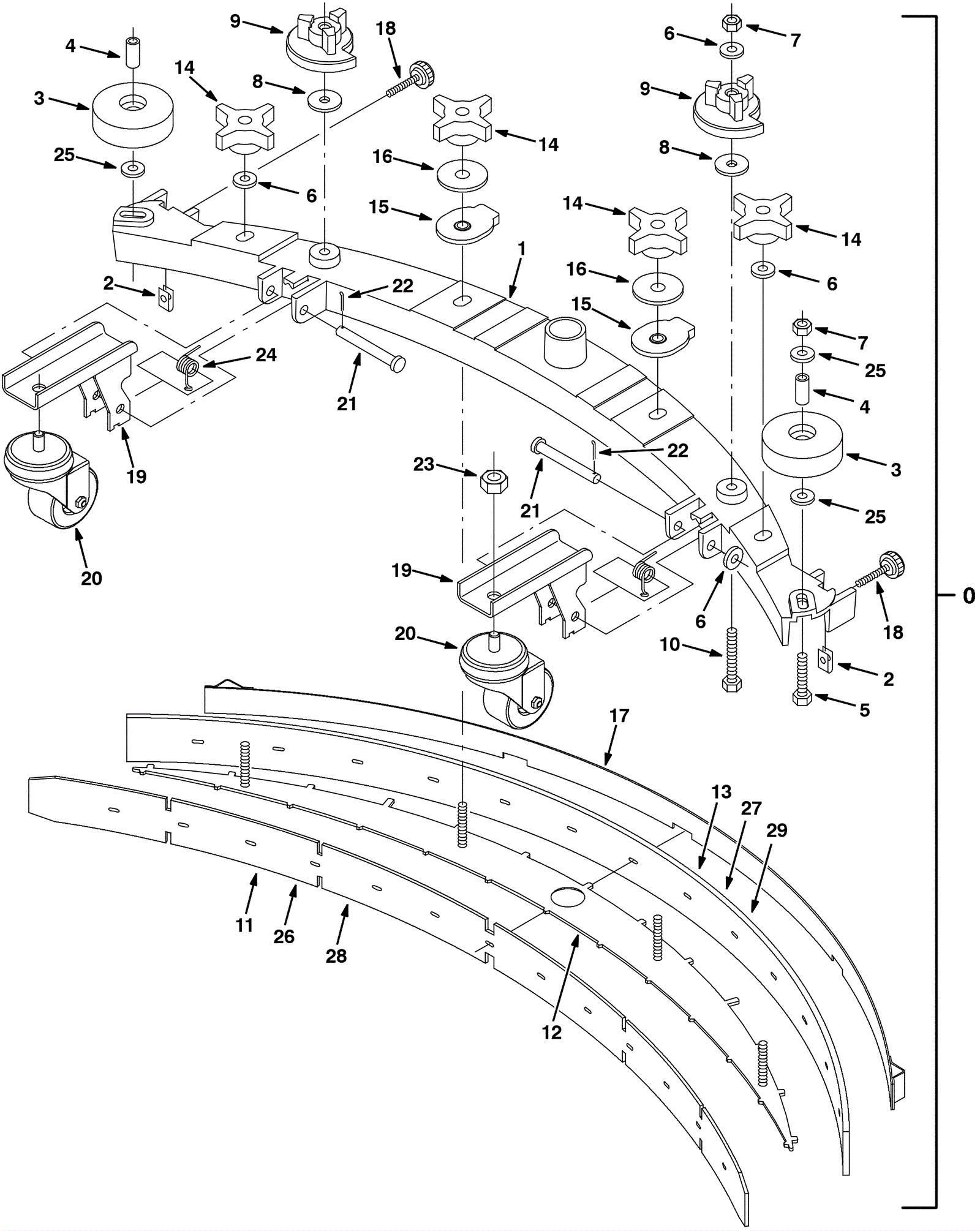

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-1561
|
Squeegee kit |
1 |
(includes 1-25) |
|
1 |
175-5443
|
Squeegee casting frame 32 inch |
1 |
|
|
2 |
175-2291
|
Nut 1/4-20 speed clip |
2 |
|
|
3 |
175-7919
|
Guide wheel |
2 |
|
|
4 |
175-2249
|
Sleeve |
1 |
|
|
5 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
6 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
6 |
|
|
7 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
8 |
175-2309
|
Washer |
2 |
|
|
9 |
175-2183
|
Adjustment cam |
2 |
|
|
10 |
999-0909
|
Bolt M8-1.25 x 70mm hex head stainless steel |
2 |
|
|
12 |
175-5444
|
Squeegee blade retainer plate 32 inch |
1 |
|
|
13 |
175-5381
|
Squeegee blade 32 inch linatex rear (red) |
1 |
|
|
14 |
175-2208
|
Plastic star knob |
4 |
|
|
15 |
175-3469
|
Squeegee mounting ring |
2 |
|
|
16 |
175-3470
|
Washer .53b 1.88d .12 steel plated |
2 |
|
|
17 |
175-5445
|
Squeegee retainer weldment |
1 |
|
|
18 |
175-2180
|
Knob |
2 |
|
|
19 |
175-3472
|
Squeegee wheel bracket weldment |
2 |
|
|
20 |
175-3473
|
2.5 inch caster wheel |
2 |
|
|
21 |
173-1595
|
Clevis pin |
2 |
|
|
22 |
175-6176
|
Cotter pin |
2 |
|
|
23 |
999-0202
|
Nut 1/2-13 hex plain finish |
2 |
|
|
24 |
175-2273
|
Torsion spring |
2 |
|
|
25 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
4 |
|
|
26a |
175-5382
|
Squeegee blade 32 inch kit urethane |
1 |
(includes 26b-27) |
|
26b |
675-9897
|
Squeegee blade 32 inch urethane front |
1 |
|
|
27 |
175-5384
|
Squeegee blade 32 inch urethane rear |
1 |
|
|
28a |
175-5385
|
Squeegee blade 32 in kit (rear gum rubber/front linatex) |
1 |
(includes 28b-29) |
|
29 |
175-3593
|
Squeegee blade 32 inch gum rubber rear (tan) |
1 |
|
|
