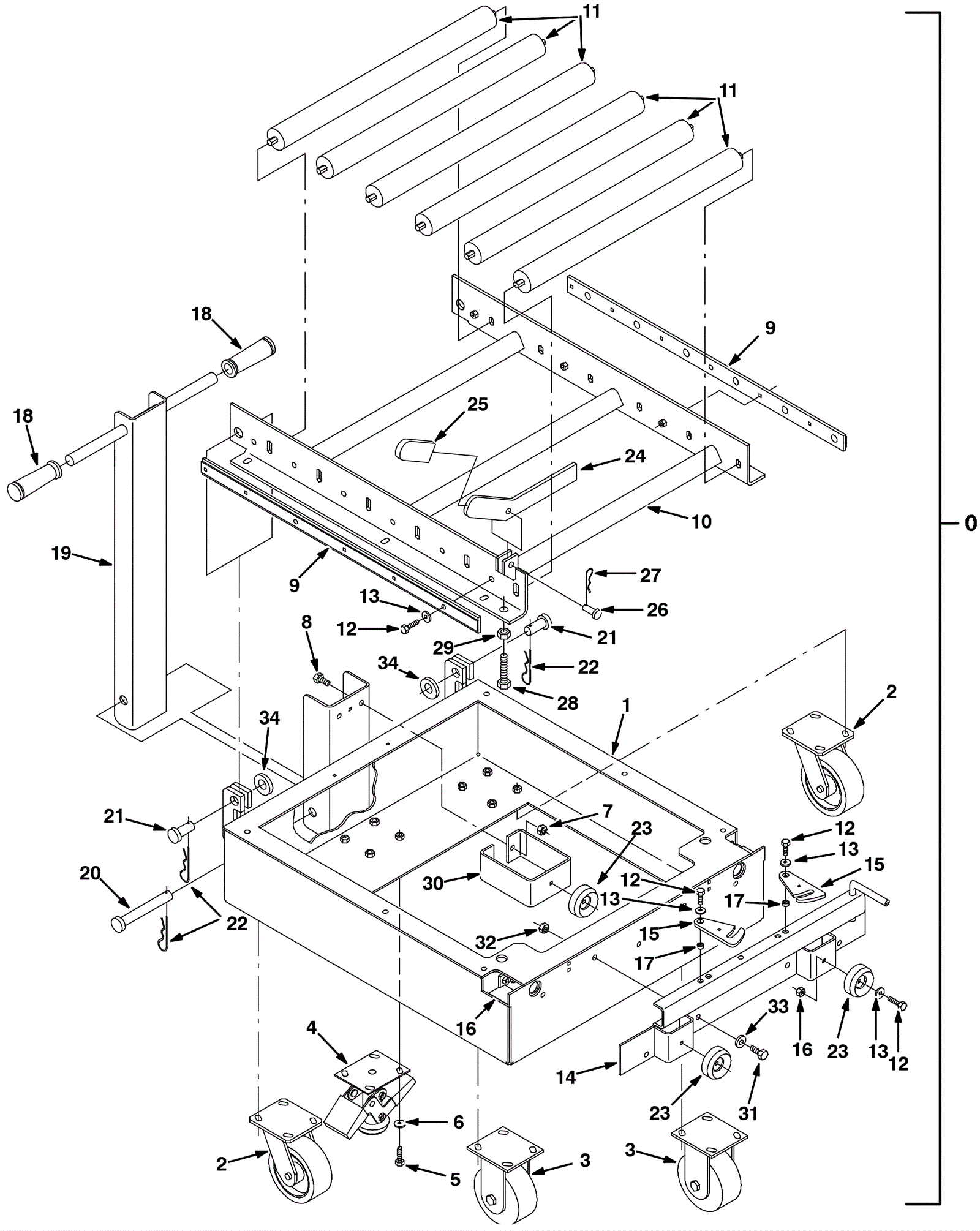

Rollout Battery Cart Assembly

#PartDescription ReqNotesAvailability
0 375-2605 Battery cart dolly (OBSOLETE) 1 (includes 1-34)
1 375-3112 Battery cart weldment 1
2 175-2100 5 inch caster wheel assembly (gray) 2
3 275-7218 5 inch rigid caster 2
4 275-0015 Floor lock 1
5 275-0033 Screw M10-1.5 x 30mm hex head 8.8 20
6 999-0032 Washer 3/8 USS flat plain finish 20
7 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
8 275-0025 Screw M10-1.5 x 25 hex head 8.8 2
9 275-0017 Roller shaft retainer 2
10 275-0018 Roller mounting frame weldment 1
11 275-0019 Steel roller assembly 6
12 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 17
13 999-0024 Washer 5/16 flat stainless steel 17
14 375-2606 Latch bracket (OBSOLETE) 1
15 375-3114 Latch 2
16 999-0471 Nut M8-1.25 nylon insert lock zinc plated 3
17 175-2263 Sleeve 2
18 675-9894 Handle grip 2
19 275-0024 Battery cart handle weldment 1
20 175-9742 Clevis pin 1
21 275-0027 Clevis pin 2
22 275-0028 Cotter hair pin 3
23 275-0029 Rubber bumper 3
24 275-0030 Battery stop flat arm 1
25 275-0031 Handle grip 1
26 275-0032 Clevis pin 1
27 175-5402 Cotter hair pin 1
28 275-0034 Screw M12-1.75 x 50 hex head fl 2
29 275-0035 Nut M12-1.75 hex standard 2
30 375-3115 Battery stop bracket 1
31 275-0025 Screw M10-1.5 x 25 hex head 8.8 4
32 999-1120 Nut M10-1.5 nylon insert lock stainless steel 4
33 999-0032 Washer 3/8 USS flat plain finish 4
34 375-3116 Washer (Tennant Industrial) 2
