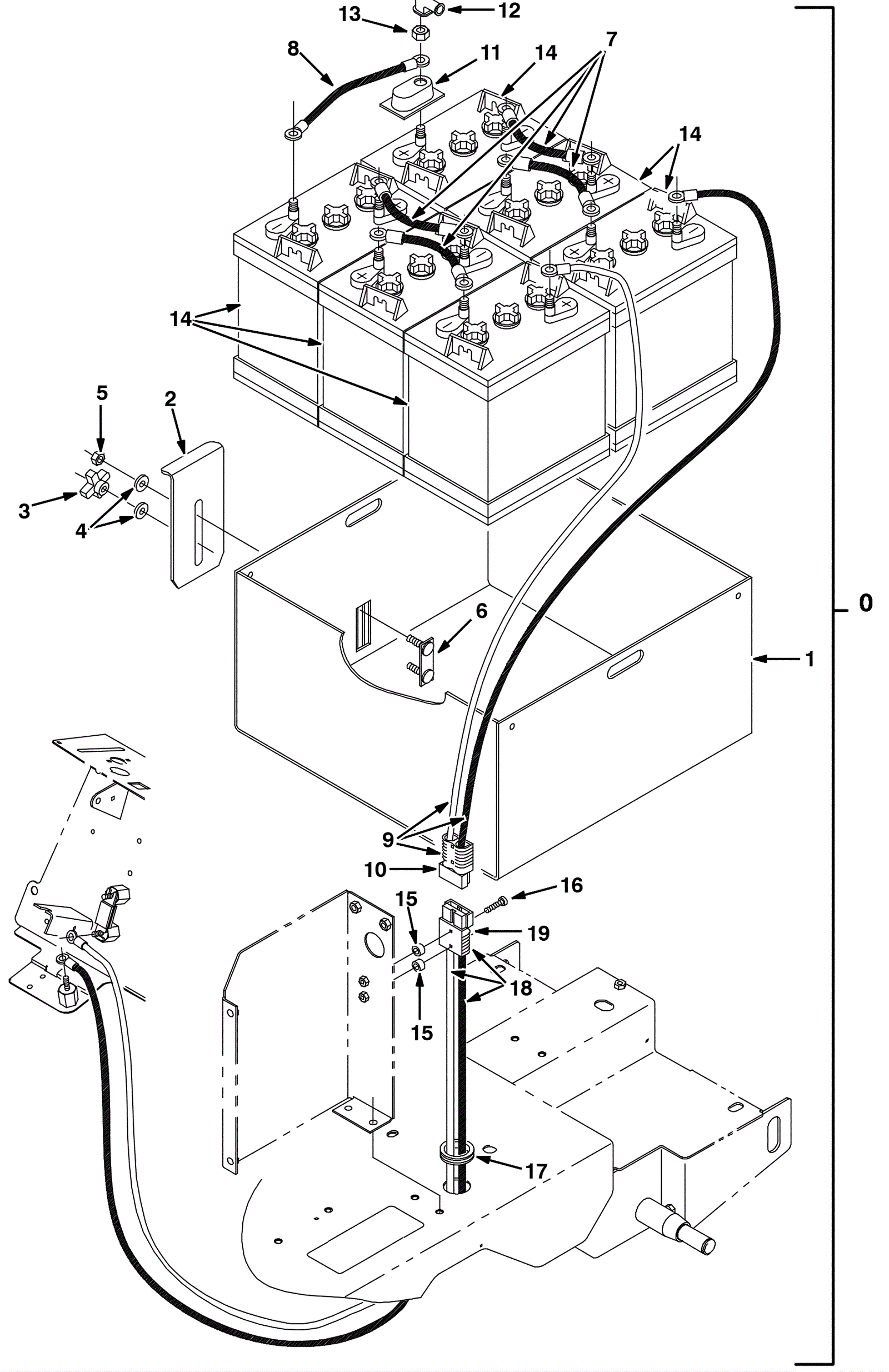

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-2604
|
Extra battery box (OBSOLETE) |
1 |
(includes 1-14) |
|
1 |
375-3103
|
Battery housing weldment |
1 |
|
|
2 |
375-3104
|
Latch |
1 |
|
|
3 |
375-3105
|
Star knob |
1 |
|
|
4 |
175-2305
|
Washer |
2 |
|
|
5 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
6 |
375-3106
|
2 stud weldment |
1 |
|
|
7 |
998-0010
|
Battery jumper cable - ring type (red) |
4 |
|
|
8 |
998-0010
|
Battery jumper cable - ring type (red) |
1 |
|
|
9 |
175-3441
|
Battery cable assembly |
1 |
(includes 10) |
|
10 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
11a |
275-5948
|
Battery terminal cover (black) |
12 |
|
|
11b |
175-2121
|
Battery terminal cover (clear) |
12 |
|
|
12 |
175-2122
|
90 degree cable boot |
12 |
|
|
13 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
12 |
|
|
14 |
162-0003
|
6V 225Ah wet battery (SNSR) |
6 |
|
|
15 |
175-2814
|
Spacer |
2 |
|
|
16 |
999-1325
|
Screw M6-1 x 40mm pan head stainless steel |
2 |
|
|
17 |
175-3446
|
Rubber grommet |
1 |
|
|
18 |
375-1526
|
Controller harness |
1 |
(includes 19) |
|
19 |
991-2112
|
175amp charger plug with pins (gray) SB175 |
1 |
|
|
