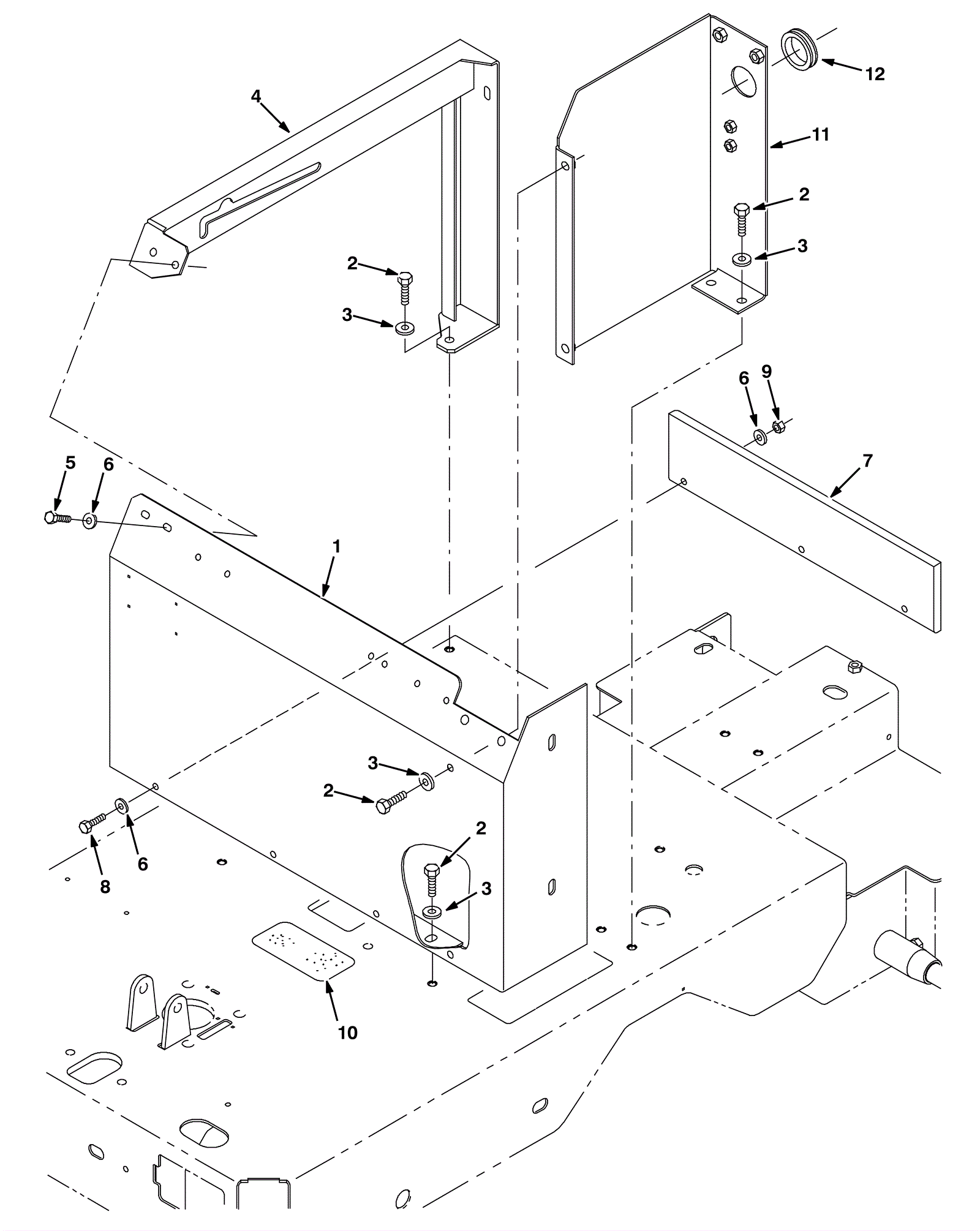

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-3107
|
Battery seat weldment |
1 |
|
|
2 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
8 |
|
|
3 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
4 |
375-3108
|
Seat brace |
1 |
|
|
5 |
999-0502
|
Bolt M6-1 x 20mm hex head full thread zinc |
2 |
|
|
6 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
7 |
375-3109
|
Seat support pad |
1 |
|
|
8 |
175-6758
|
Screw M6-1 x 30mm hex head |
3 |
|
|
9 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
3 |
|
|
10 |
375-3110
|
Non-skid tread |
1 |
|
|
11 |
375-3111
|
Housing lift tool |
1 |
|
|
12 |
175-3446
|
Rubber grommet |
1 |
|
|
