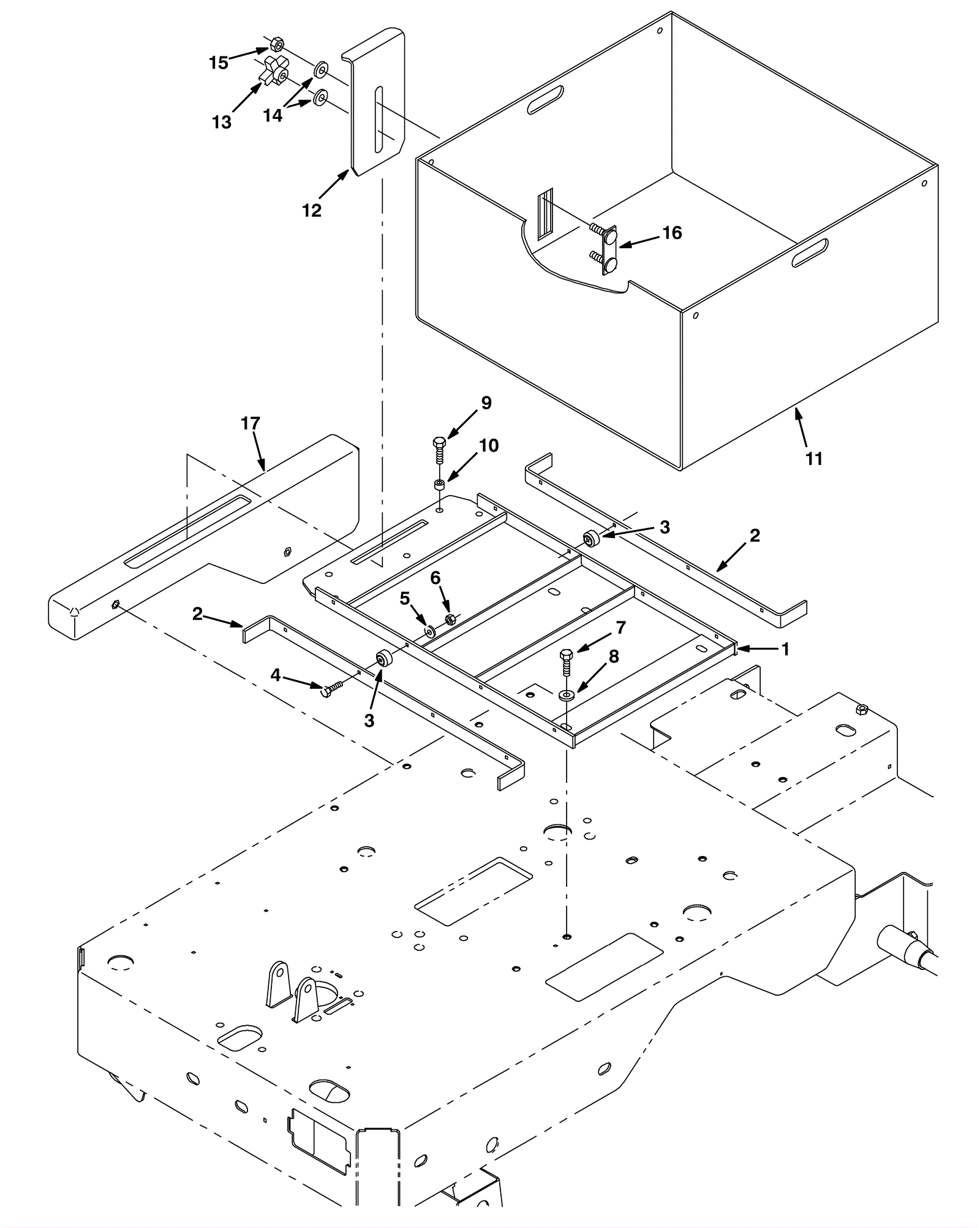

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-3101
|
Frame weldment |
1 |
|
|
2 |
375-3102
|
Battery angle bar |
2 |
|
|
3 |
275-0003
|
Bearing |
8 |
|
|
4 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
8 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
6 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
8 |
|
|
7 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
7 |
|
|
8 |
999-0024
|
Washer 5/16 flat stainless steel |
7 |
|
|
9 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
2 |
|
|
10 |
175-2263
|
Sleeve |
2 |
|
|
11 |
375-3103
|
Battery housing weldment |
1 |
|
|
12 |
375-3104
|
Latch |
1 |
|
|
13 |
375-3105
|
Star knob |
1 |
|
|
14 |
175-2305
|
Washer |
2 |
|
|
15 |
999-0513
|
Nut 3/8-16 nylon insert lock type NE stainless steel |
1 |
|
|
16 |
375-3106
|
2 stud weldment |
1 |
|
|
17 |
375-2602
|
Filler tank panel (OBSOLETE) |
1 |
|
|
