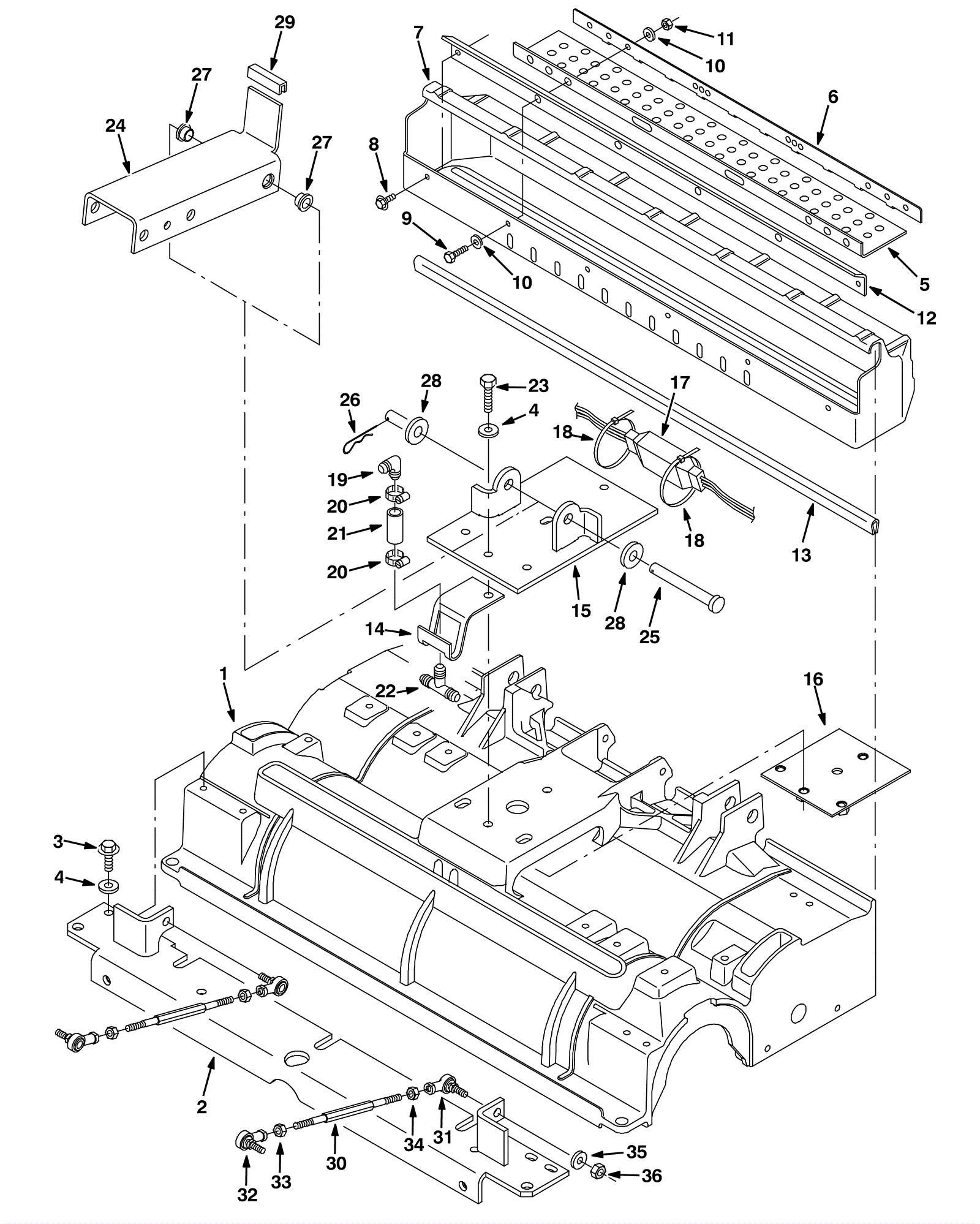

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-1211
|
28 inch (700mm) cylindrical housing |
1 |
|
|
2 |
175-5396
|
Lift tool weldment 28 inch |
1 |
|
|
3 |
175-2888
|
Bolt M8-1 1/4 x 25mm hex head |
4 |
|
|
4 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
5a |
175-2514
|
28 inch debris tray kit |
1 |
(includes 5b-12) |
|
5b |
175-2517
|
Skirt |
1 |
|
|
6 |
175-2399
|
Debris tray skirt |
1 |
|
|
7 |
375-1540
|
Debris tray |
1 |
|
|
8 |
175-3298
|
Bolt M6-1 x 12mm hex head |
2 |
|
|
9 |
999-1087
|
Bolt M6-1 x 25mm hex head stainless steel |
4 |
|
|
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
11 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
4 |
|
|
12 |
175-2516
|
28 inch debris tray lip |
1 |
|
|
13 |
175-2519
|
Channel |
1 |
|
|
14 |
175-2521
|
Hose guide bracket |
1 |
|
|
15 |
175-5397
|
Cylce lift tool plate weldment |
1 |
|
|
16 |
175-5398
|
Tool lift mounting plate |
1 |
|
|
17 |
175-2510
|
Cylindrical head wiring harness |
1 |
|
|
18 |
175-2202
|
Nylon wire tie |
2 |
|
|
19 |
175-5233
|
Plastic fitting |
1 |
|
|
20 |
175-6081
|
Hose clamp |
2 |
|
|
21 |
175-5399
|
Clear pvc hose 1/2 x 11/16 x 1 1/2 |
1 |
|
|
22 |
175-3329
|
Plastic tee fitting |
1 |
|
|
23 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
4 |
|
|
24a |
275-2444
|
Lift weldment |
1 |
(standard) |
|
24b |
375-3099
|
Bracket |
1 |
(rollout) |
|
25 |
175-5401
|
Clevis pin 1/2 x 4 1/2 |
1 |
|
|
26 |
175-5402
|
Cotter hair pin |
1 |
|
|
27 |
175-3335
|
Flanged bushing |
4 |
(qty 2 for rollout) |
|
28 |
999-0114
|
Washer 1/2 SAE flat |
2 |
|
|
29 |
175-3336
|
Rubber trim molding |
1 |
|
|
30 |
175-3319
|
Threaded rod |
2 |
|
|
31 |
175-3320
|
Rod end left side |
2 |
|
|
32 |
175-3321
|
Rod end right side |
2 |
|
|
33 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
2 |
|
|
34 |
999-0319
|
Nut 3/8-24 hex left hand plain finish |
2 |
|
|
35 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
36 |
175-3322
|
Nut 3/8-24 hex lock |
2 |
|
|
