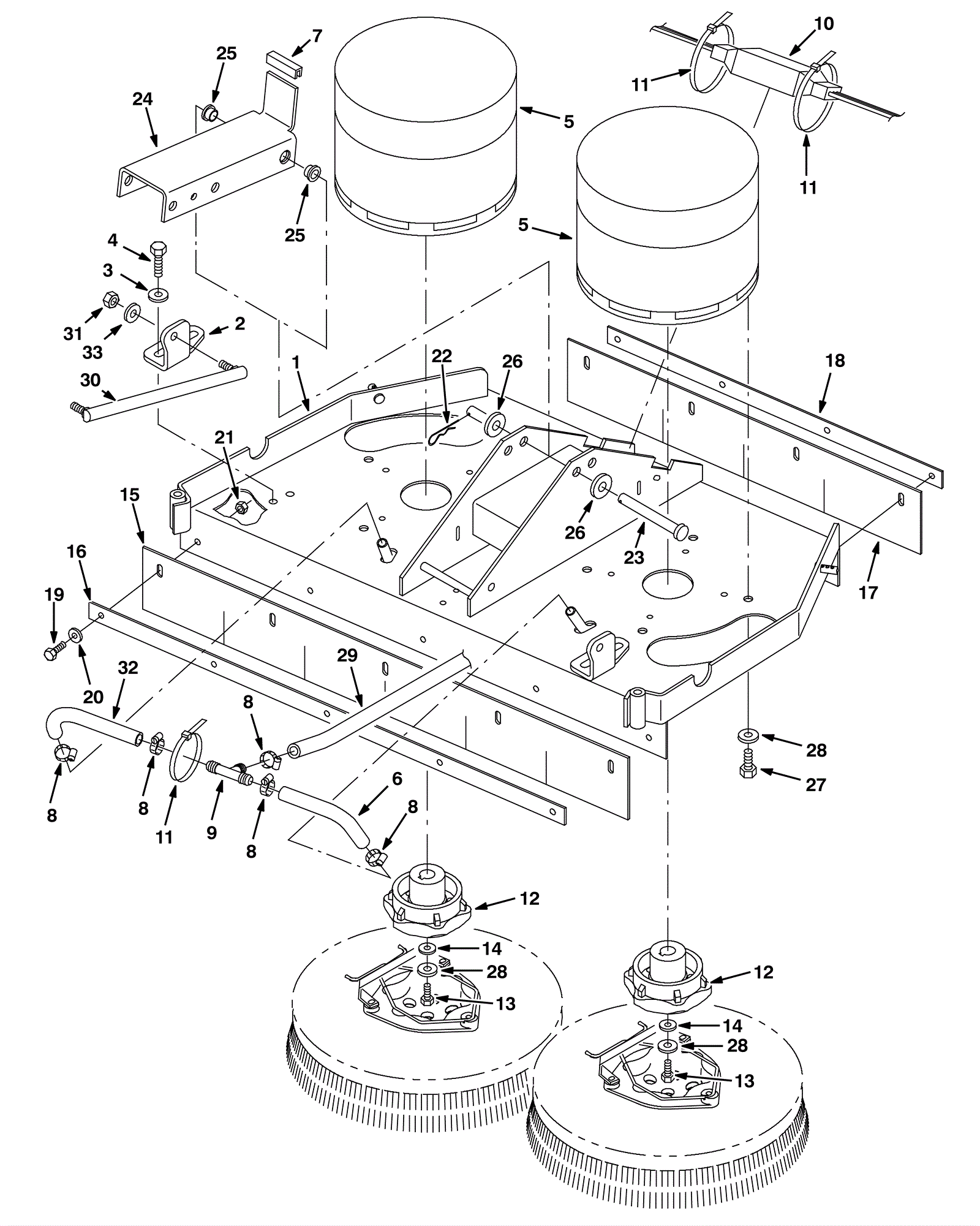

Rollout Battery Scrub Head Drive Motor Assembly - Disk - After SN 01139

#PartDescription ReqNotesAvailability
1a 275-5340 28 inch head kit (OBSOLETE) 1 (includes 2-4) (after SN 01139)
1b 275-5351 32 inch head kit 1 (includes 2-4) (after SN 01139)
2 175-4988 Linkage bracket 2 (after SN 01139)
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4 (after SN 01139)
4 175-4989 Screw 10 x 1 1/2 x 20 stainless steel 4 (after SN 01139)
5 175-3325 Brush motor kit 2
6 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 1
7 175-3336 Rubber trim molding 1
8 175-6081 Hose clamp 5
9 175-3329 Plastic tee fitting 1
10 175-2440 Disk head wiring harness 1
11 175-2226 Nylon wire tie 3
12 175-9525 Brush drive hub 2
13 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
14 999-1407 Washer 5/16 belleville 2
15a 175-3330 Front skirt 28 inch 1 (28 inch)
15b 175-5345 Front skirt 1 (32 inch)
16a 175-3331 28 inch (700mm) front skirt retainer strap 1 (28 inch)
16b 175-5346 Front skirt retainer strap 1 (32 inch)
17a 175-3332 Rear skirt 28 inch 1 (28 inch)
17b 175-5347 Rear skirt 1 (32 inch)
18a 175-3333 28 inch (700mm) rear skirt retainer strap 1 (28 inch)
18b 175-5348 Rear skirt retainer strap 1 (32 inch)
19 999-1312 Screw M6-1 x 20mm hex head stainless steel 9 (qty 10 for 32 inch)
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 9 (qty 10 for 32 inch)
21 999-0497 Nut M6-1 nylon insert lock stainless steel 9 (qty 10 for 32 inch)
22 175-2106 Cotter hair pin 1
23 175-2116 Clevis pin 1
24 375-3099 Bracket 1
25 175-3335 Flanged bushing 2
26 999-0114 Washer 1/2 SAE flat 2
27 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 8
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 10 (qty 8 for 32 inch)
29 275-1192 Hose 1/2 x 3 foot (Tennant Industrial) 1
30 175-5392 Balljoint link 10 x 1 1/2 2 (after SN 01139)
31 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2 (after SN 01139)
32 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 1
33 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2 (after SN 01139)
