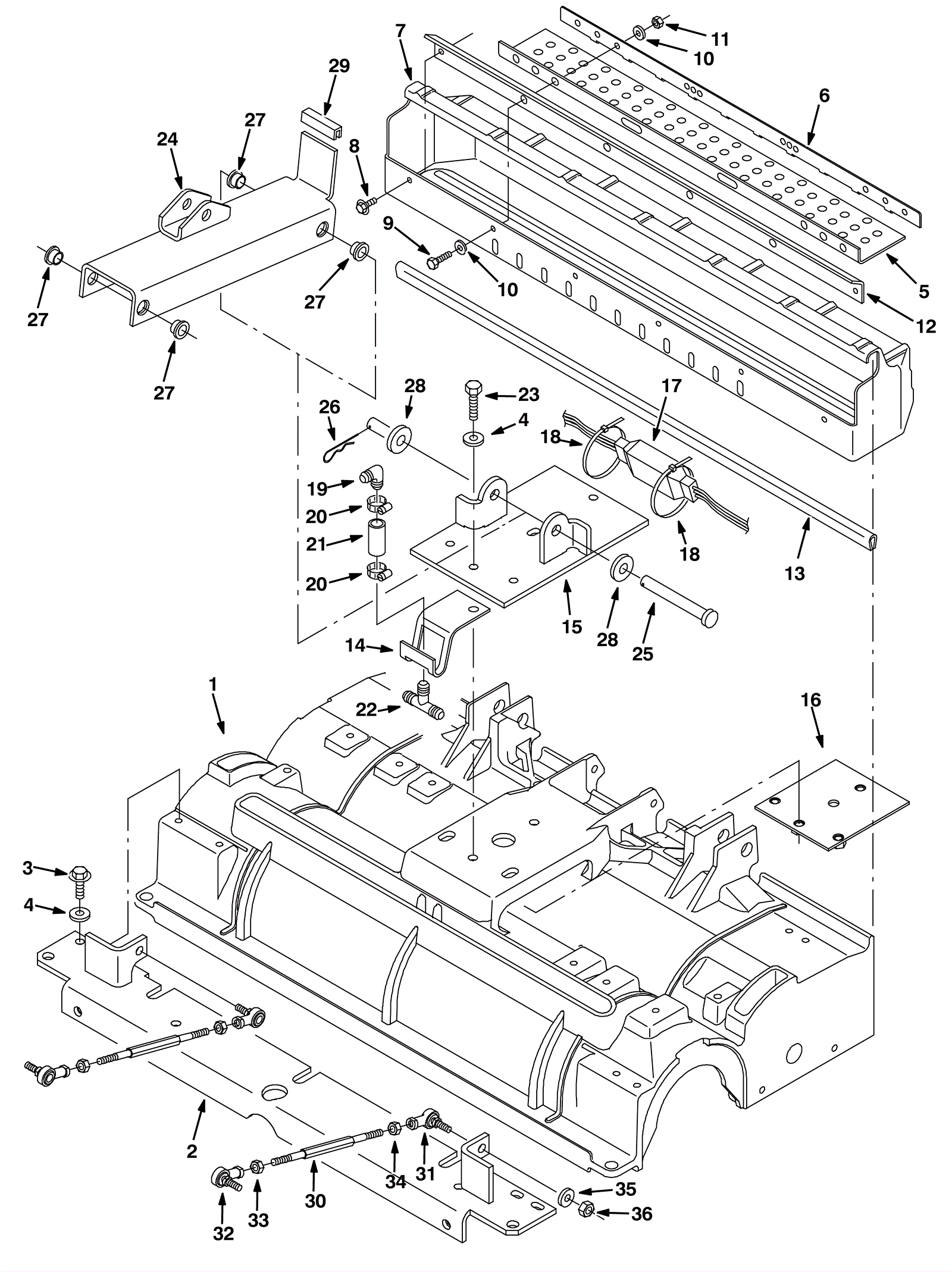

7100 Scrub Head Frame Assembly - 32 inch - Cylindrical

#PartDescriptionPriceReqNotesAvailability
2 175-5404 32 in cylindrical lift tool angle weldment $459.70 1 usually ships 1-5 days
3 175-2888 Bolt M8-1 1/4 x 25mm hex head $3.60 4 usually ships 5-16 days
4 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
5a 175-2504 32 inch debris tray kit $344.50 1 (includes 5b-12) usually ships 5-16 days
5 175-2517 Skirt $31.70 1 usually ships 5-16 days
6 175-2399 Debris tray skirt $39.40 1 usually ships 5-16 days
7 375-3100 Debris tray $210.90 1 usually ships 5-16 days
8 175-3298 Bolt M6-1 x 12mm hex head $4.06 2 ships same day
9 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
11 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
12 175-2506 32 inch debris tray lip $33.90 1 usually ships 1-5 days
13 175-2507 Channel $26.30 1 usually ships 1-5 days
14 175-2521 Hose guide bracket $20.60 1 usually ships 5-16 days
15 175-5397 Cylce lift tool plate weldment $109.10 1 usually ships 1-5 days
16 175-5398 Tool lift mounting plate $32.40 1 usually ships 5-16 days
17 175-2510 Cylindrical head wiring harness $125.80 1 usually ships 5-16 days
18 175-2202 Nylon wire tie $3.00 2 ships same day
19 175-5233 Plastic fitting $6.70 1 usually ships 5-16 days
20 175-6081 Hose clamp $3.36 2 ships same day
21 175-5399 Clear pvc hose 1/2 x 11/16 x 1 1/2 $3.60 1 usually ships 5-16 days
22 175-3329 Plastic tee fitting $5.30 1 usually ships 5-16 days
23 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
24a 275-2444 Lift weldment $100.60 1 (standard) usually ships 1-5 days
24b 375-3099 Bracket $241.10 1 (rollout) usually ships 5-16 days
25 175-5401 Clevis pin 1/2 x 4 1/2 $4.50 1 usually ships 5-16 days
26 175-5402 Cotter hair pin $7.20 1 usually ships 1-5 days
27 175-3335 Flanged bushing $14.00 4 (qty 2 for rollout) usually ships 1-5 days
28 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
29 175-3336 Rubber trim molding $15.90 1 usually ships 1-5 days
30 175-3319 Threaded rod $55.70 2 ships same day
31 175-3320 Rod end left side $38.00 2 usually ships 5-16 days
32 175-3321 Rod end right side $38.00 2 usually ships 5-16 days
33 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
34 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 ships same day
35 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
36 175-3322 Nut 3/8-24 hex lock $4.90 2 usually ships 5-16 days
