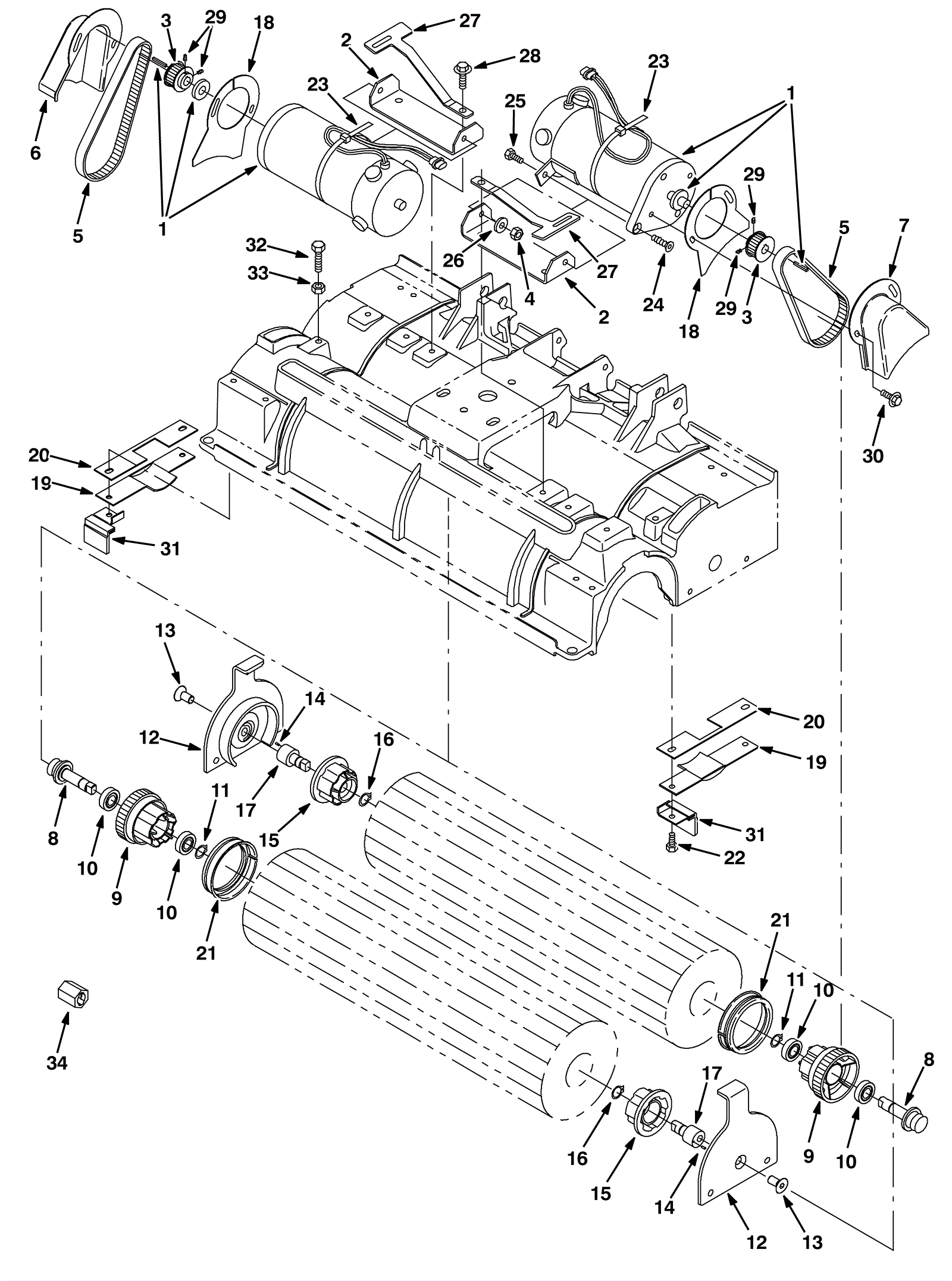

7100 Scrub Head Drive Motor Assembly - 32 inch - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 175-2056 Brush motor assembly $1,494.47 2 ships same day
2 175-2464 Mounting motor bracket $17.80 2 usually ships 5-16 days
3 175-2465 Drive sprocket $61.70 2 usually ships 5-16 days
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
5 175-2034 Cogged drive belt $93.40 2 usually ships 5-16 days
6 175-2490 Right belt guard $53.50 1 usually ships 5-16 days
7 175-2491 Left belt guard $53.50 1 ships same day
8a 175-2468 Brush drive plug assembly $195.30 2 (includes 8b-11) usually ships 5-16 days
8b 175-2469 Shaft drive plug $87.00 1 ships same day
9 175-2470 Brush drive plug $91.20 1 ships same day
10 175-2471 Ball bearing $17.10 2 ships same day
11 175-2472 Retaining ring $2.20 1 usually ships 5-16 days
12a 275-6281 Cylindrical head door assembly $122.90 2 (includes 12b-17) usually ships 5-16 days
12b 175-2474 Brush door $48.10 2 ships same day
13 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok $3.60 2 usually ships 5-16 days
14a 175-2475 Idler plug assembly $97.60 2 (includes 14b-17) usually ships 5-16 days
14b 175-2477 Roll pin $2.20 1 usually ships 5-16 days
15 175-2478 Brush idler plug $25.70 1 ships same day
16 175-2472 Retaining ring $2.20 1 usually ships 5-16 days
17 175-2476 Idler plug shaft $66.50 1 usually ships 5-16 days
18 175-2489 Belt shield $11.70 2 usually ships 5-16 days
19 175-2487 Shield bracket $27.51 2 usually ships 5-16 days
20 175-2488 Shield gasket $3.90 2 usually ships 5-16 days
21 175-2495 Seal ring $51.40 2 ships same day
22 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
23 175-2226 Nylon wire tie $3.00 2 usually ships 5-16 days
24 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
25 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
26 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
27 175-2482 Door spring $23.70 2 usually ships 5-16 days
28 175-2888 Bolt M8-1 1/4 x 25mm hex head $3.60 4 usually ships 5-16 days
29 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
30 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
31 175-2486 Water deflector $37.90 2 usually ships 5-16 days
32 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
33 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
34 275-1209 Shaft removal tool $275.30 1 usually ships 5-16 days
