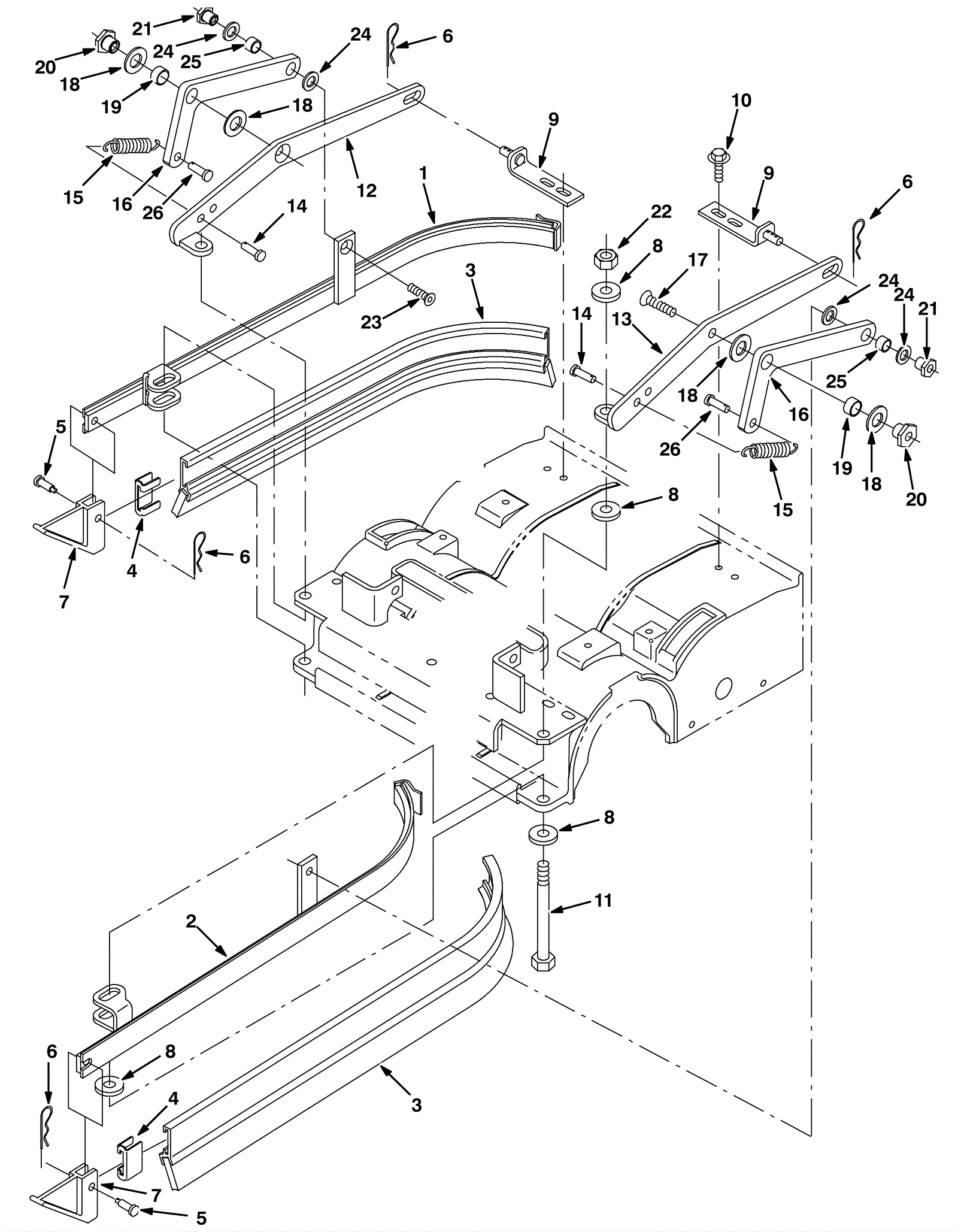

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-5540
|
Right hand squeegee frame weldment |
1 |
|
|
2 |
175-5541
|
Left hand squeegee frame weldment |
1 |
|
|
3a |
175-5389
|
Side squeegee blade |
2 |
|
|
3b |
991-8619
|
SQUEEGEE ASSY, SIDE [LINATEX] |
2 |
(NON-OEM) |
|
4 |
175-3357
|
Squeegee blade retainer |
2 |
|
|
5 |
175-3351
|
Clevis pin |
2 |
|
|
6 |
175-2117
|
Cotter pin |
4 |
|
|
7 |
475-3313
|
GUIDE, SQGE, SIDE, YELLOW |
2 |
|
|
9 |
175-5408
|
Squeegee side stop angle weldment cylindrical |
2 |
|
|
10 |
175-2888
|
Bolt M8-1 1/4 x 25mm hex head |
4 |
|
|
11 |
275-4662
|
Screw 1/2-13 x 5 1/2 hex head |
2 |
|
|
12 |
175-5410
|
Squeegee link mounting arm right cylindrical |
1 |
|
|
13 |
175-5411
|
Squeegee link mounting arm left cylindrical |
1 |
|
|
14 |
175-3351
|
Clevis pin |
2 |
|
|
15 |
175-3345
|
Extension spring |
2 |
|
|
16 |
175-3348
|
Bell crank |
2 |
|
|
17 |
175-5412
|
Screw M10-1.5 x 20mm flat stainless steel |
2 |
|
|
18 |
175-3347
|
Washer .61 thrust |
4 |
|
|
19 |
175-3349
|
Sleeved bushing |
2 |
|
|
20 |
175-3352
|
T-nut M10-1.5mm |
2 |
|
|
21 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
2 |
|
|
22 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
2 |
|
|
23 |
999-1324
|
Screw M8-1.25 x 20mm flat head stainless steel |
2 |
|
|
24 |
175-3354
|
Thrust washer |
4 |
|
|
25 |
175-3355
|
Sleeved bushing |
2 |
|
|
26 |
175-3344
|
Clevis pin |
2 |
|
|
