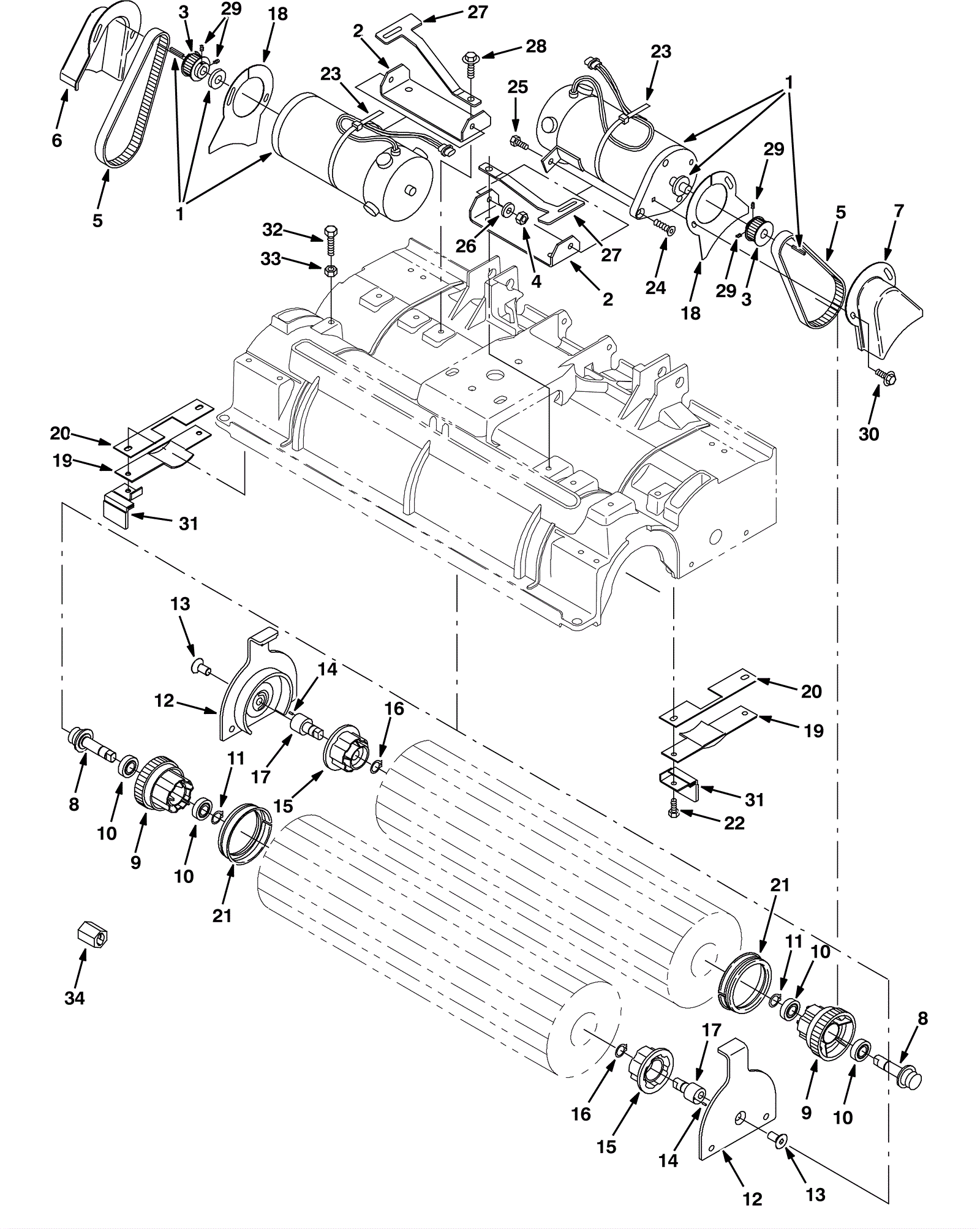

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2056
|
Brush motor assembly |
2 |
|
|
2 |
175-2464
|
Mounting motor bracket |
2 |
|
|
3 |
775-0474
|
Drive sprocket |
2 |
|
|
4 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
5 |
175-2034
|
Cogged drive belt |
2 |
|
|
6 |
175-2490
|
Right belt guard |
1 |
|
|
7 |
175-2491
|
Left belt guard |
1 |
|
|
8a |
175-2468
|
Brush drive plug assembly |
2 |
(includes 8b-11) |
|
8b |
175-2469
|
Shaft drive plug |
1 |
|
|
9 |
175-2470
|
Brush drive plug |
1 |
|
|
10 |
175-2471
|
Ball bearing |
2 |
|
|
11 |
175-2472
|
Retaining ring |
1 |
|
|
12a |
275-6281
|
Cylindrical head door assembly |
2 |
(includes 12b-17) |
|
12b |
175-2474
|
Brush door |
2 |
|
|
13 |
175-2863
|
Screw M10-1.5 x 20mm flat head stainless steel nylok |
2 |
|
|
14a |
175-2475
|
Idler plug assembly |
2 |
(includes 14b-17) |
|
14b |
175-2477
|
Roll pin |
1 |
|
|
15 |
175-2478
|
Brush idler plug |
1 |
|
|
16 |
175-2472
|
Retaining ring |
1 |
|
|
17 |
175-2476
|
Idler plug shaft |
1 |
|
|
18 |
175-2489
|
Belt shield |
2 |
|
|
19 |
175-2487
|
Shield bracket |
2 |
|
|
20 |
175-2488
|
Shield gasket |
2 |
|
|
21 |
175-2495
|
Seal ring |
2 |
|
|
22 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
4 |
|
|
23 |
175-2226
|
Nylon wire tie |
2 |
|
|
24 |
999-0770
|
Screw M8-1.25 x 30mm flat head socket stainless steel |
2 |
|
|
25 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
26 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
27 |
175-2482
|
Door spring |
2 |
|
|
28 |
175-2888
|
Bolt M8-1 1/4 x 25mm hex head |
4 |
|
|
29 |
999-0431
|
Screw 8-32 x 1/4 set socket cup point alloy plain finish |
4 |
|
|
30 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
31 |
175-2486
|
Water deflector |
2 |
|
|
32 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
33 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
34 |
275-1209
|
Shaft removal tool |
1 |
|
|
