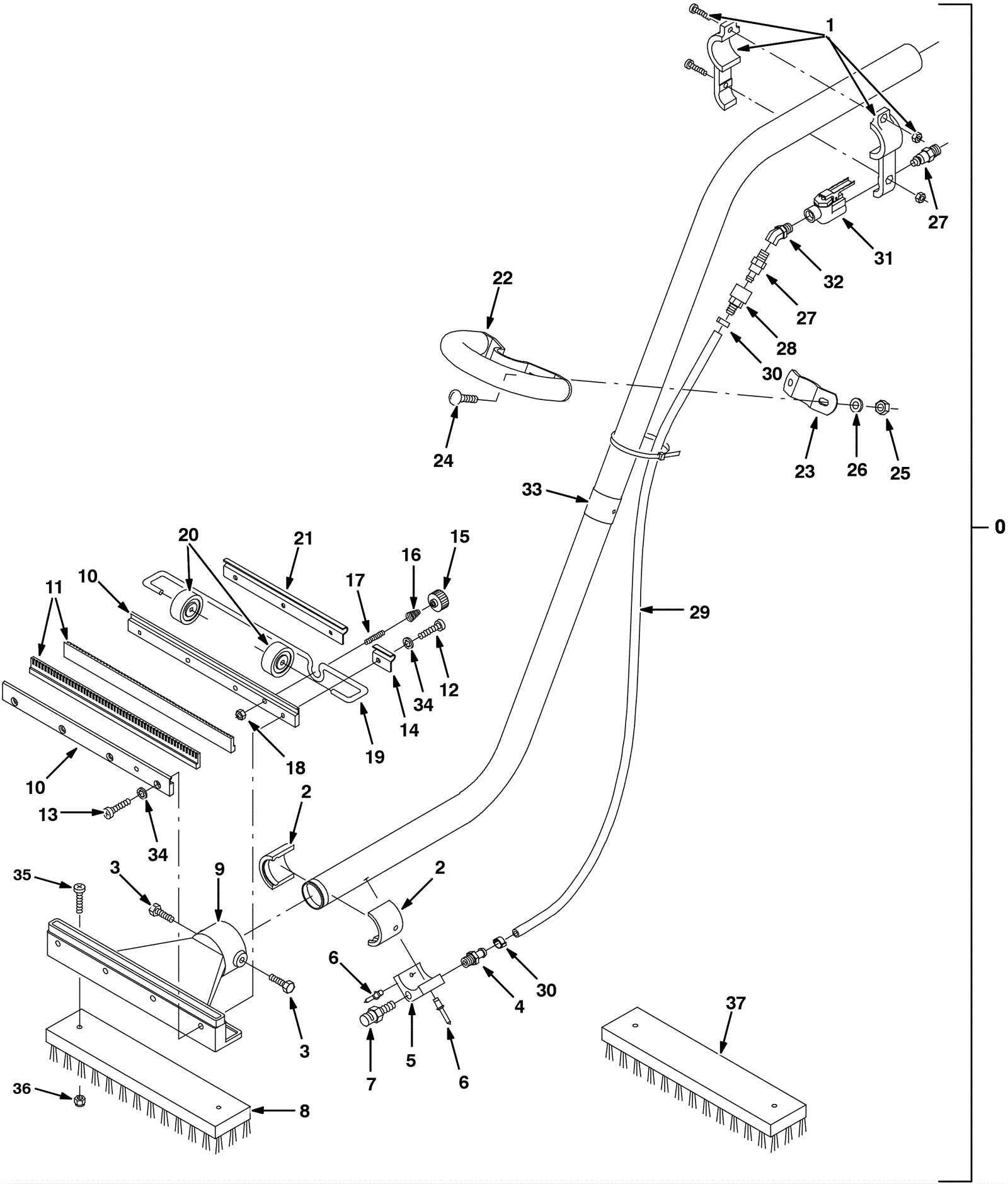

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-1532
|
Wand assembly |
1 |
(Includes 1-34) |
|
1 |
175-6380
|
Valve mounting bracket |
1 |
|
|
2 |
175-6353
|
Head and wand adapter |
2 |
|
|
3 |
999-0644
|
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
|
4 |
375-1533
|
Fitting |
1 |
|
|
5 |
375-1534
|
Nozzle spray adapter |
1 |
|
|
6 |
275-3075
|
Pop rivet |
2 |
|
|
7 |
175-6356
|
Spray nozzle |
1 |
|
|
8 |
175-6357
|
Wand attachment brush |
1 |
|
|
9 |
175-6358
|
Wand head (OBSOLETE) |
1 |
|
|
10 |
175-6361
|
Squeegee blade retainer |
2 |
|
|
11 |
175-6362
|
Squeegee blade 17 inch |
2 |
|
|
12 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
4 |
|
|
13 |
999-1090
|
Screw M5-.8 x 10mm pan head phillips zinc plated |
4 |
|
|
14 |
175-6363
|
Axle bracket |
1 |
|
|
15 |
175-1384
|
Thumb nut |
1 |
|
|
16 |
175-5810
|
Conical compression spring |
1 |
|
|
17 |
175-6366
|
Adjustment stud |
1 |
|
|
18 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
|
|
19 |
175-6368
|
Axle |
1 |
|
|
20 |
175-6369
|
Wheel (rubber) |
2 |
|
|
21 |
175-6370
|
Axle bracket |
1 |
|
|
22 |
175-6371
|
Wand handle |
1 |
|
|
23 |
175-6373
|
Handle bracket |
1 |
|
|
24 |
999-0963
|
Bolt 1/4-20 x 3/4 carriage head stainless steel |
2 |
|
|
25 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
26 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
27 |
175-6374
|
Male quick connect plug |
2 |
|
|
28 |
175-6350
|
Quick connect female connector |
1 |
|
|
29 |
175-6377
|
Solution hose |
1 |
|
|
30 |
175-6378
|
Hose clamp |
2 |
|
|
31 |
175-1683
|
Water control valve |
1 |
|
|
32 |
275-0330
|
45 degree elbow hydraulic fitting |
1 |
|
|
33 |
375-1535
|
Wand |
1 |
|
|
34 |
999-1026
|
Washer #10 internal lock stainless steel |
8 |
|
|
35 |
175-5812
|
Screw 4 x 30 flat phillips |
1 |
|
|
36 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
1 |
|
|
37 |
996-1269
|
Abrasive power wand brush with fastener |
1 |
|
|
