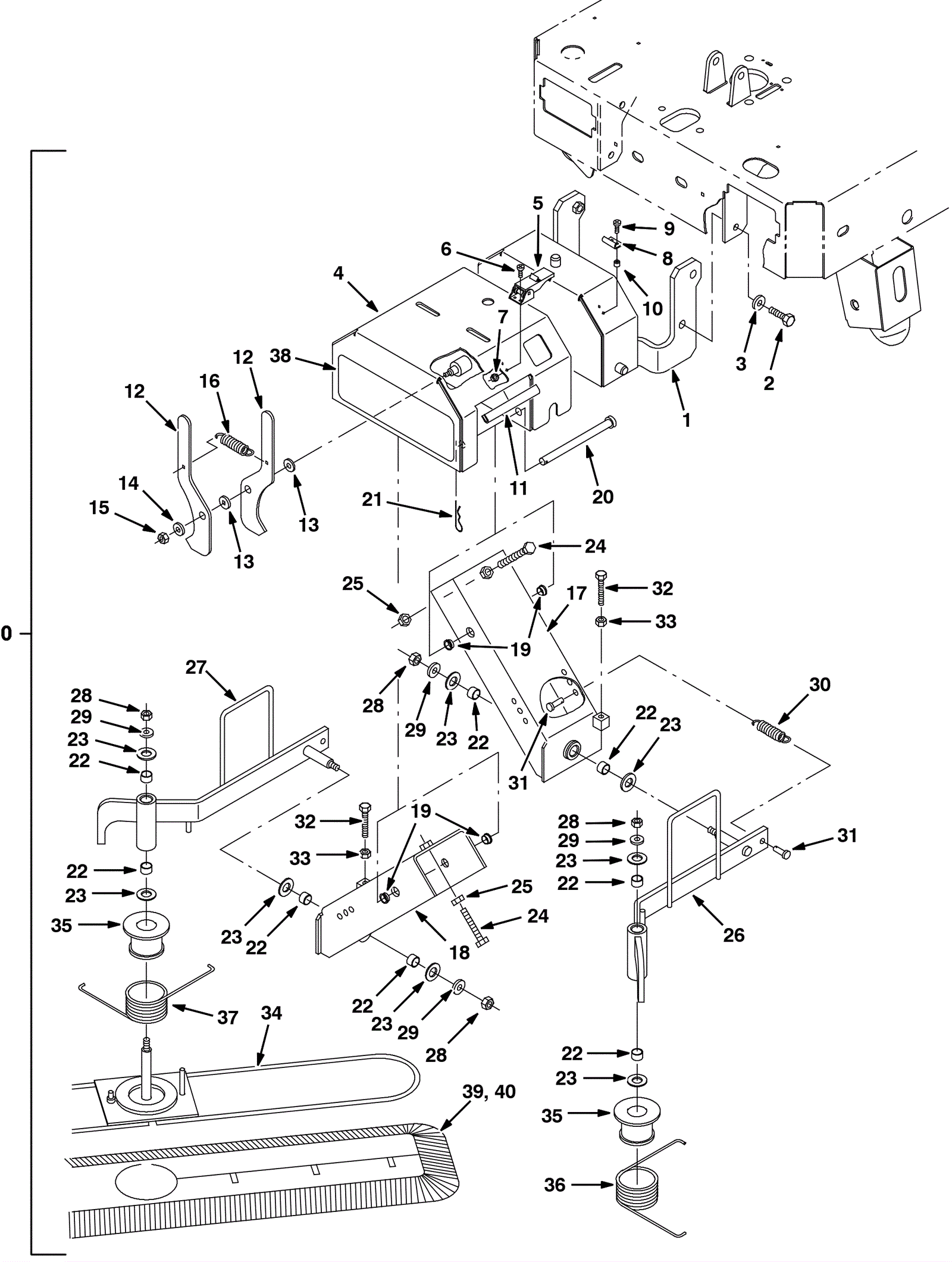

Quick Mop Assembly

#PartDescription ReqNotesAvailability
0 175-5321 V-mop kit (OBSOLETE) 1 (Includes 1-39)
1 175-5322 V-mop bumper weldment 1
2 999-0246 Bolt M10-1.5 x 35mm hex head full thread 4
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 4
4 175-5323 Quick-mop housing weldment 1
5 175-5324 Door latch 2
6 999-0534 Screw M4-.7 x 10mm pan head slotted zinc 4
7 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
8 175-5325 Keeper bracket 2
9 175-5326 Screw M4-.7 x 20mm pan head phillips stainless steel 4
10 175-5327 Spacer 4
11 175-5328 Pvc trim molding 5/64-7/64 (OBSOLETE) 2
12 175-5329 Latch plate 2
13 175-3354 Thrust washer 2
14 999-0024 Washer 5/16 flat stainless steel 1
15 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
16 175-0770 Extension spring 1
17 175-5330 Left lift channel weldment 1
18 175-5331 Right lift channel weldment 1
19 175-3335 Flanged bushing 4
20 175-5332 Clevis pin 1/2 x 6 2
21 175-2106 Cotter hair pin 2
22 175-5333 Sleeve bushing 8
23 175-3347 Washer .61 thrust 8
24 175-5334 Screw M10 x 1.5 x 90mm hex 2
25 999-0767 Nut M10-1.5 hex coarse thread 2
26 175-5335 Left mop lift arm weldment 1
27 175-5336 Right mop lift arm weldment 1
28 999-1120 Nut M10-1.5 nylon insert lock stainless steel 4
29 999-0032 Washer 3/8 USS flat plain finish 4
30 175-3345 Extension spring 2
31 175-3344 Clevis pin 4
32 175-5337 Screw M8 x 1.25 x 60mm hex 2
33 999-0579 Nut M8-1.25 hex coarse thread zinc 2
34 175-5338 V-mop frame weldment 2
35 175-5339 Spring spacer 2
36 175-5340 Torsion spring 1
37 175-5340 Torsion spring 1
38 175-5341 Quick mop label 1
39 175-5342 Dust mop 2
40 175-5343 Industrial dust mop (OBSOLETE) 1 (optional)
