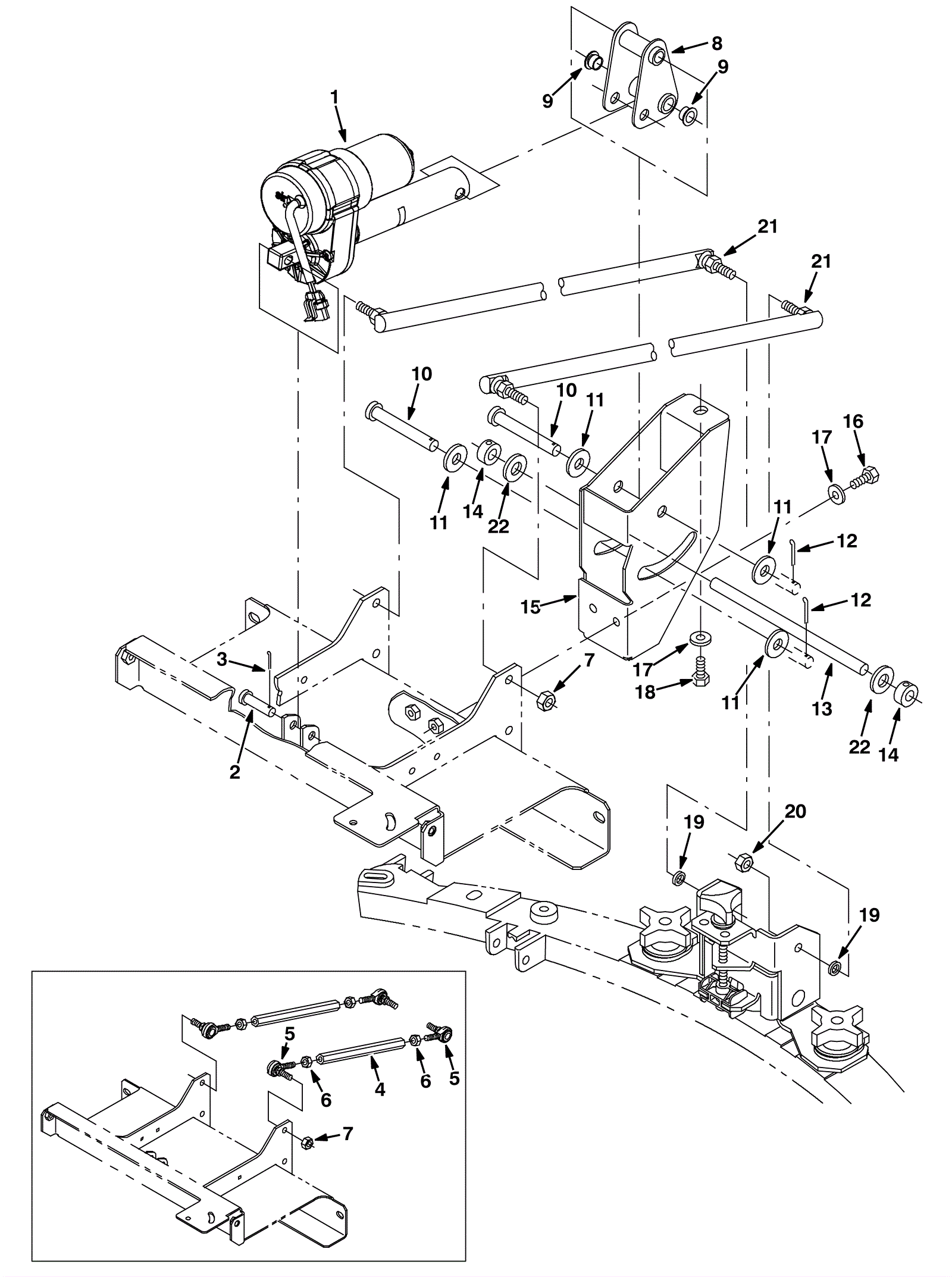

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7397
|
Actuator |
1 |
|
|
2 |
175-2111
|
Clevis pin |
1 |
|
|
3 |
175-6176
|
Cotter pin |
1 |
|
|
4 |
175-3448
|
Squeegee link upper tapped |
2 |
(before SN 01140) |
|
5 |
175-3449
|
Rod-end 3/8-24 |
4 |
(before SN 01140) |
|
6 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
4 |
(before SN 01140) |
|
7 |
175-3322
|
Nut 3/8-24 hex lock |
2 |
|
|
8 |
175-3450
|
Actuator pivot weldment |
1 |
|
|
9 |
175-3335
|
Flanged bushing |
2 |
|
|
10 |
175-3280
|
Clevis pin |
2 |
|
|
11 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
12 |
175-3281
|
Cotter pin |
2 |
|
|
13 |
175-3451
|
Squeegee lift rod |
1 |
|
|
14 |
175-3452
|
Locking collar |
2 |
|
|
15 |
175-5221
|
Squeegee linkage guide weldment |
1 |
|
|
16 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
17 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
18 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
1 |
|
|
19 |
175-3454
|
Spacer stainless steel |
2 |
|
|
20 |
175-3455
|
Nut 3/8-24 hex lock |
2 |
|
|
21 |
175-5220
|
Balljoint link 3/8-24 |
2 |
(after SN 1139) |
|
22 |
999-0566
|
Washer 1/2 flat nylon |
2 |
|
|
