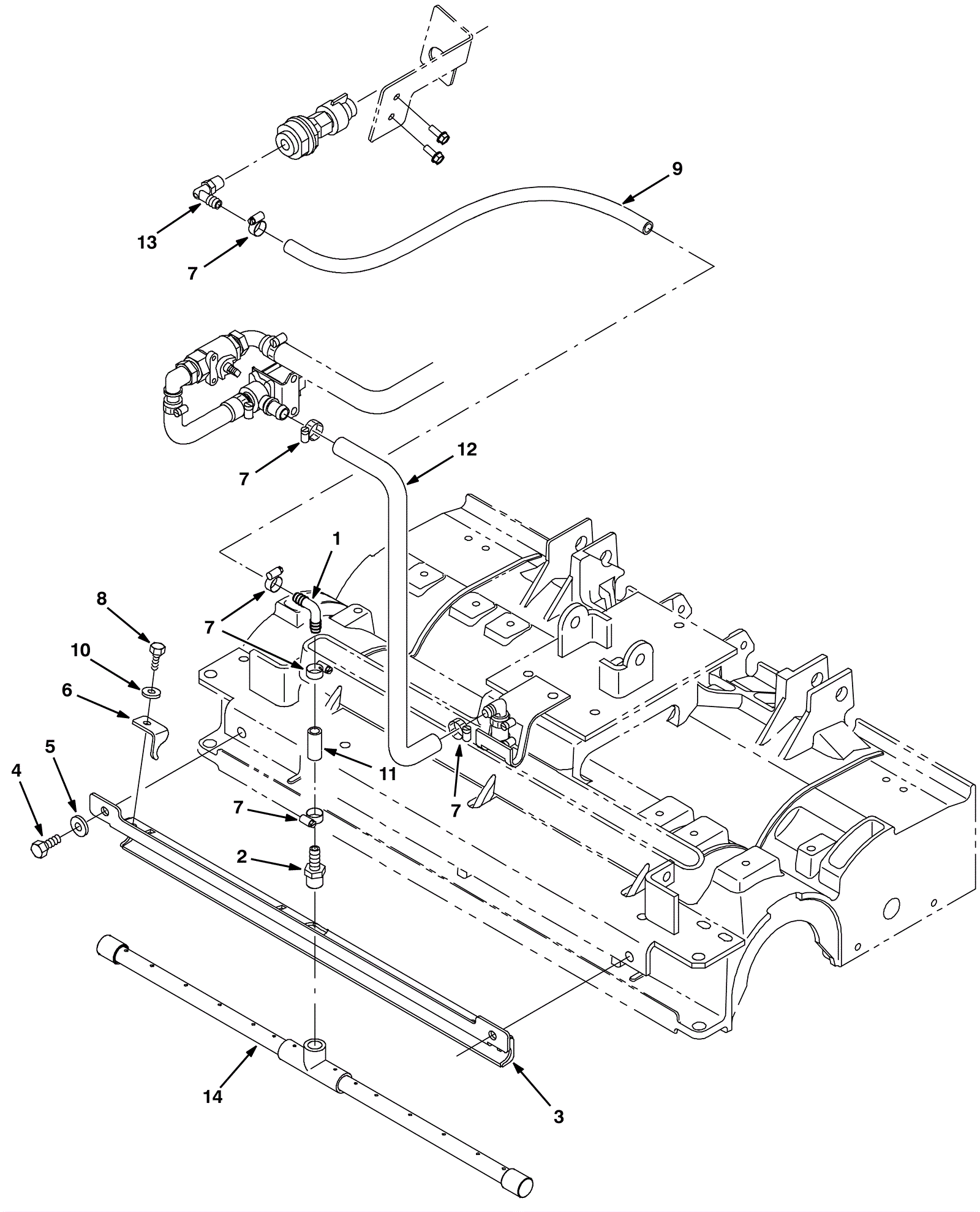

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-8716
|
FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) |
$6.01
|
1 |
|
usually ships 5-16 days |
2 |
175-4808
|
Hose barb |
$4.50
|
1 |
|
usually ships 5-16 days |
3a |
175-5239
|
28 inch spray bar bracket weldment |
$108.10
|
1 |
|
usually ships 1-5 days |
3b |
175-5235
|
32 and 36 inch spray bar bracket weldment |
$112.00
|
1 |
|
usually ships 1-5 days |
4 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
2 |
|
ships same day |
5 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
2 |
|
ships same day |
6 |
175-5236
|
Spray bar bracket |
$13.80
|
3 |
|
usually ships 1-5 days |
7 |
175-6081
|
Hose clamp |
$3.36
|
6 |
|
ships same day |
8 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
$0.99
|
3 |
|
ships same day |
9 |
275-1748
|
HOSE, PVC, CLR, 0.38ID 0.56OD 027.0L |
$16.80
|
1 |
|
usually ships 5-16 days |
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
3 |
|
ships same day |
11 |
275-1748
|
HOSE, PVC, CLR, 0.38ID 0.56OD 027.0L |
$16.80
|
1 |
|
usually ships 5-16 days |
12 |
275-1192
|
Hose 1/2 x 3 foot (Tennant Industrial) |
$48.60
|
1 |
|
usually ships 5-16 days |
13 |
175-2844
|
90 degree elbow fitting |
$4.50
|
1 |
|
ships same day |
14a |
175-5238
|
28 inch spray tube assembly |
$313.80
|
1 |
|
usually ships 1-5 days |
14b |
175-5232
|
32 inch spray tube assembly |
$222.20
|
1 |
|
usually ships 1-5 days |
