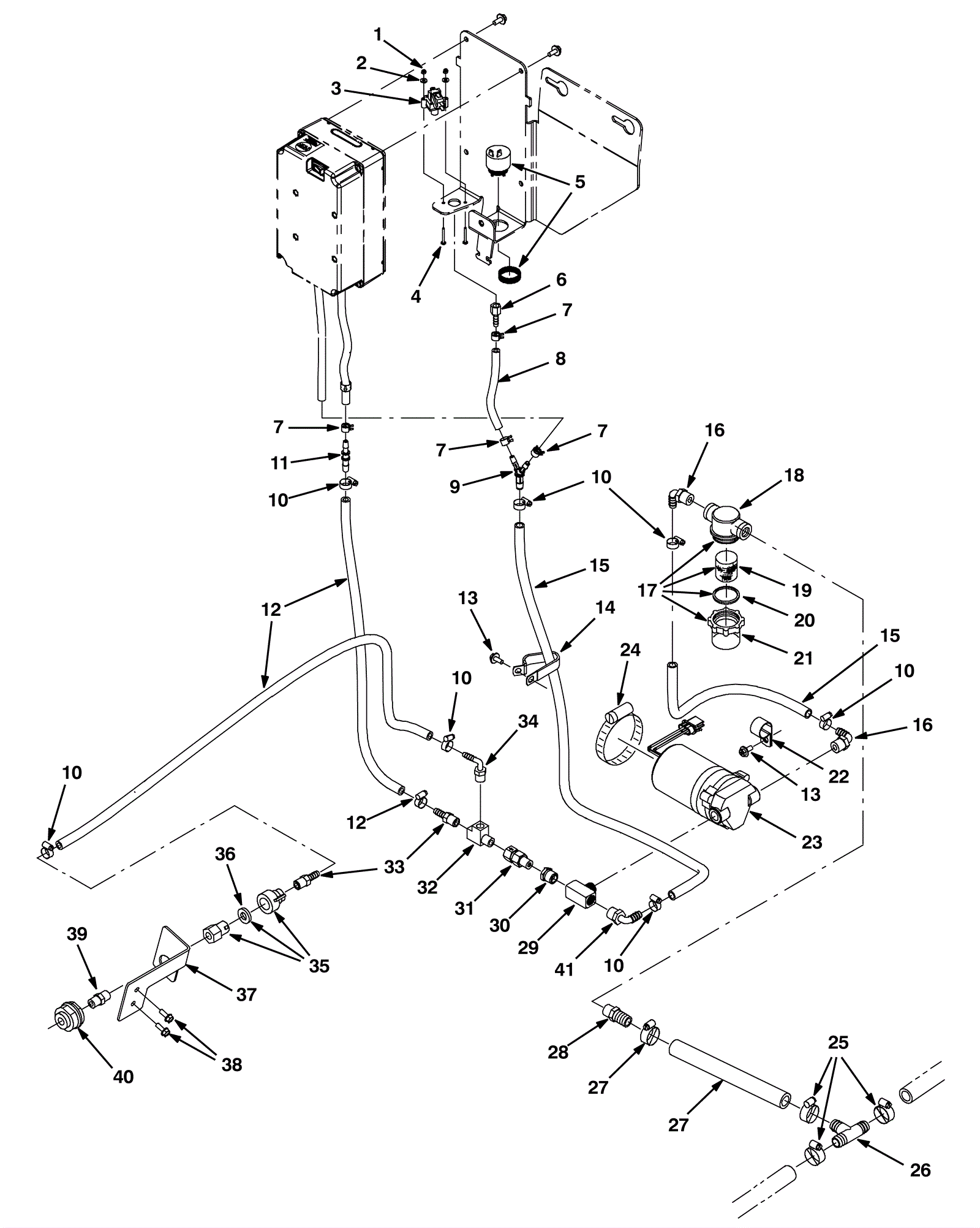

ec-H2O Solution Pump Assembly

#PartDescription ReqNotesAvailability
1 999-1161 Nut M3-.5 hex nylock stainless steel 2
2 999-0377 Washer 6 SAE flat plain finish 2
3 275-4944 Pressure switch 1
4 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2
5 275-4942 Alarm 1
6 175-3529 Brass fitting 1
7 175-1656 Hose clamp 4
8 175-5305 Hose 1/4 x 3 foot 1
9 375-1521 Y fitting (Tennant Industrial) 1
10 175-3594 Hose clamp 8
11 275-7251 Straight plastic fitting (Tennant Industrial) 1
12 275-2601 3 foot braided PVC hose (clear) 2
13 999-1383 Screw M6-1 x 16mm hex head stainless steel 2
14 175-3171 Cable clamp 1
15 375-0936 Clear PVC hose (Tennant Industrial) 1
16 175-6019 90 degree barbed elbow 2
17 175-9025 In-line screen filter assembly 1 (includes 18-21)
18 175-5865 Top filter body housing 1
19 175-5866 Mesh filter screen 1
20 175-5867 Filter gasket 1
21 175-5868 Short clear filter bowl 1
22 175-2260 P clamp 1
23 375-2599 24V solution pump (OBSOLETE) 1
24 175-5205 Wormdrive hose clamp 1
25 175-0199 Hose clamp 6
26 175-0747 Plastic fitting tee (Tennant Industrial) 1
27 275-8348 HOSE, AFMKT, PVC, BRD, 0.62ID, 01FT, CLR (Tennant Industria 1
28 275-5771 Plastic fitting 1
29 275-7242 Tee brass fitting (Tennant Industrial) 1
30 175-1977 Fitting 1/4 x 3/8 1
31 275-4756 Check valve 1
32 175-6029 Straight tee 1
33 275-7246 Straight plastic fitting (Tennant Industrial) 2
34 275-7247 90 degree elbow (Tennant Industrial) 1
35 275-4757 Fitting assembly 1 (includes 36)
36 275-4946 Washer 0.21b x 0.45d flat 1
37 375-1522 Drain hose bracket 1
38 175-3166 Bolt M6-1 x 16mm hex head 2
39 275-7244 Straight plastic fitting (Tennant Industrial) 1
40 275-7253 Straight plastic fitting (Tennant Industrial) 1
41 175-7933 90 degree plastic elbow 1
