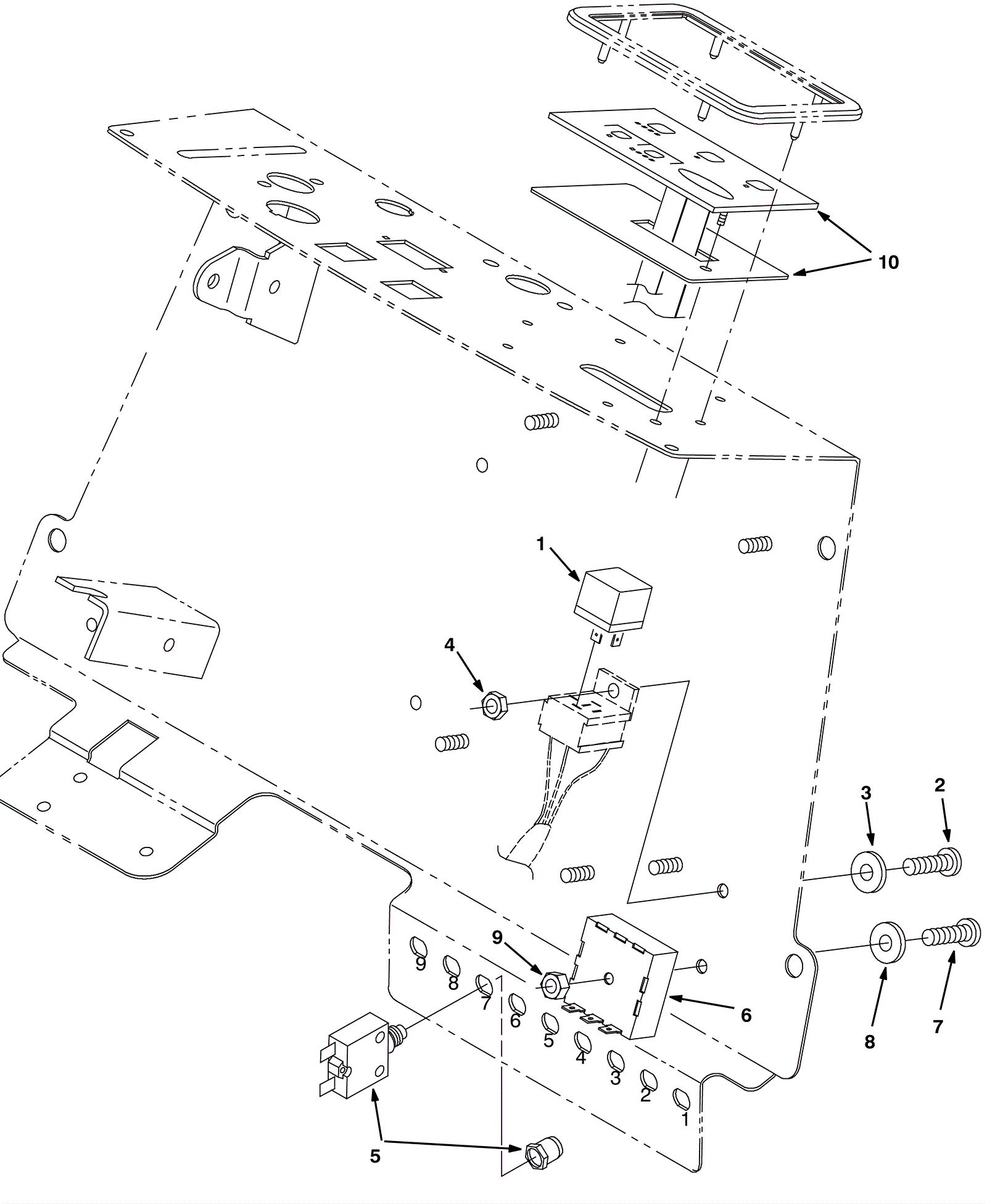

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-2265
|
36V 5amp relay |
1 |
(before SN 01709) |
|
2 |
175-3234
|
Screw M5-.8 x 10mm pan head |
1 |
(before SN 01709) |
|
3 |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
(before SN 01709) |
|
4 |
175-2894
|
Nut M5-.8 hex nylon locking |
1 |
(before SN 01709) |
|
5 |
175-2336
|
10amp circuit breaker |
1 |
(before SN 01709) |
|
6 |
275-1182
|
Timer 36vdc |
1 |
(before SN 01709) |
|
7 |
275-5062
|
Screw M6-1 x 35mm hex head |
1 |
(before SN 01709) |
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
(before SN 01709) |
|
9 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
(before SN 01709) |
|
10 |
375-1519
|
Panel assembly |
1 |
(after SN 01708) |
|
