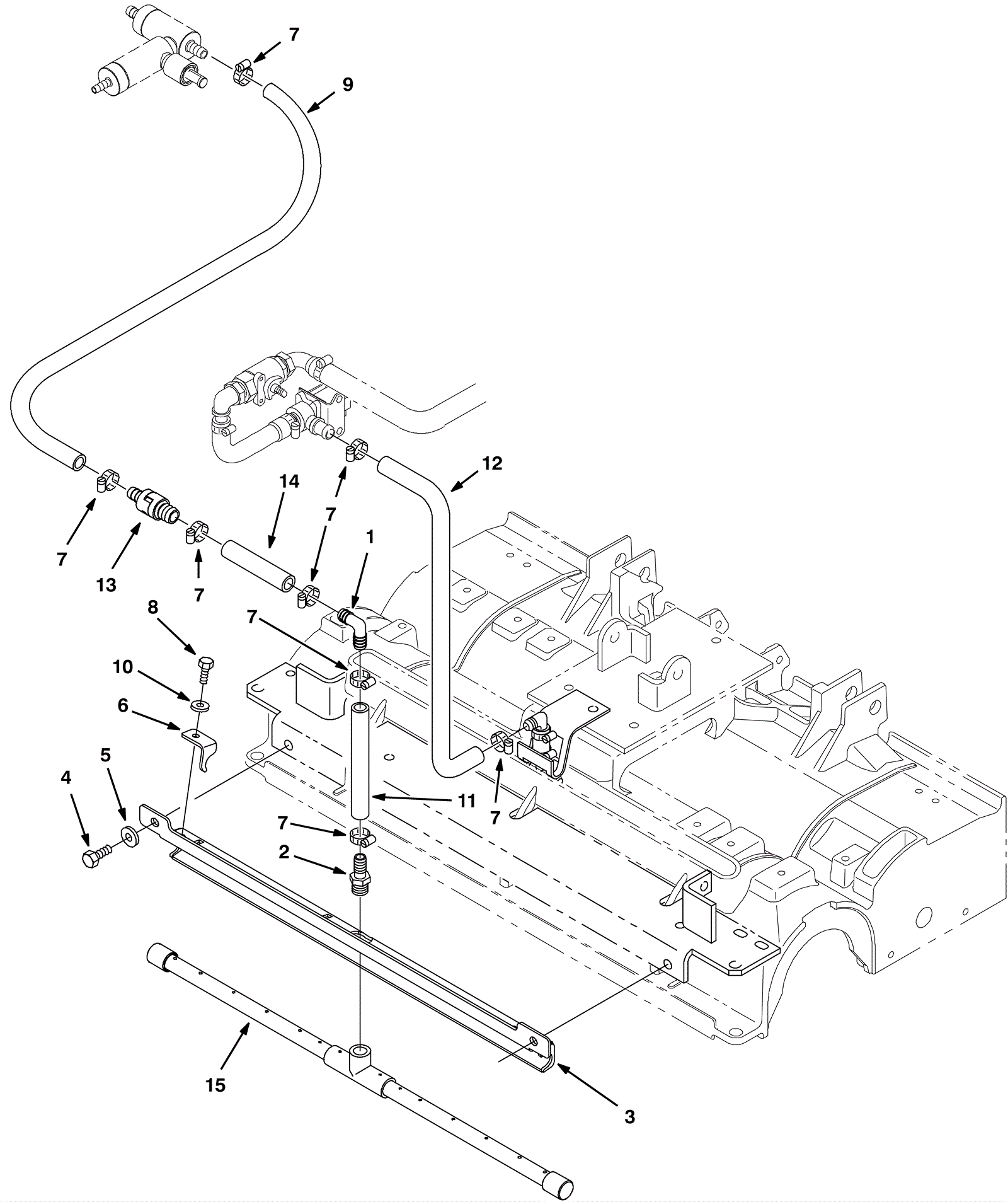

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-5233
|
Plastic fitting |
1 |
|
|
2 |
175-5234
|
Plastic fitting |
1 |
|
|
3 |
175-5239
|
28 inch spray bar bracket weldment |
1 |
|
|
4 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
5 |
999-9097
|
Washer M8 flat stainless steel |
2 |
|
|
6 |
175-5236
|
Spray bar bracket |
3 |
|
|
7 |
175-6081
|
Hose clamp |
8 |
|
|
8 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
3 |
|
|
9 |
275-1534
|
3 foot PVC hose (braided) (Tennant Industrial) |
1 |
|
|
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
11 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
12 |
275-1192
|
Hose 1/2 x 3 foot (Tennant Industrial) |
1 |
|
|
13a |
175-7929
|
Check valve |
1 |
|
|
13b |
275-5350
|
Check valve |
1 |
(between SN 01709 and SN 06238) |
|
14 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
15 |
175-5238
|
28 inch spray tube assembly |
1 |
|
|
