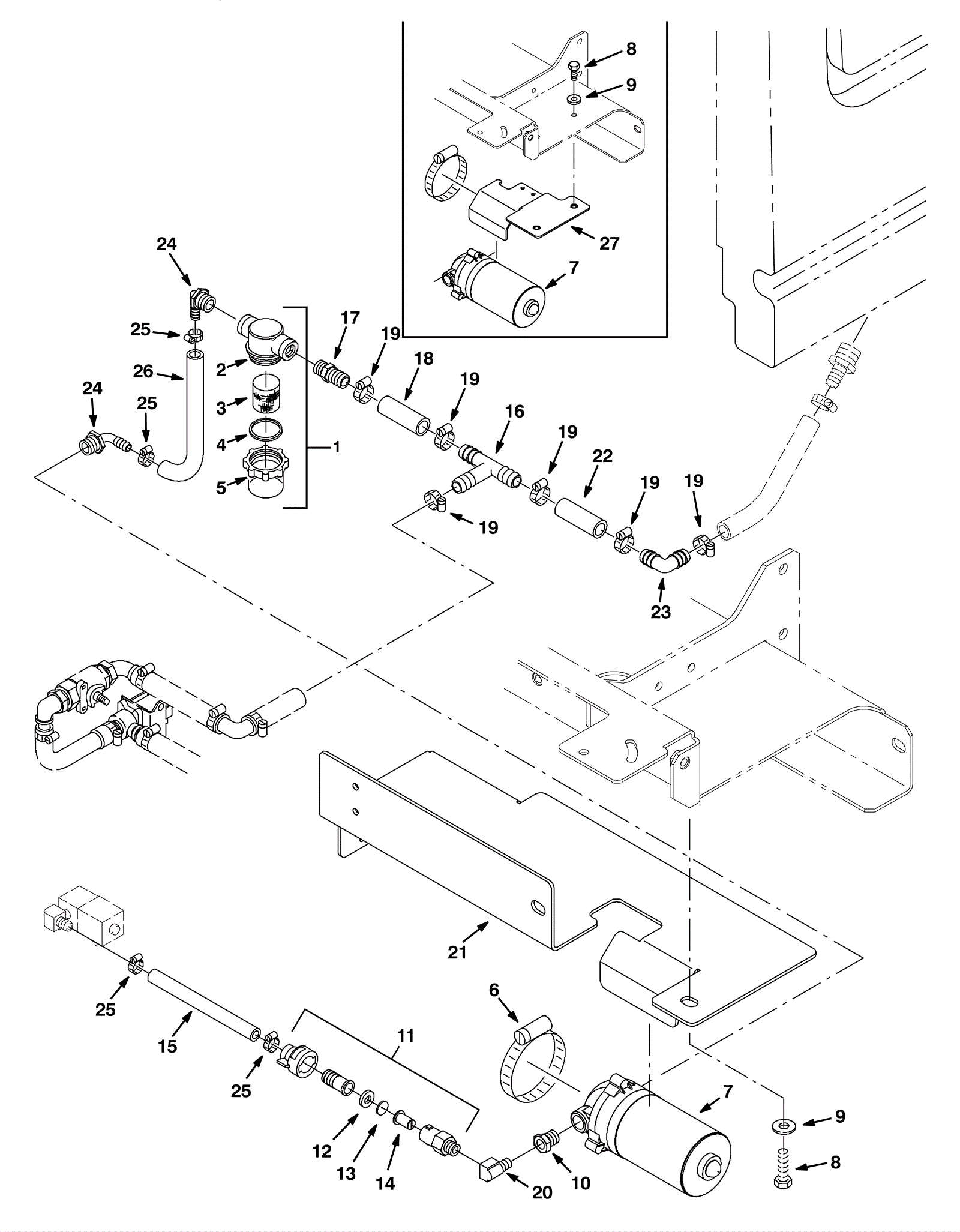

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-9025
|
In-line screen filter assembly |
1 |
(Includes 2-5) |
|
2 |
175-5865
|
Top filter body housing |
1 |
|
|
3 |
175-5866
|
Mesh filter screen |
1 |
|
|
4 |
175-5867
|
Filter gasket |
1 |
|
|
5 |
175-5868
|
Short clear filter bowl |
1 |
|
|
6 |
175-5205
|
Wormdrive hose clamp |
1 |
|
|
7 |
175-5242
|
36V solution pump |
1 |
|
|
8 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
9 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
10 |
175-1977
|
Fitting 1/4 x 3/8 |
1 |
|
|
11 |
175-5245
|
Cap fitting assembly |
1 |
(Includes 12-14) |
|
12 |
175-5246
|
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
|
|
13 |
175-5247
|
Orifice plate |
1 |
|
|
14 |
175-5248
|
Mesh screen |
1 |
|
|
15 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
16 |
175-0747
|
Plastic fitting tee (Tennant Industrial) |
1 |
|
|
17 |
275-5771
|
Plastic fitting |
1 |
|
|
18 |
275-8348
|
HOSE, AFMKT, PVC, BRD, 0.62ID, 01FT, CLR (Tennant Industria |
1 |
|
|
19 |
175-0199
|
Hose clamp |
6 |
|
|
20 |
175-2614
|
90 degree elbow fitting |
1 |
|
|
21 |
175-5319
|
Bracket |
1 |
|
|
22 |
275-8348
|
HOSE, AFMKT, PVC, BRD, 0.62ID, 01FT, CLR (Tennant Industria |
1 |
|
|
23 |
175-3421
|
Plastic fitting |
1 |
|
|
24 |
175-5241
|
90 degree elbow |
2 |
|
|
25 |
175-6081
|
Hose clamp |
4 |
|
|
26 |
175-5229
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria |
1 |
|
|
27 |
N/A
|
Not available |
1 |
(pump bracket) (before SN 00557) |
|
