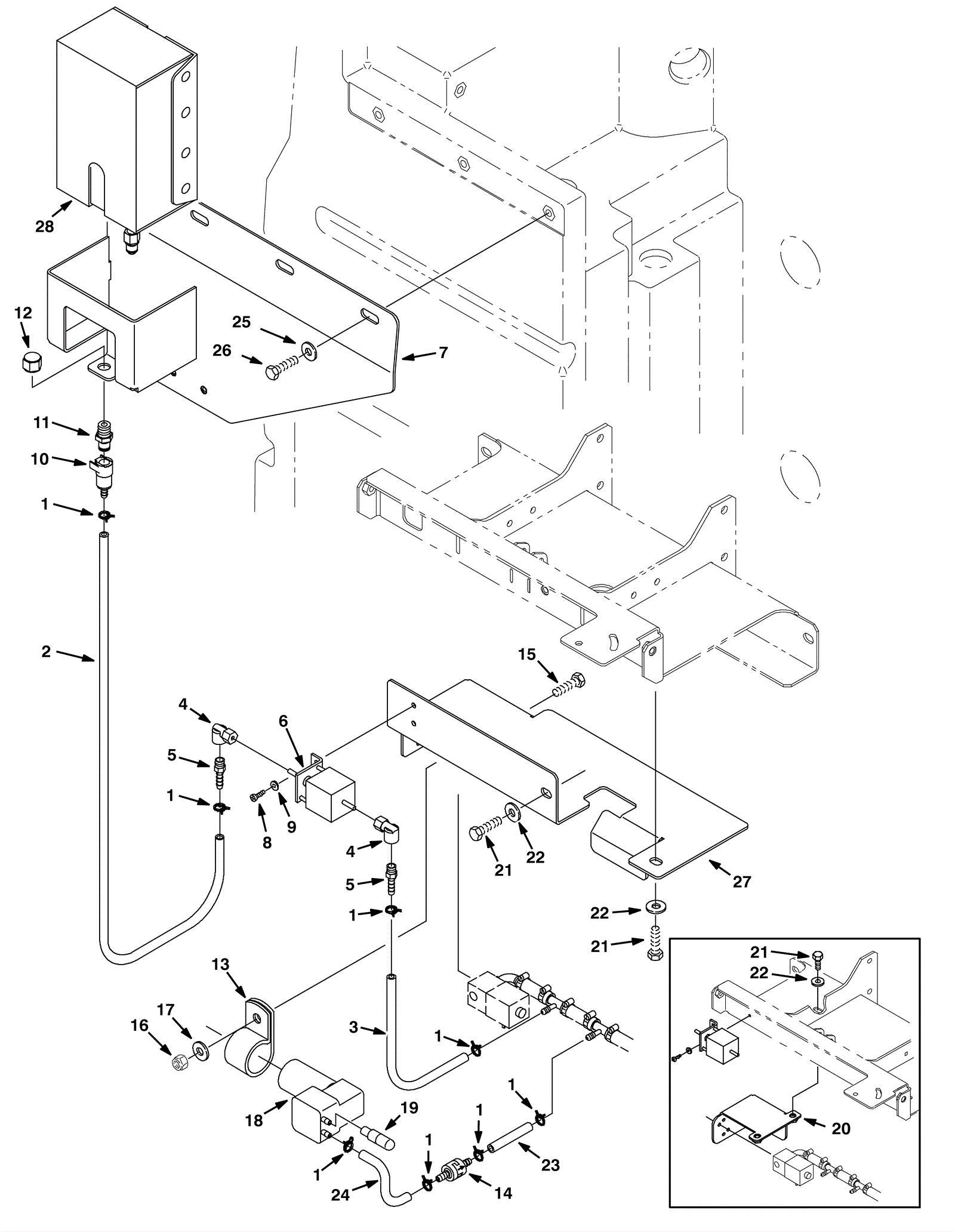

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
175-5305
|
Hose 1/4 x 3 foot |
1 |
|
|
3 |
175-9691
|
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
|
4 |
175-5307
|
Brass fitting |
2 |
|
|
5 |
175-1659
|
Fitting |
2 |
|
|
6 |
175-5308
|
Detergent pump |
1 |
|
|
7 |
175-5309
|
Box detergent bracket weldment |
1 |
|
|
8 |
175-5310
|
Screw 4 x 45/64 x 16 pan head |
1 |
|
|
9 |
999-0377
|
Washer 6 SAE flat plain finish |
1 |
|
|
10 |
175-5311
|
Female fitting with valve |
1 |
|
|
11 |
175-5312
|
Male coupling strainer fitting |
1 |
|
|
12 |
175-5313
|
Plastic cap fitting |
1 |
|
|
13 |
175-5314
|
P clamp (Tennant Industrial) |
1 |
|
|
14 |
175-5315
|
Check valve |
1 |
|
|
15 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
1 |
|
|
16 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
17 |
999-9097
|
Washer M8 flat stainless steel |
1 |
|
|
18a |
175-5316
|
Elevated air pump 36vdc |
1 |
(Includes 18b) |
|
18b |
175-5317
|
Air compressor diaphragm repair kit |
1 |
|
|
19 |
175-5318
|
Filter assembly |
1 |
|
|
20 |
375-1518
|
Pump bracket |
1 |
|
|
21 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
3 |
|
|
22 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
23 |
175-9691
|
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
|
24 |
175-9691
|
Hose 1/4 x 1 foot (Tennant Industrial) |
1 |
|
|
25 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
26 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
3 |
|
|
27 |
175-5319
|
Bracket |
1 |
|
|
28 |
N/A
|
Not available |
1 |
(detergent holder) |
|
