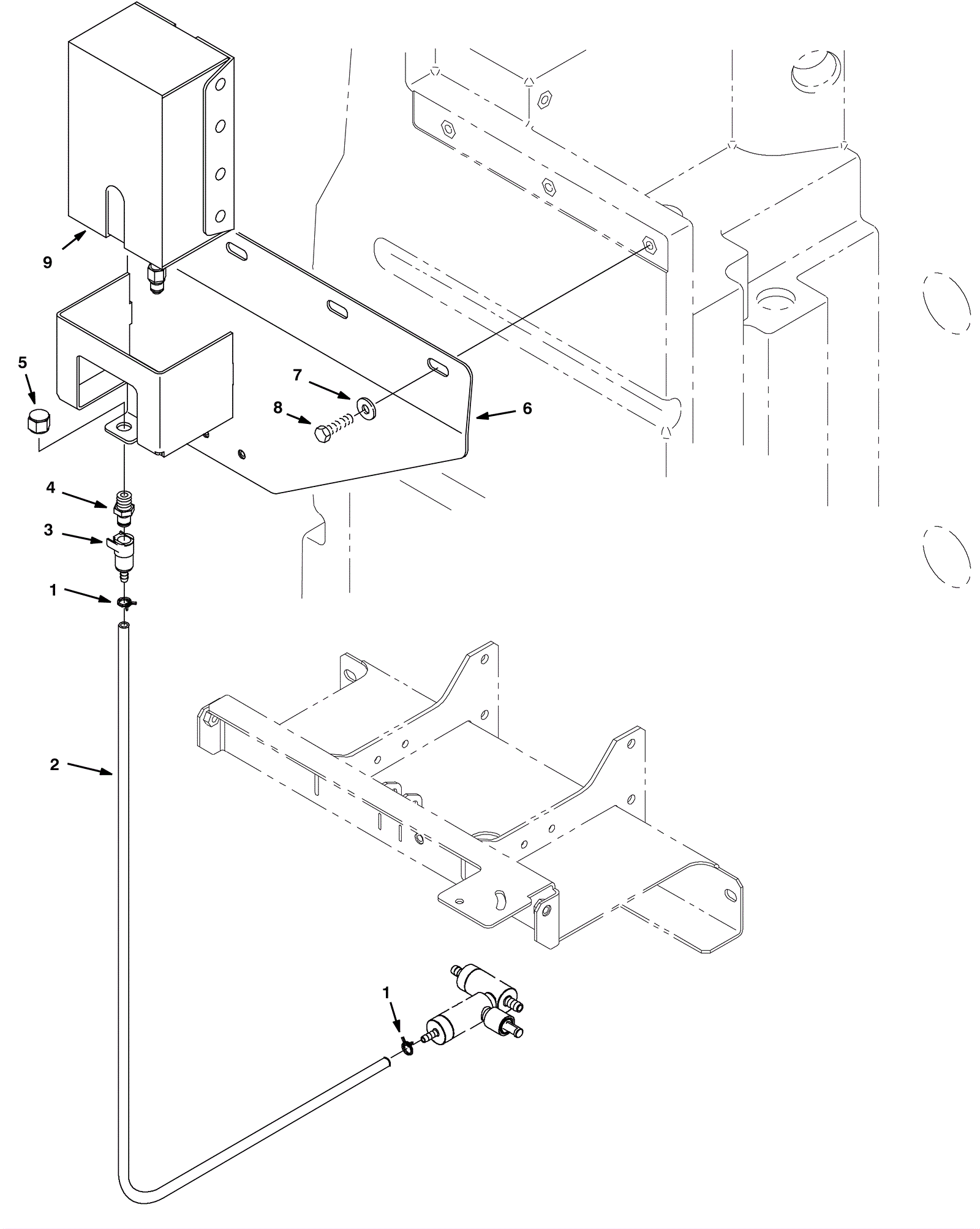

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-5304
|
Hose clamp |
2 |
|
|
2 |
175-9693
|
Hose 1/4 x 8 foot (Tennant Industrial) |
1 |
|
|
3 |
175-5311
|
Female fitting with valve |
1 |
|
|
4 |
175-5312
|
Male coupling strainer fitting |
1 |
|
|
5 |
175-5313
|
Plastic cap fitting |
1 |
|
|
6 |
175-5309
|
Box detergent bracket weldment |
1 |
|
|
7 |
999-9097
|
Washer M8 flat stainless steel |
3 |
|
|
8 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
3 |
|
|
9 |
N/A
|
Not available |
1 |
(Chemical holder) |
|
