| # | Part | Description |
Req | Notes | Availability |
|---|

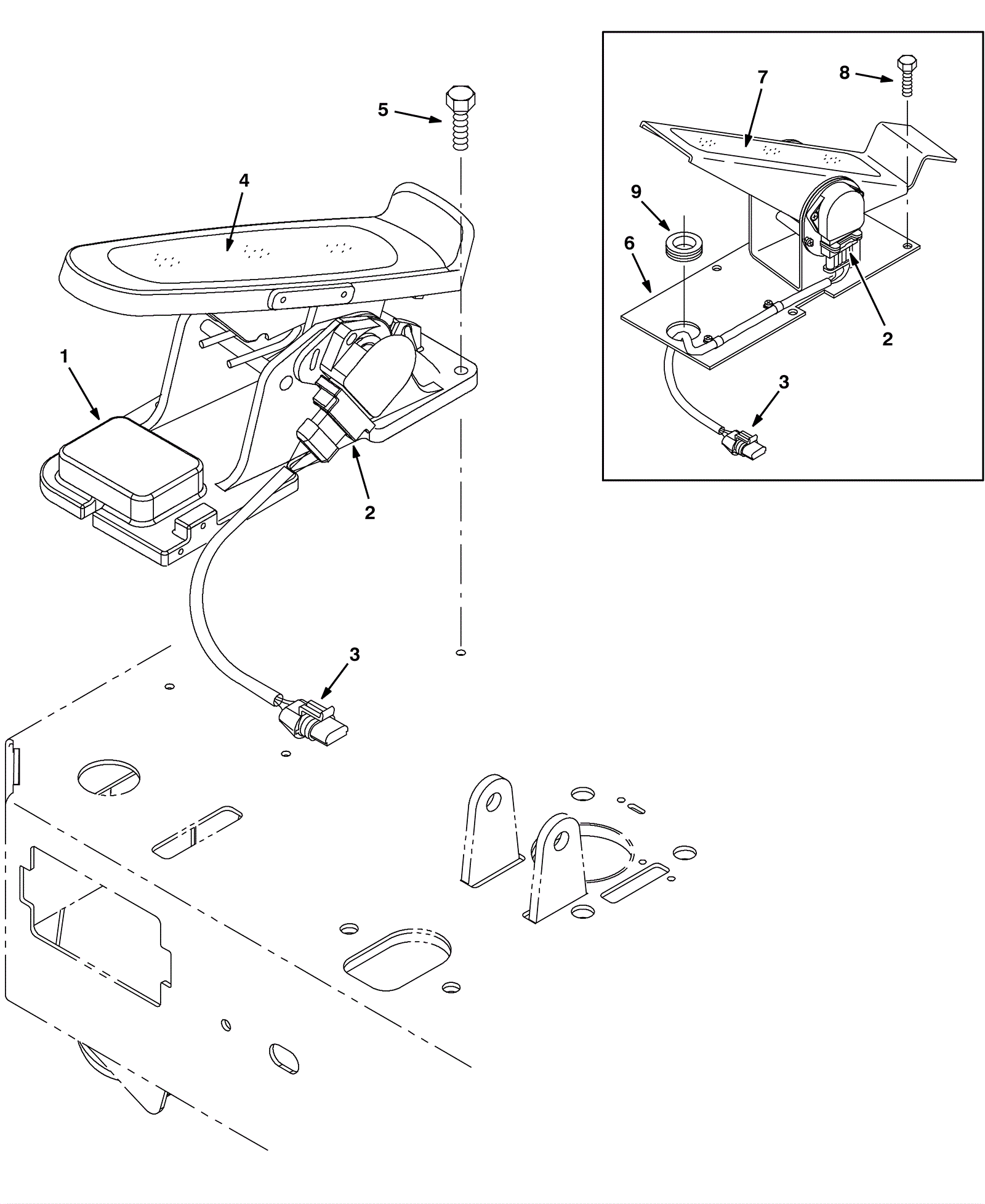

1 |
175-4964
|
Foot pedal assembly |
1 |
(Includes 2-4) |
|
2 |
175-4966
|
Pedal postion sensor |
1 |
|
|
3 |
175-4967
|
Pedal harness |
1 |
|
|
4 |
275-9283
|
Non-skid tread |
1 |
(after SN 01600) |
|
5 |
999-0779
|
Screw M6-1 x 25mm hex head plain finish |
4 |
(after SN 01600) |
|
6 |
N/A
|
Not available |
1 |
(pedal plate) (between SN 00248 and SN 01600) |
|
7 |
175-3307
|
Non-skid tread |
1 |
(between SN 00248 and SN 01600) |
|
8 |
175-3298
|
Bolt M6-1 x 12mm hex head |
4 |
(between SN 00248 and SN 01600) |
|
9 |
175-3311
|
Rubber grommet |
1 |
(between SN 00248 and SN 01600) |
|
