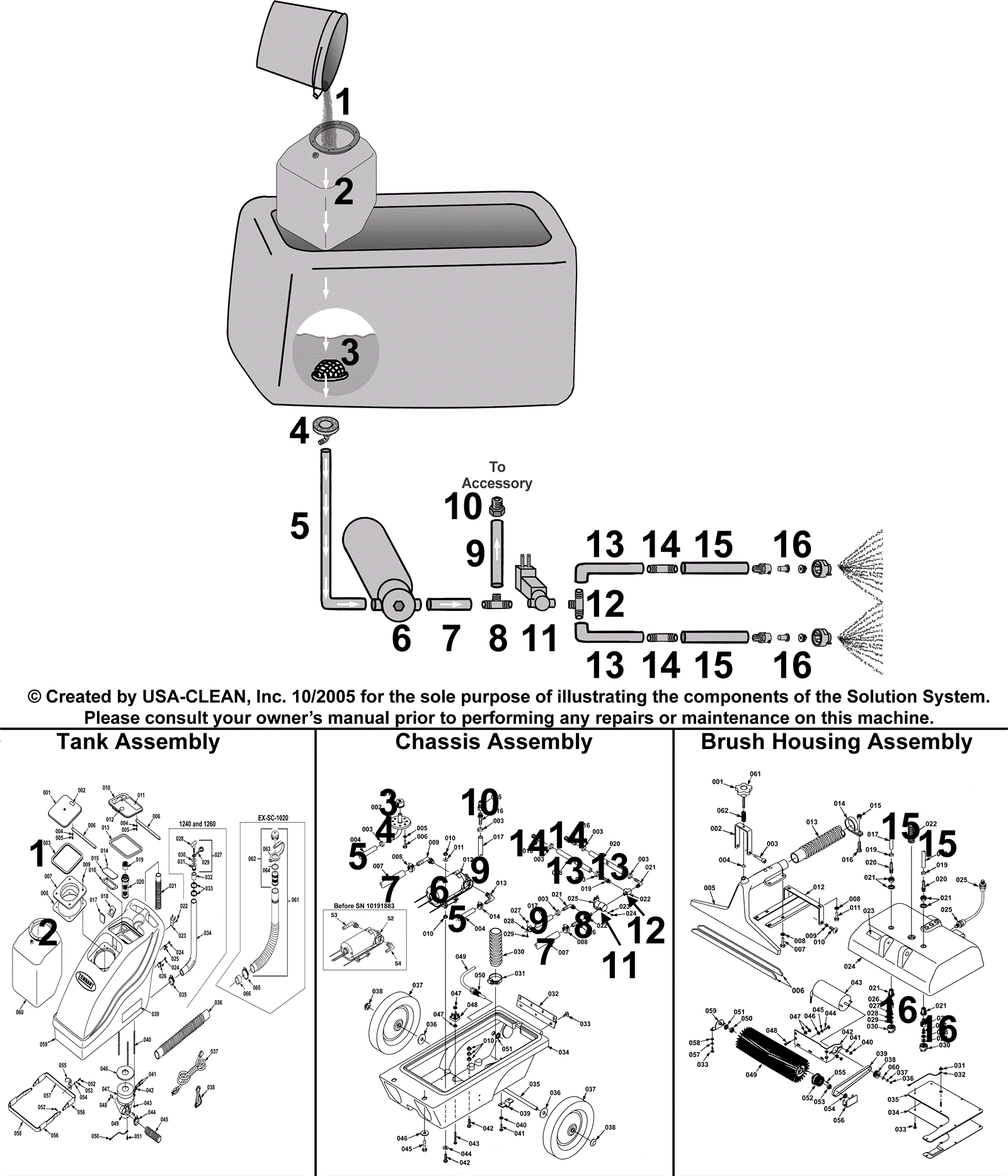

EX-SC-1020 -Simplified Solution System

#PartDescriptionPriceReqNotesAvailability
02 175-6083 10 gallon bladder bag $400.73 Tank Assembly - After 06.2002 usually ships 10-16 days
02 175-6083 10 gallon bladder bag $400.73 Tank Assembly - Before 06.2002 usually ships 10-16 days
03 175-6021 Bladder plate fitting $60.94 Tank Assembly - After 06.2002 usually ships 10-16 days
03 175-6021 Bladder plate fitting $60.94 Tank Assembly - Before 06.2002 usually ships 10-16 days
04 175-7216 Hose 3/8 x 31 inch (gray) $20.57 Tank Assembly - After 06.2002 usually ships 10-16 days
04 175-7216 Hose 3/8 x 31 inch (gray) $20.57 Tank Assembly - Before 06.2002 usually ships 10-16 days
07 175-6079 Mesh filter screen $18.92 Chassis Assembly - After 06.2002 ships same day
07 175-6079 Mesh filter screen $18.92 Chassis Assembly - Before 06.2002 ships same day
08 175-4870 Hose $31.24 Chassis Assembly - Before 06.2002 usually ships 10-16 days
08 175-7221 24 inch hose (red) $51.70 Chassis Assembly - After 06.2002 usually ships 10-16 days
09a 175-6025 Solution solenoid valve $241.34 Chassis Assembly - After 06.2002 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) ships same day
09a 175-6025 Solution solenoid valve $241.34 Chassis Assembly - Before 06.2002 (if solenoid valve is leaking try replacing the plunger with spring first before replacing entire solenoid valve) ships same day
09b 991-8598 Replacement plunger with spring for solenoid valve $19.47 1 ships same day
10 175-4868 Hose 3/8 x 24 1/2 inch (gray) $16.39 Chassis Assembly - After 06.2002 (Right side) usually ships 10-16 days
10 175-7292 Vinyl tubing 3/8 x 30 inch (gray) $18.48 Chassis Assembly - After 06.2002 (Left side) usually ships 10-16 days
10 175-7364 16 inch hose (gray) $15.73 Chassis Assembly - Before 06.2002 usually ships 10-16 days
11 175-6040 20 inch spray bar manifold $126.94 Brush Housing Assembly - Before 06.2002 usually ships 10-16 days
12 175-4192 Quick jet body $15.40 Brush Housing Assembly - After 06.2002 usually ships 10-16 days
12 175-6118 Spray tip assembly $83.49 Brush Housing Assembly - Before 06.2002 ships same day
