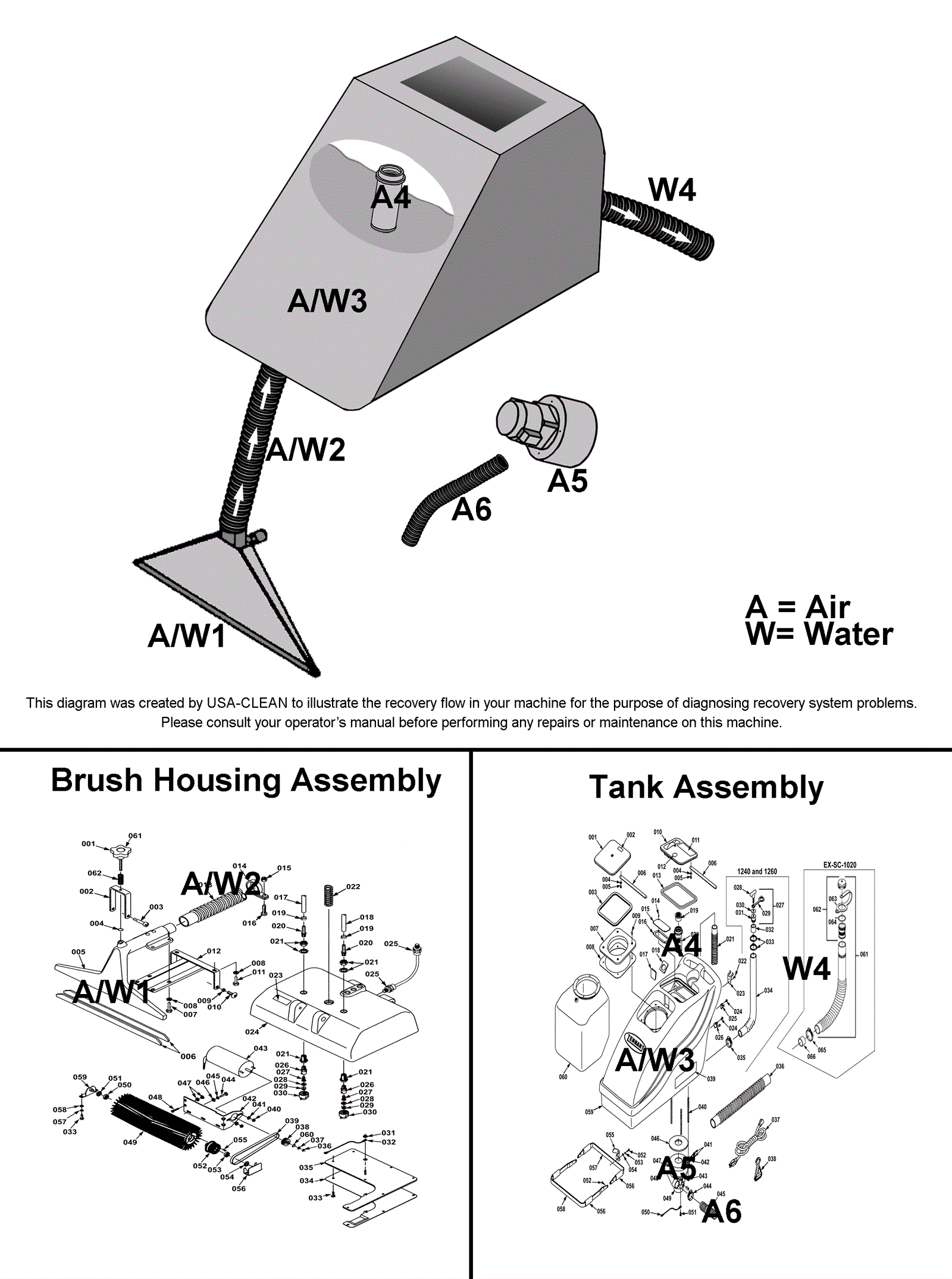

| # | Part | Description |
Req | Notes | Availability |
|---|
A/W1 |
175-6151
|
20 inch pick-up tool (black) |
|
Brush Housing Assembly - After 06.2002 |
|
A/W1 |
175-6151
|
20 inch pick-up tool (black) |
|
Brush Housing Assembly - Before 06.2002 |
|
A/W2 |
175-6038
|
Vacuum hose with cuffs 1 1/2 x 53 inch |
|
Brush Housing Assembly - Before 06.2002 (OEM) |
|
A/W2 |
991-5154
|
Vacuum hose with cuffs 1 1/2 x 53 inch |
|
Brush Housing Assembly - Before 06.2002 (NON-OEM) |
|
A/W2 |
175-3530
|
Vacuum hose with cuffs 1 1/2 x 46 inch |
|
Brush Housing Assembly - After 06.2002 |
|
A/W3 |
275-5125
|
Recovery tank (off-white) |
|
Tank Assembly - Before 06.2002 |
|
A/W3 |
275-6090
|
Tank assembly |
|
Tank Assembly - After 06.2002 (EX-SC-1020) |
|
A/W3 |
275-5148
|
Tank assembly |
|
Tank Assembly - After 06.2002 (1260) |
|
A4 |
991-5136
|
Shut-off float |
|
(NON-OEM) |
|
A4 |
675-9887
|
Shut-off float |
|
Tank Assembly - Before 06.2002 (OEM) |
|
A4 |
175-9838
|
Shut-off float |
|
Tank Assembly - After 06.2002 |
|
A5 |
991-1213
|
120V 3 stage vacuum motor tangential |
|
Chassis Assembly - Before 06.2002 |
|
A5 |
991-1213
|
120V 3 stage vacuum motor tangential |
|
Tank Assembly - After 06.2002 |
|
A6 |
175-6090
|
Exhaust hose 2 x 26 inch (black) |
|
Chassis Assembly - Before 06.2002 |
|
A6 |
175-6090
|
Exhaust hose 2 x 26 inch (black) |
|
Tank Assembly - After 06.2002 |
|
W4a |
175-1535
|
Drain hose assembly |
|
Tank Assembly - After 06.2002 |
|
W4a |
175-1535
|
Drain hose assembly |
|
Tank Assembly - Before 06.2002 |
|
W4b |
991-1907
|
22 inch molded hose with drain cap |
|
(NON-OEM) |
|
