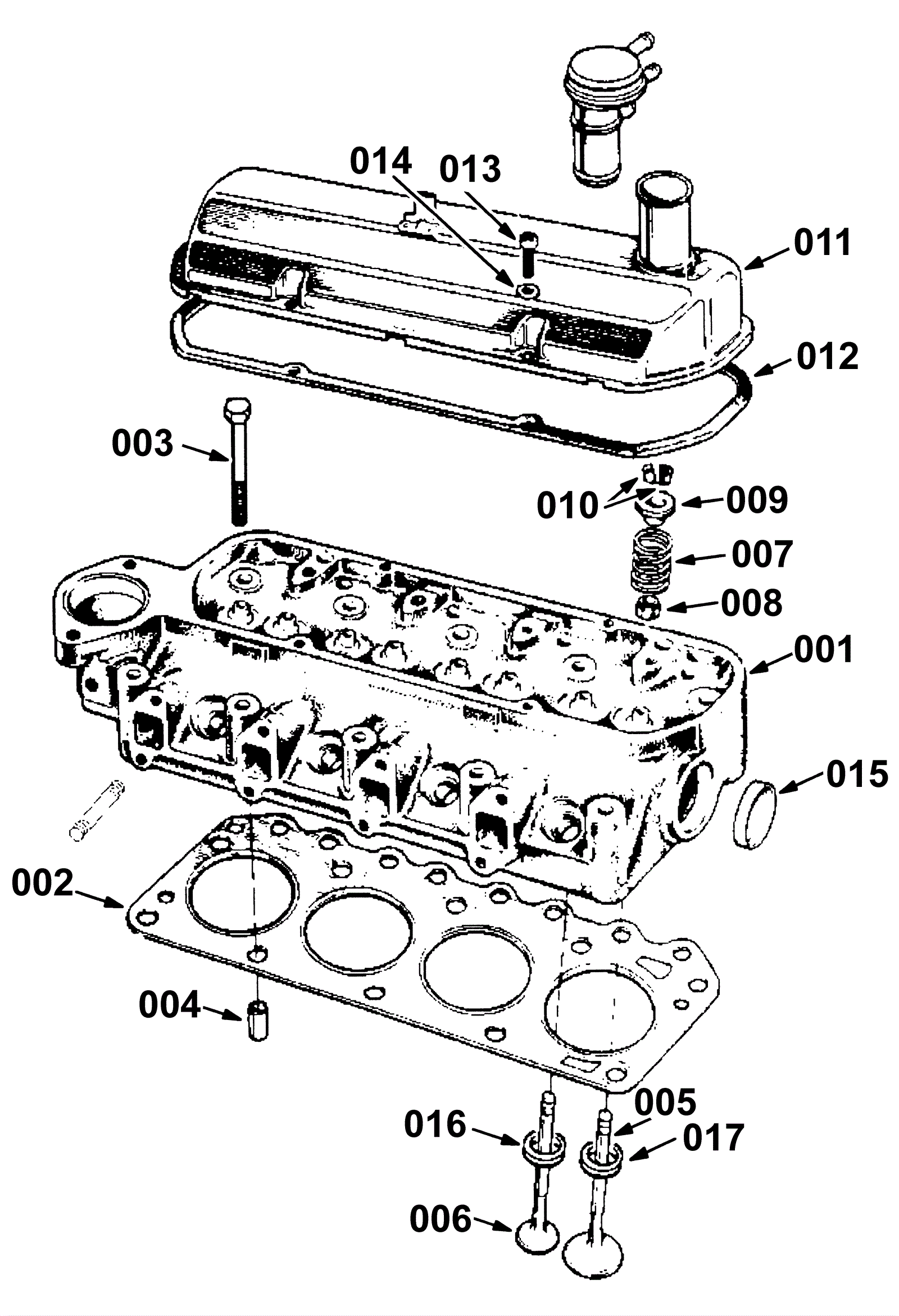

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
Cylinder head assemblyl |
|
002 |
275-4399
|
VR, GASKET, HEAD, CYL [FD] (Tennant Industrial) |
1 |
|
|
003 |
275-4400
|
VR, BOLT, CYL HEAD [FD] (Tennant Industrial) |
10 |
|
|
004 |
275-4401
|
VR, PIN, DOWEL [FD] (Tennant Industrial) |
2 |
|
|
005 |
275-4402
|
VR, VALVE, INTAKE [FD] (Tennant Industrial) |
|
|
|
006 |
275-4403
|
VR, VALVE, EXHAUST [FD] (Tennant Industrial) |
4 |
|
|
007 |
275-4404
|
VR, SPRING, VALVE [FD] (Tennant Industrial) |
8 |
|
|
008 |
275-4405
|
VR, SEAL (Tennant Industrial) |
8 |
|
|
009 |
275-4406
|
VR, RETAINER, VALVE [FD] (OBSOLETE) |
8 |
|
|
010 |
275-4407
|
VR, LOCK, SPRING, VALVE [FD] (OBSOLETE) |
16 |
|
|
011 |
275-4408
|
Rocker arm cover (Tennant Industrial) (OBSOLETE) |
1 |
|
|
012 |
275-4409
|
VR, GASKET, COVER, ROCKER ARM (Tennant Industrial) |
1 |
|
|
013 |
275-4410
|
VR, SCREW, COVER, VALVE [FD] (Tennant Industrial) |
4 |
|
|
014 |
N/A
|
Not available |
4 |
|
|
015 |
275-4411
|
VR, PLUG, EXPANSION [FD] (Tennant Industrial) |
1 |
|
|
016 |
275-4412
|
VR, INSERT, SEAT, EXHAUST VALVE [FD] (Tennant Industrial) |
4 |
|
|
017 |
275-4413
|
Intake valve seat insert (Tennant Industrial) (OBSOLETE) |
4 |
|
|
