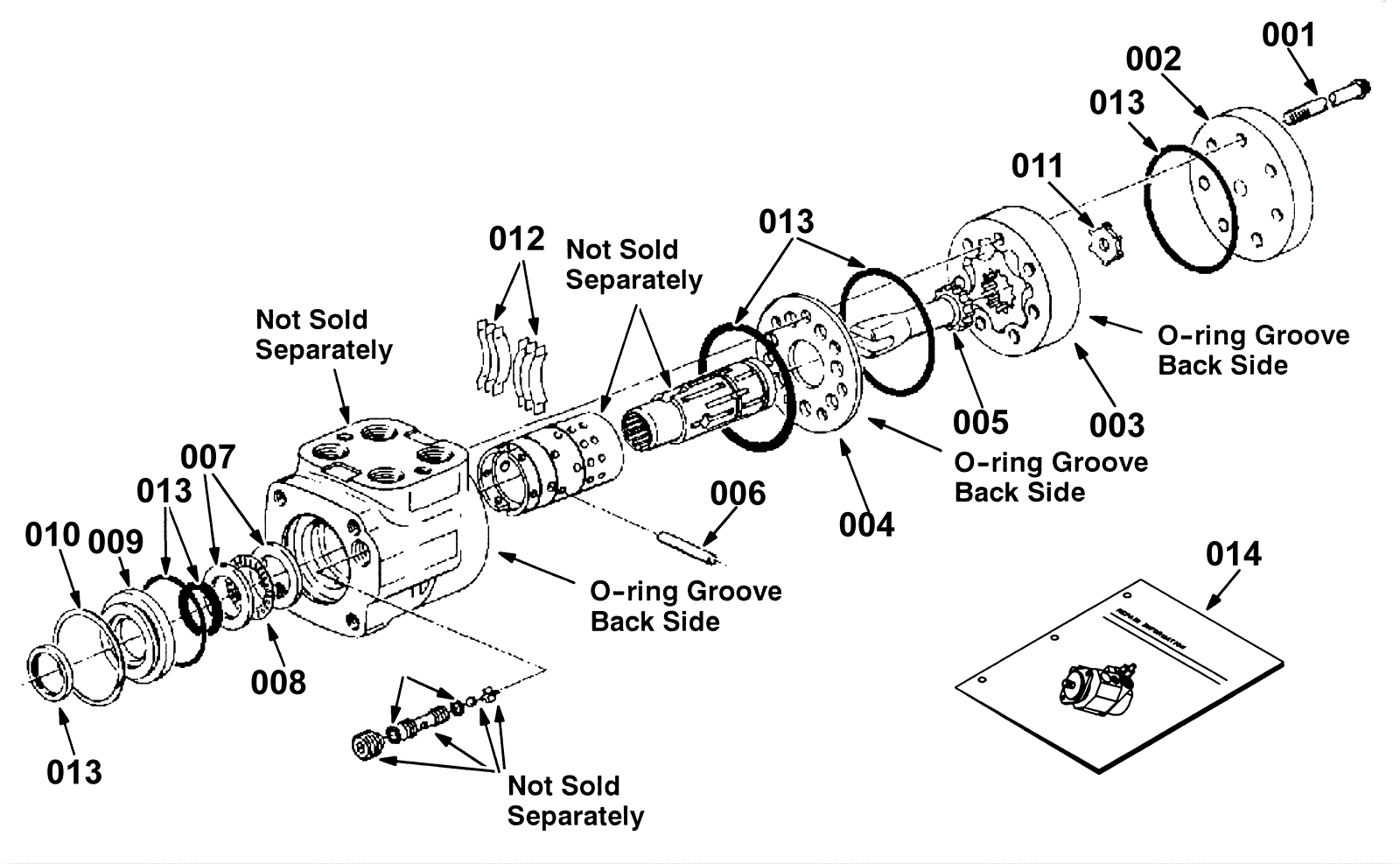

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
275-4093
|
STEER-CONTROL, HYD04, 05.9 0600 (Tennant Industrial) |
1 |
(Includes 001 - 013) |
|
001 |
275-4094
|
VR, SCREW, CAP, MOTOR, HYD [EN] (Tennant Industrial) |
7 |
|
|
002 |
275-4095
|
VR, CAP, END (Tennant Industrial) |
1 |
|
|
003 |
N/A
|
Not available |
1 |
Steering control |
|
004 |
275-4097
|
VR, PLATE, WEAR, STEERING VALVE [EN] (Tennant Industrial) |
1 |
|
|
005 |
N/A
|
Not available |
1 |
Drive valve |
|
006 |
275-4099
|
Pin (Tennant Industrial) (OBSOLETE) |
1 |
|
|
007 |
275-4100
|
VR, RACE, BRG, STEERING VALVE [EN] (Tennant Industrial) |
2 |
|
|
008 |
275-4101
|
VR, BEARING, NEEDLE, STEERING VALVE [EN] (Tennant Industria |
1 |
|
|
009 |
275-4102
|
VR, BUSHING, SEAL, STEERING VALVE [EN] (Tennant Industrial) |
1 |
|
|
010 |
275-4103
|
VR, RING, RETAINER, STEERING VALVE [EN] (Tennant Industrial |
1 |
|
|
011 |
275-4104
|
Spacer (Tennant Industrial) (OBSOLETE) |
1 |
|
|
012 |
275-4105
|
VR, SPRING KIT, SCU [CL] (Tennant Industrial) |
1 |
|
|
013 |
275-4106
|
VR, SEAL KIT, HYD, SCU [EN] (Tennant Industrial) |
1 |
|
|
014 |
N/A
|
Not available |
1 |
Repair information |
|
