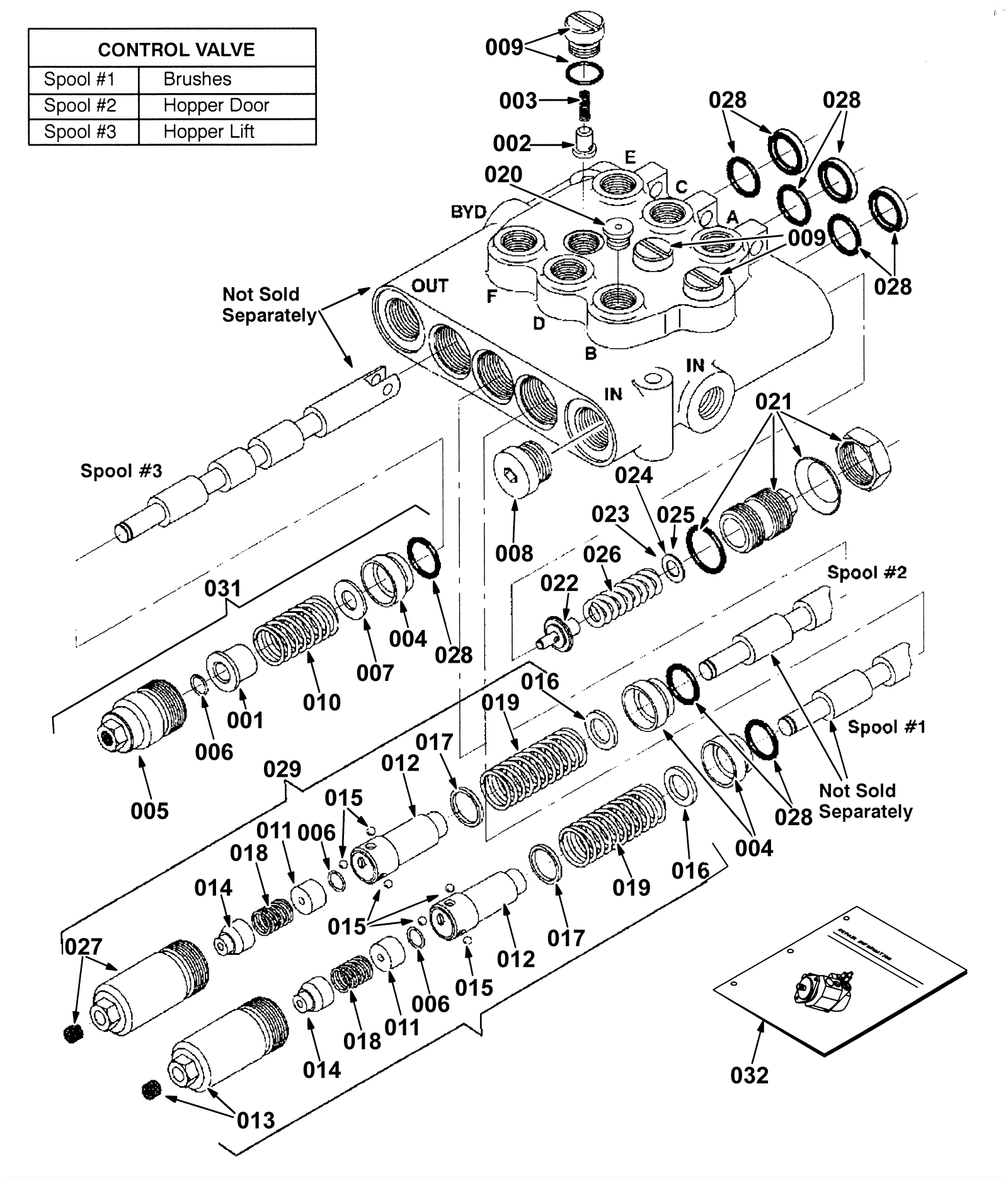

Hydraulic Steering valve Breakdown, 74172

#PartDescription ReqNotesAvailability
000 275-4077 VALVE, HYD, MNL, 3SPOOL 2150PSI 10GPM (OBSOLETE) 1 (Includes 001 - 031)
001 275-0947 Spacer (OBSOLETE) 1
002 275-4078 Plunger (Tennant Industrial) 1
003 275-4079 VR, SPRING, VALVE, HYD [EN] (Tennant Industrial) 1
004 275-0948 Bushing 3
005 275-0949 Cap 1
006 275-0952 Ring retainer 3
007 275-0946 Washer 1
008 175-8191 VR, FITTING, HYD, PLUG, OM08 (Tennant Industrial) 1
009 275-0954 Plug and o-ring 3
010 275-0955 Spring 1
011 275-3986 PLATE, RETAINER (Tennant Industrial) 2
012 275-4080 VR, ADAPTER, DETENT, VALVE, HYD (Tennant Industrial) 2
013 275-3988 PLATE, RETAINER (Tennant Industrial) 1
014 275-4081 VR, CONE, VALVE, HYD (Tennant Industrial) 2
015 275-4082 VR, BALL, VALVE, HYD (Tennant Industrial) 6
016 275-4083 VR, WASHER, VALVE, HYD (Tennant Industrial) 2
017 275-4084 VR, WASHER, VALVE, HYD (Tennant Industrial) 2
018 275-4085 VR, SPRING, VALVE, HYD (Tennant Industrial) 2
019 275-4086 VR, SPRING [EN] (Tennant Industrial) 2
020 275-3472 VR, FITTING, PLUG, ORG, #6, VALVE [CEC] (Tennant Industrial 2
021 275-0950 Plug assemby 1
022 275-4087 VR, POPPET, VALVE, HYD [EN] (Tennant Industrial) 1
023 275-0953 Shim .035 thk (OBSOLETE)
024 275-0957 Shim 0315 thk (OBSOLETE)
025 275-0958 Shim .010 thk
026 N/A Not available 1 VR, SPRING, VALVE, HYD (Tennant Industrial)
027 275-4089 VR, CAP ASSY [EN] (Tennant Industrial) 1
028 275-0959 Seal kit 1
029 275-4090 VR, DETENT KIT, OUT, VALVE, HYD [EN] (Tennant Industrial) 1
030 275-4091 VR, DETENT KIT, VALVE, HYD (Tennant Industrial) 1
031 275-4092 VR, DETENT KIT, IN [EATON] (Tennant Industrial) 1
032 275-0960 Valve repair instruction (Tennant Industrial) 1
