| # | Part | Description |
Req | Notes | Availability |
|---|

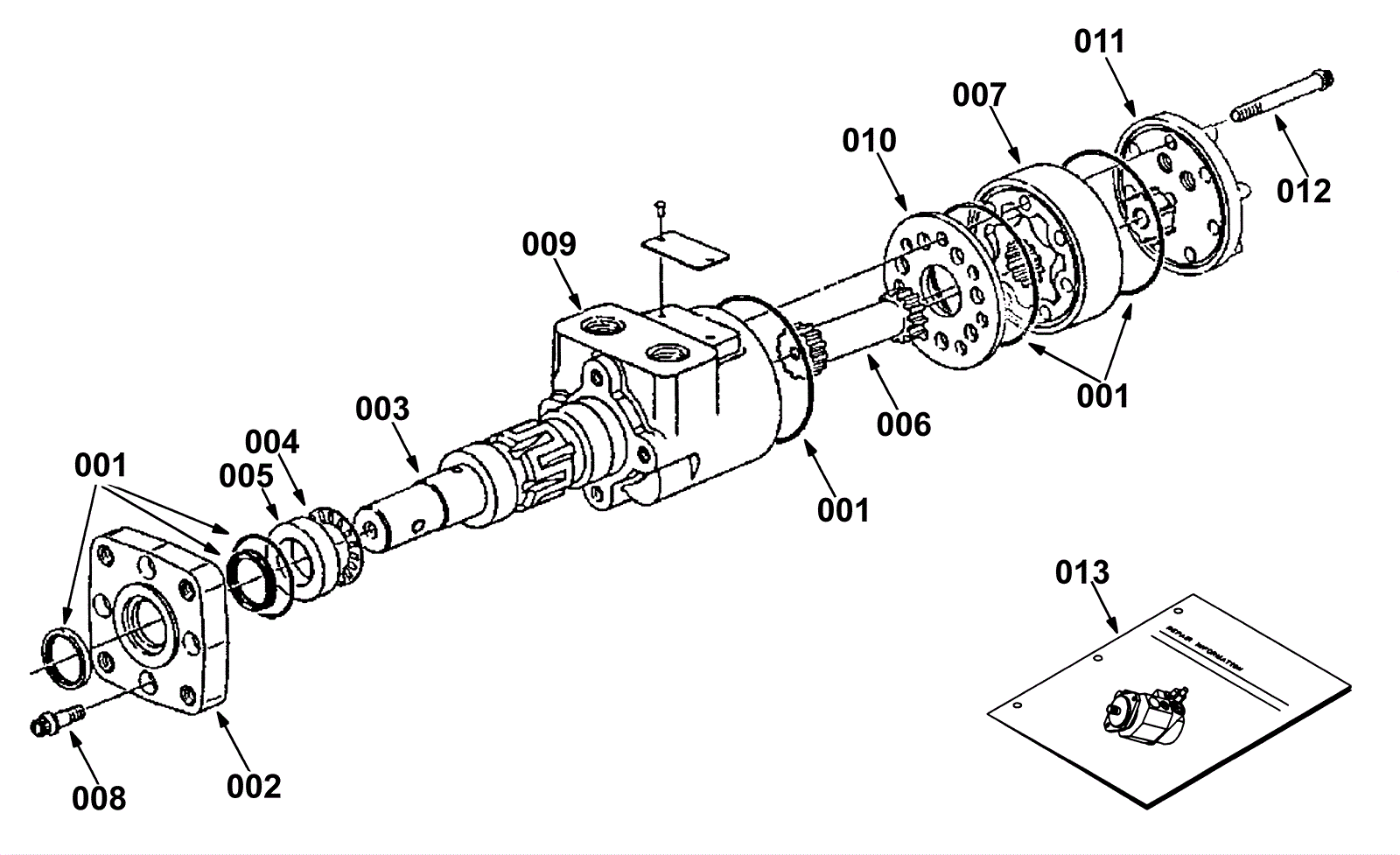

000 |
175-6892
|
MOTOR, HYD, GEAR, INT 17.9 BI-DIR 1500 (Tennant Industrial) |
1 |
(Includes 001 - 012) |
|
001 |
175-8242
|
VR, SEAL KIT, MOTOR [CL] (Tennant Industrial) |
1 |
|
|
002 |
175-8243
|
VR, FLANGE, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
003 |
175-8244
|
VR, SHAFT, OUTPUT, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
004 |
175-8245
|
Bearing thrust |
1 |
|
|
005 |
175-8246
|
Thrust race |
1 |
|
|
006 |
175-8247
|
Drive (Tennant Industrial) |
1 |
|
|
007 |
N/A
|
Not available |
1 |
VR, GEROTOR SET, MOTOR, HYD [EN] (Tennant Industrial)
|
|
008 |
175-8249
|
Screw |
4 |
|
|
009 |
175-8250
|
VR, HOUSING, MOTOR, HYD [EN] (Tennant Industrial) |
1 |
|
|
010 |
175-8251
|
Spacer plate (Tennant Industrial) |
1 |
|
|
011 |
175-8252
|
End cap (Tennant Industrial) (OBSOLETE) |
1 |
|
|
012 |
175-8253
|
VR, SCREW, CAP, MOTOR, HYD [EN] (Tennant Industrial) |
5 |
|
|
013 |
175-8254
|
VR, INSTR, MOTOR, HYD, REPAIR [EN] (Tennant Industrial) |
1 |
|
|
