| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
N/A
|
Not available |
1 |

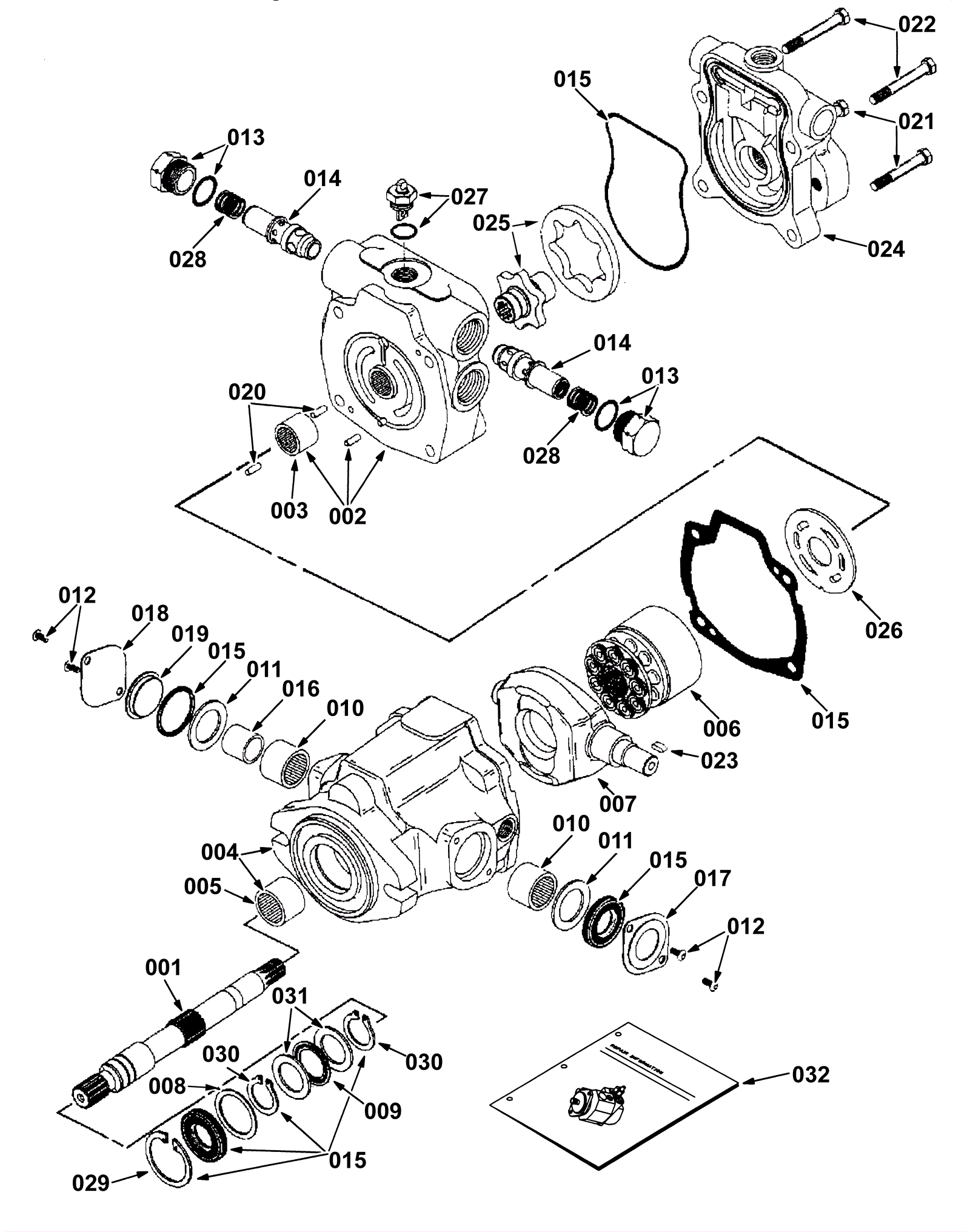

Hydraulic piston pump |
|
001 |
275-3452
|
VR, DRIVESHAFT, PUMP, HYD (Tennant Industrial) |
1 |
|
|
002 |
275-4006
|
VR, PLATE, BACK, PUMP, HYD (Tennant Industrial) |
1 |
(Includes 003) |
|
003 |
275-4007
|
VR, BEARING, RLR (Tennant Industrial) |
1 |
|
|
004 |
275-4008
|
VR, HOUSING, PUMP, HYD (Tennant Industrial) |
1 |
(Includes 005) |
|
005 |
275-4009
|
VR, BEARING, RLR (Tennant Industrial) |
1 |
|
|
006 |
275-4010
|
VR, PUMP KIT, HYD, ROTATING [CESSNA] (Tennant Industrial) |
1 |
|
|
007 |
275-4011
|
VR, CAM, PUMP, HYD [CESSNA] (Tennant Industrial) |
1 |
|
|
008 |
175-8169
|
VR, WASHER, FLAT, PUMP, HYD (Tennant Industrial) |
1 |
|
|
009 |
175-8172
|
VR, BEARING, THRUST, PUMP, HYD (Tennant Industrial) |
1 |
|
|
010 |
275-4012
|
VR, BEARING, CAM (Tennant Industrial) |
2 |
|
|
011 |
275-4013
|
VR, WASHER, PUMP, HYD [EN] (Tennant Industrial) |
2 |
|
|
012 |
275-4014
|
VR, SCREW, PUMP, HYD [EN] (Tennant Industrial) |
4 |
|
|
013 |
175-8179
|
VR, FITTING ASSY, PLUG, ORG (Tennant Industrial) |
2 |
|
|
014 |
N/A
|
Not available |
2 |
Relief valve |
|
015 |
275-4016
|
VR, SEAL KIT, PUMP [CE] (Tennant Industrial) (OBSOLETE) |
1 |
|
|
016 |
275-4017
|
VR, BEARING, RACE, INNER, HYD PUMP (Tennant Industrial) |
1 |
|
|
017 |
275-4018
|
VR, COVER, PUMP, HYD [CESSNA] (Tennant Industrial) |
1 |
|
|
018 |
275-4019
|
VR, COVER, TRUNION, PUMP, HYD [CESSNA] (Tennant Industrial) |
1 |
|
|
019 |
275-4020
|
VR, COVER, 0RG (Tennant Industrial) |
1 |
|
|
020 |
175-8186
|
VR, PIN, DOWEL, PUMP, HYD (Tennant Industrial) |
2 |
|
|
021 |
275-4021
|
VR, SCREW, PUMP, HYD (Tennant Industrial) |
2 |
|
|
022 |
275-4022
|
VR, SCREW, PUMP, HYD (Tennant Industrial) |
2 |
|
|
023 |
175-8189
|
VR, KEY, SHAFT, PUMP, HYD (Tennant Industrial) |
1 |
|
|
024 |
275-4023
|
VR, ADAPTER ASSY, PUMP, HYD (OBSOLETE) |
1 |
|
|
025 |
275-4024
|
VR, GEROTOR, PUMP, HYD (Tennant Industrial) |
1 |
|
|
026 |
175-8190
|
VR, PLATE, VALVE, PUMP, HYD (Tennant Industrial) |
1 |
|
|
027 |
275-4025
|
VR, VALVE, DUMP, PUMP, HYD [CESSNA] (Tennant Industrial) |
1 |
|
|
028 |
175-8178
|
VR, SPRING CMPR, PUMP, HYD (Tennant Industrial) |
2 |
|
|
029 |
175-8170
|
VR, RING, RETAINING, PUMP, HYD (Tennant Industrial) |
1 |
|
|
030 |
175-8205
|
VR, RING, RETAINING (Tennant Industrial) |
2 |
|
|
031 |
175-8173
|
VR, RACE, BRG, PUMP, HYD (Tennant Industrial) |
2 |
|
|
032 |
275-4026
|
VR, LIT, REPAIR INFO, PUMP, F/74465 (Tennant Industrial) |
1 |
|
|
