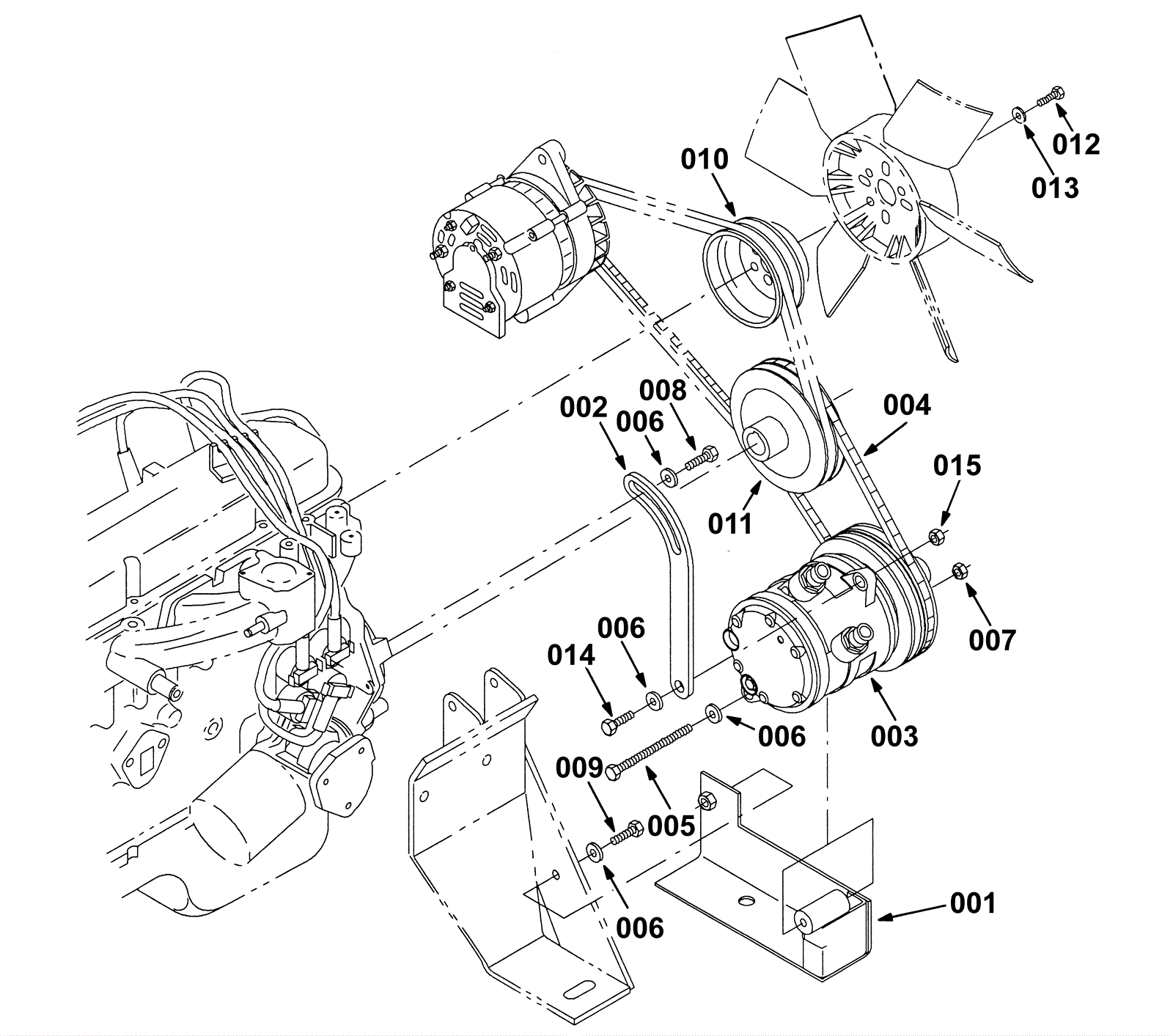

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-3894
|
Compressor mounting bracket (Tennant Industrial) (OBSOLETE) |
1 |
|
|
002 |
275-3895
|
ARM, ADJ, COMPRESSOR, A/C (Tennant Industrial) (OBSOLETE) |
1 |
|
|
003 |
275-3896
|
COMPRESSOR, A/C [134, TM-08HD] (Tennant Industrial) |
1 |
|
|
004 |
275-3897
|
BELT, V, 33.0L, COGGED [A-31] (Tennant Industrial) |
1 |
|
|
005 |
275-3898
|
SCREW, HEX, .38-16 X 4.00, G5 (Tennant Industrial) |
1 |
|
|
006 |
999-0120
|
Washer 3/8 SAE flat |
4 |
|
|
007 |
175-6922
|
Nut 3/8 - 16 hex lock |
1 |
|
|
008 |
999-0039
|
Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated |
1 |
|
|
009 |
275-3879
|
SCREW, HEX, .31-18 X 1.00, G5 (Tennant Industrial) |
1 |
|
|
010 |
275-3899
|
SHEAVE, PUMP, WATER (Tennant Industrial) (OBSOLETE) |
1 |
|
|
011 |
275-3900
|
SHEAVE, CSHFT (Tennant Industrial) |
1 |
|
|
012 |
175-6758
|
Screw M6-1 x 30mm hex head |
3 |
|
|
013 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
3 |
|
|
014 |
999-0255
|
Screw 10-24 x 3 1/2 flat head slotted zinc plated |
1 |
|
|
015 |
175-6922
|
Nut 3/8 - 16 hex lock |
1 |
|
|
