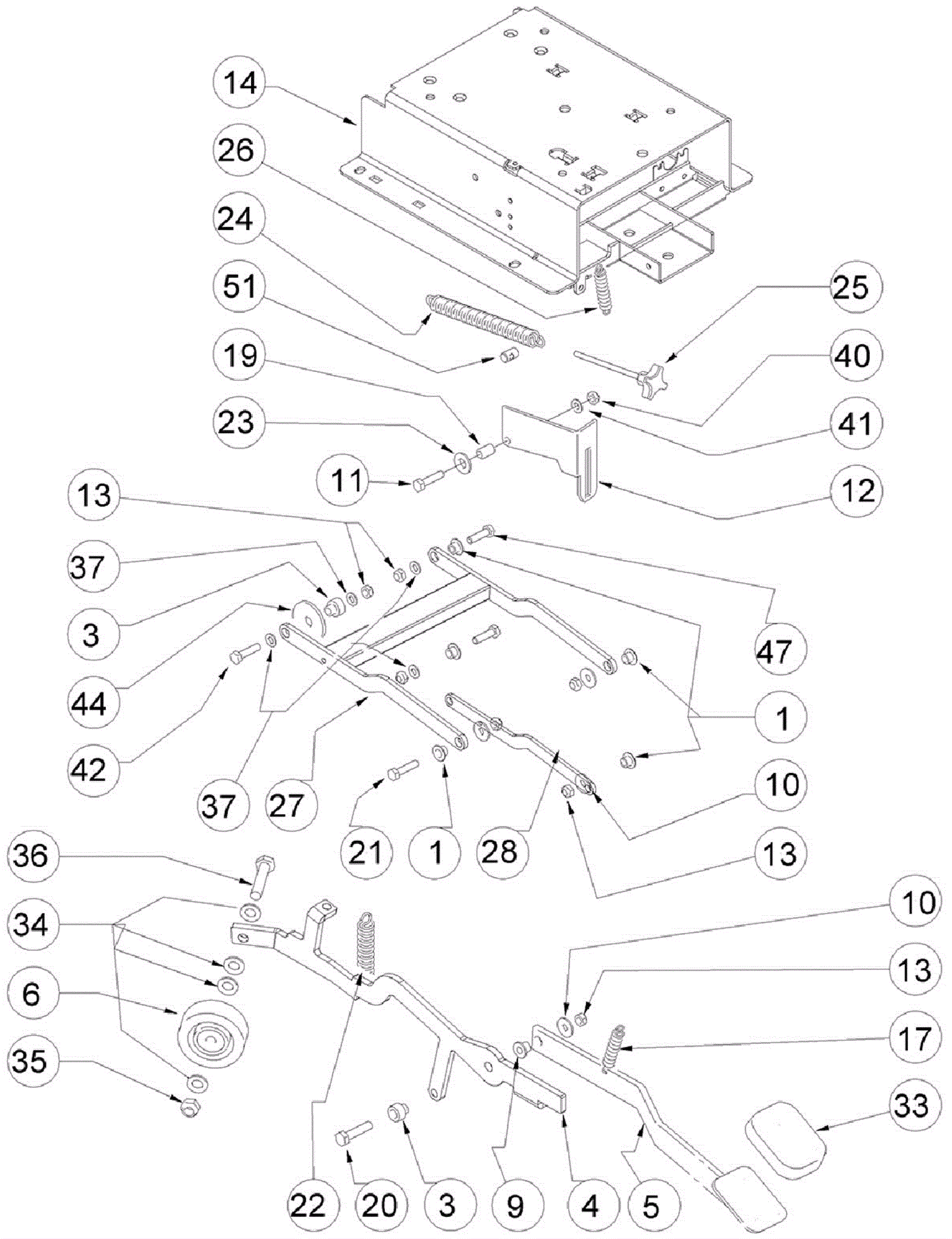

T290 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-9724 Brush deck support bushing $5.50 5 usually ships 10-16 days
3 375-9688 Bushing $17.27 2 ships same day
4 375-9689 Lever $137.94 1 usually ships 10-16 days
5 375-9690 Brush head lifting pedal $48.29 1 usually ships 10-16 days
6 375-9691 Brush wheel $331.65 1 usually ships 10-16 days
9 375-9694 Bushing $31.46 1 ships same day
10 375-9615 Washer D. 8 x 24 inox $2.90 4 ships same day
11 375-9532 Screw 6 x 20 inox $3.96 1 ships same day
12 375-9696 Plate $21.89 1 usually ships 10-16 days
13 375-9619 Nut M8 inox Call for price 7 usually ships 10-16 days
14 375-9697 Base tank $443.41 1 usually ships 10-16 days
17 375-9700 Spring $17.49 1 usually ships 10-16 days
19 375-9701 Bushing $9.79 1 ships same day
20 375-9702 Screw M8 x 50 inox $3.96 1 ships same day
21 375-9703 Screw M8 x 25 inox $3.96 3 usually ships 10-16 days
22 375-9704 Spring $8.80 1 usually ships 10-16 days
23 375-9658 Washer nylon $2.90 1 ships same day
24 375-9705 Spring $14.63 1 usually ships 10-16 days
25 375-9706 Handwheel $26.40 1 usually ships 10-16 days
26 375-9707 Spring $28.05 1 usually ships 10-16 days
27 375-9708 Main head arm $137.28 1 usually ships 10-16 days
28 375-9709 Parallelogram arm $25.08 1 usually ships 10-16 days
33 375-9710 Cover $7.59 1 usually ships 10-16 days
34 375-9714 Washer D12 x 24 inox $2.90 4 usually ships 10-16 days
35 375-9712 Nut M12 inox $3.43 1 usually ships 10-16 days
36 375-9713 Screw M12 x 60 $3.96 1 usually ships 10-16 days
37 375-9652 Washer D. 8 inox $2.90 4 usually ships 10-16 days
40 375-9499 Nut M6 inox $3.43 5 usually ships 10-16 days
41 375-9508 Washer D. 6 inox $2.90 1 usually ships 10-16 days
42 375-9715 Screw M8 x 35 $3.96 1 usually ships 10-16 days
44 375-9717 Gasket $20.24 1 usually ships 10-16 days
47 375-9722 Screw M8 x 30 $3.96 2 usually ships 10-16 days
51 375-9721 Support spring $13.75 1 usually ships 10-16 days
