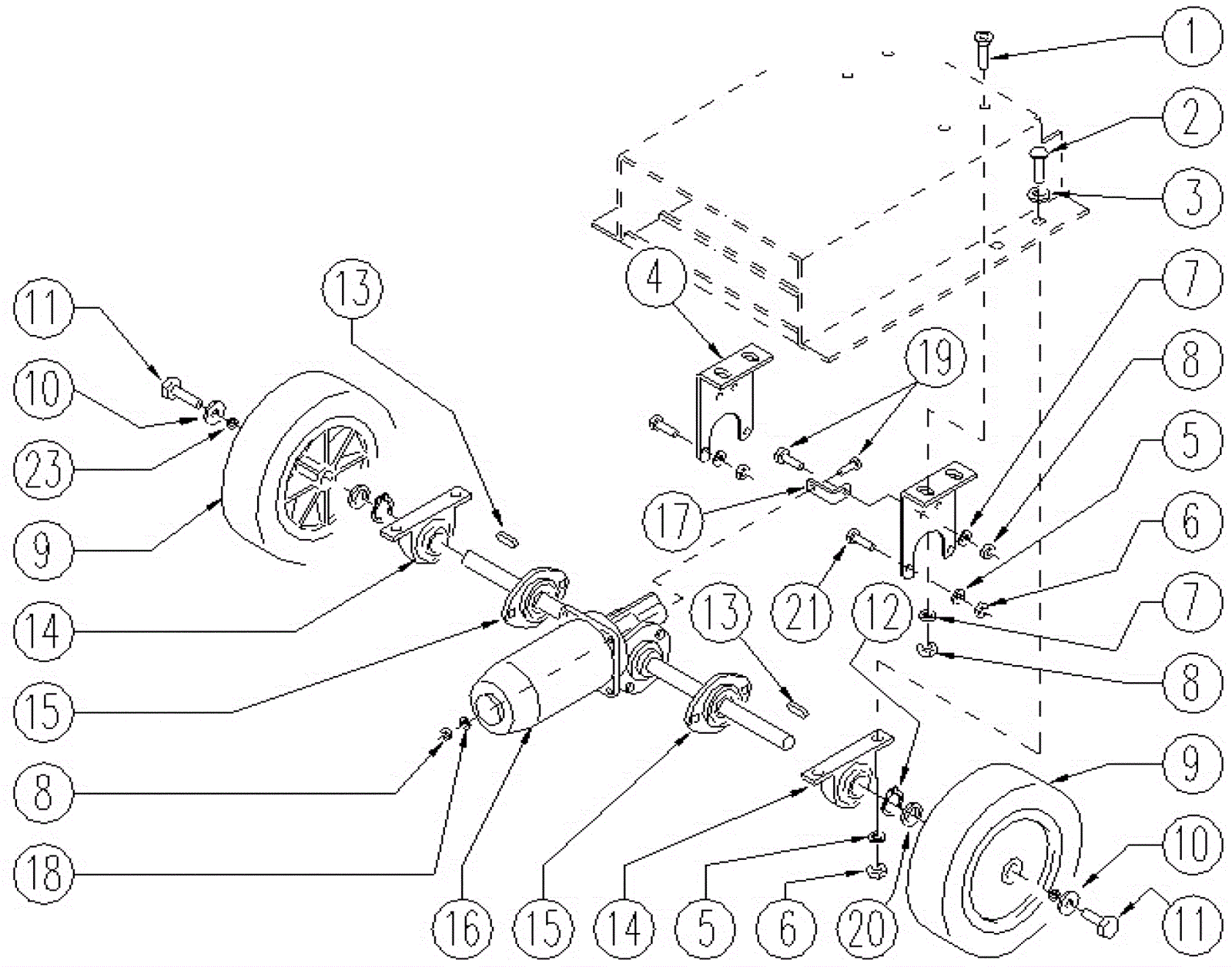

T290 Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1723 Screw M6 x 20 $0.99 4 usually ships 5-16 days
2 375-9765 Screw $1.06 4 usually ships 5-16 days
3 375-9714 Washer D12 x 24 inox $27.61 4 usually ships 5-16 days
4 375-9766 Motor bracket $27.72 2 usually ships 5-16 days
5 375-9652 Washer D. 8 inox $24.64 8 usually ships 5-16 days
6 375-9619 Nut M8 inox Call for price 8 usually ships 5-16 days
7 375-9536 Washer D. 6 x 18 inox $2.29 5 usually ships 5-16 days
8 375-9499 Nut M6 inox $28.05 6 usually ships 5-16 days
9 375-9767 Wheel $117.81 2 usually ships 5-16 days
10 375-9615 Washer D. 8 x 24 inox $2.29 2 ships same day
11 375-9684 Screw M8 x 16 $23.87 2 usually ships 5-16 days
12 375-9768 Circlip $27.39 2 usually ships 5-16 days
13 375-9769 Key $0.99 2 usually ships 5-16 days
14 375-1724 Bearing $65.97 2 usually ships 5-16 days
15 375-1725 Bearing $64.46 2 usually ships 5-16 days
16a 375-9773 24V motor $1,141.44 1 usually ships 5-16 days
16b 375-9772 Carbon $25.63 2 usually ships 5-16 days
17 375-9774 Small square $12.43 1 usually ships 5-16 days
18 375-9508 Washer D. 6 inox $2.29 1 usually ships 5-16 days
19 375-9532 Screw 6 x 20 inox $0.99 2 ships same day
20 375-9775 Washer $2.29 2 usually ships 5-16 days
21 375-9703 Screw M8 x 25 inox $23.87 4 usually ships 5-16 days
22 375-9732 Washer D8 $24.64 2 usually ships 5-16 days
