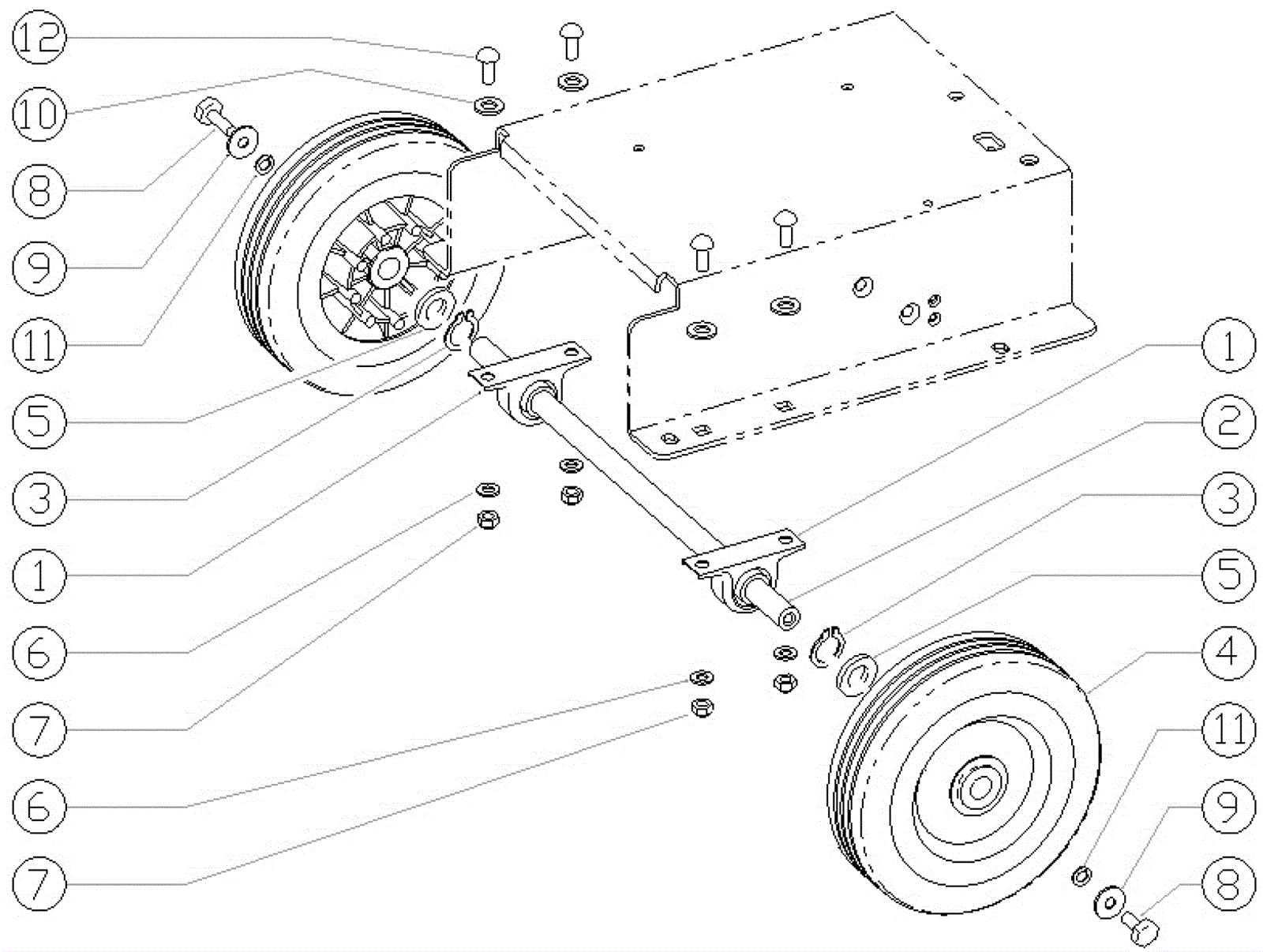

T290 Wheel Assembly (Pad Assist Model)

#PartDescriptionPriceReqNotesAvailability
1 375-1718 Axle bearing $114.65 2 usually ships 5-16 days
2 375-1719 Axle $89.85 1 usually ships 5-16 days
3 375-1720 D17 ring $1.32 2 usually ships 5-16 days
4 375-1721 Wheel $108.11 2 usually ships 5-16 days
5 375-1722 Washer M17.5 x 1.5 $2.29 4 usually ships 5-16 days
6 375-9652 Washer D. 8 inox $24.64 4 usually ships 5-16 days
7 375-9619 Nut M8 inox Call for price 4 usually ships 5-16 days
8 375-9684 Screw M8 x 16 $23.87 2 usually ships 5-16 days
9 375-9615 Washer D. 8 x 24 inox $2.29 2 ships same day
10 375-9714 Washer D12 x 24 inox $27.61 4 usually ships 5-16 days
11 375-9732 Washer D8 $24.64 2 usually ships 5-16 days
12 375-9765 Screw $1.06 4 usually ships 5-16 days
