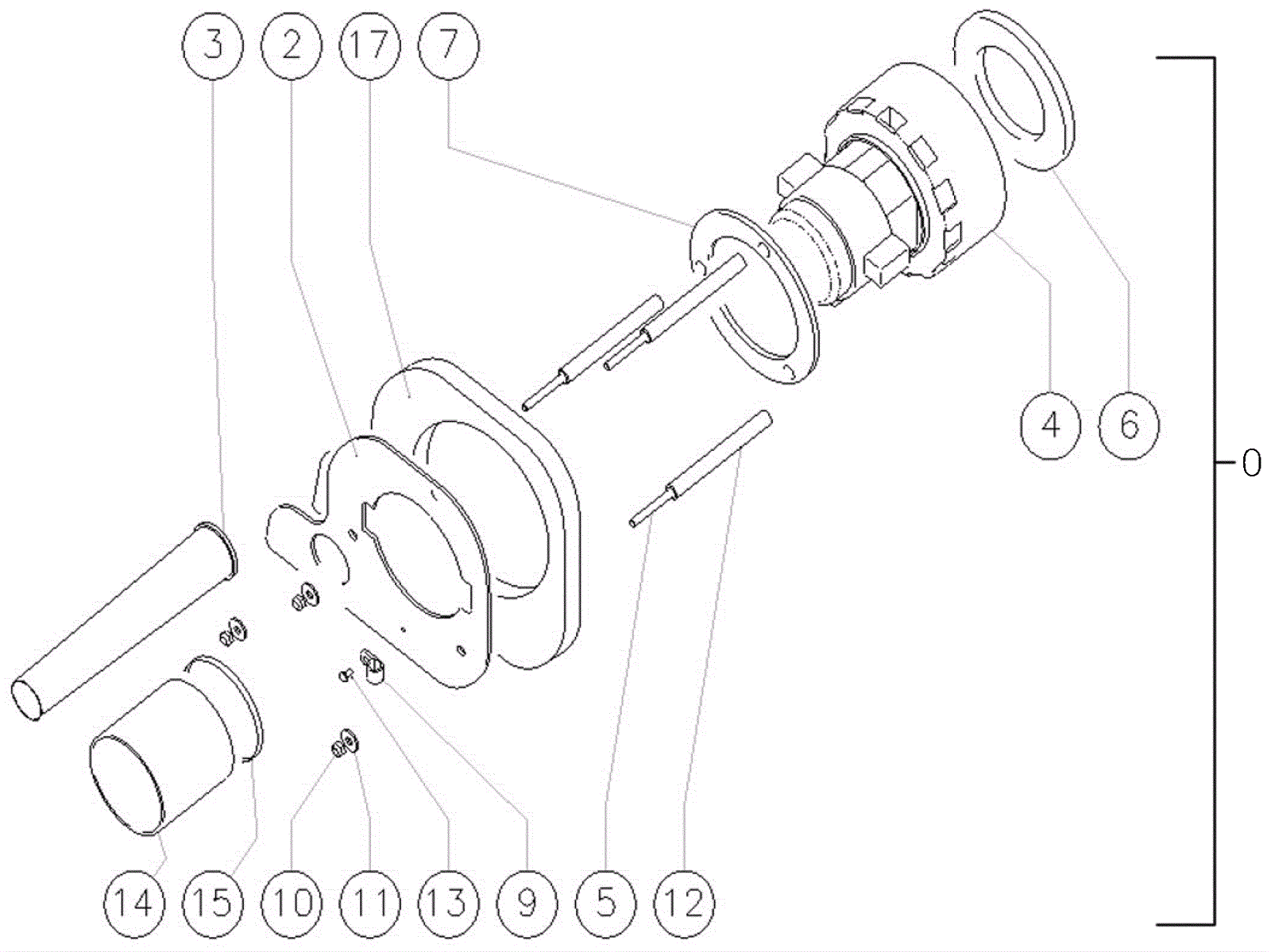

T290 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-1714 Vacuum motor assembly $403.70 1 (includes 2-4a, 6-9, 13-17) usually ships 10-16 days
2 375-9629 Flange $27.61 1 usually ships 10-16 days
3 375-9630 Tube $14.08 1 usually ships 10-16 days
4a 375-9632 Vacuum fan $423.39 1 usually ships 10-16 days
4b 375-9631 Vacuum fan brush motor $29.15 2 usually ships 10-16 days
4c 675-9802 Vacuum fan $237.60 1 usually ships 10-16 days
4d 991-1203 24V 2 stage vacuum motor tangential $242.29 1 usually ships 14-21 days
5 375-9633 Rod $15.51 3 usually ships 10-16 days
6 375-9634 Vacuum motor gasket $22.00 1 usually ships 10-16 days
7 375-9635 Nylon flange $8.58 1 usually ships 10-16 days
9 375-9636 Clamp $1.45 1 usually ships 10-16 days
10 375-9499 Nut M6 inox $3.70 3 usually ships 10-16 days
11 375-9536 Washer D. 6 x 18 inox $3.17 3 usually ships 10-16 days
12 375-9637 Spacer $9.35 3 usually ships 10-16 days
13 375-9638 Screw M4 x 8 $4.36 1 usually ships 10-16 days
14 375-9639 Tube $34.21 1 usually ships 10-16 days
15 375-9640 Clamp $4.88 1 usually ships 10-16 days
17 375-9641 Sound proofing $25.74 1 usually ships 10-16 days
