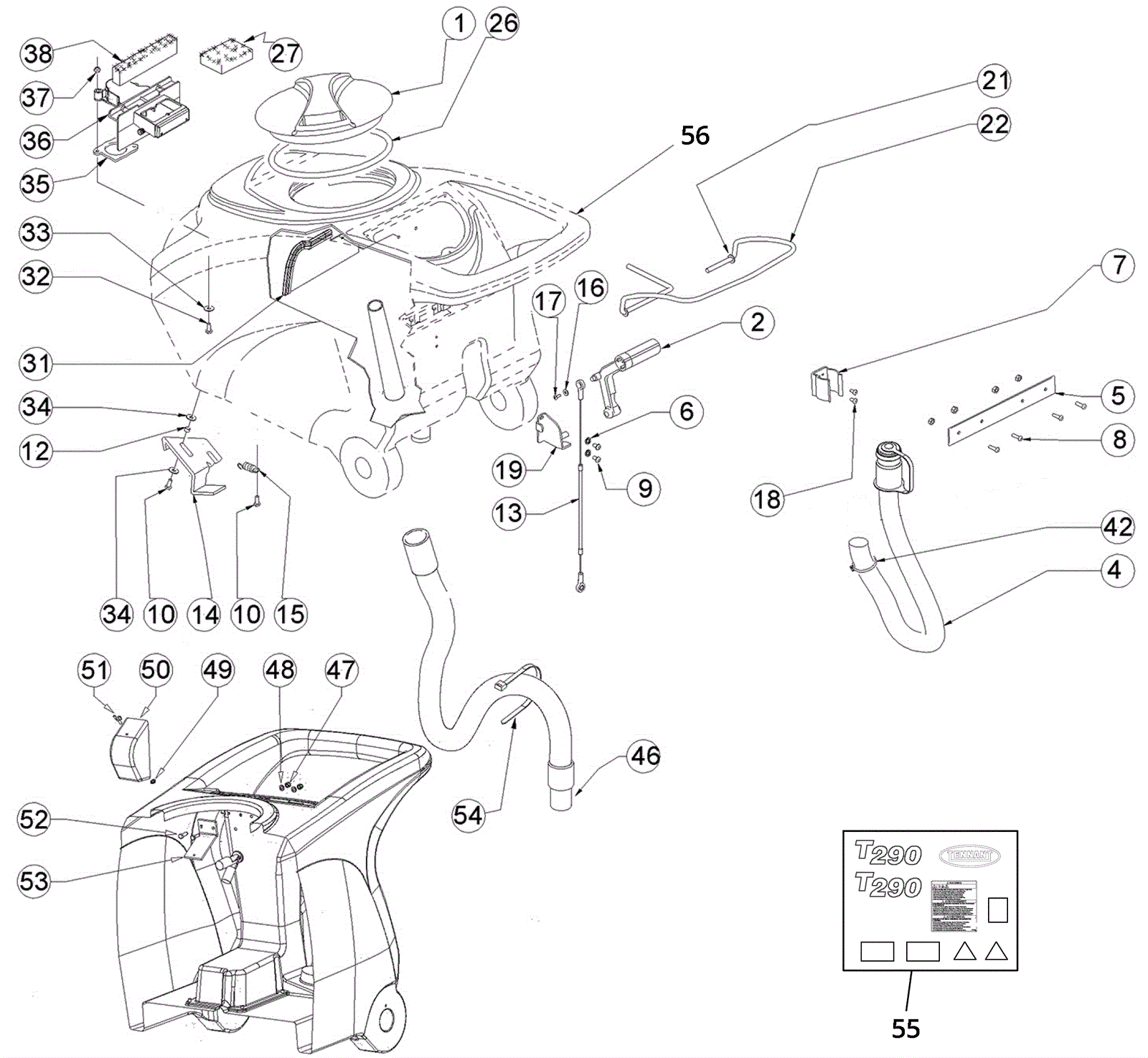

T290 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-1708 Recovery tank cap $58.63 2 usually ships 10-16 days
2 375-9643 Squeegee lift lever $58.74 1 usually ships 10-16 days
4 675-9481 Drain hose assembly $77.22 1 usually ships 10-16 days
5 375-9644 Plate $11.55 1 usually ships 10-16 days
6 375-9480 Washer D. 5 inox $3.17 2 usually ships 10-16 days
7 375-9645 Recovery hose clip $42.90 1 ships same day
8 375-9483 Screw M5 x 16 inox $0.50 4 ships same day
9 375-1709 Screw M5 x 12 inox $4.36 2 usually ships 10-16 days
10 999-1600 Screw M6 x 16 pan head zinc $0.99 3 ships same day
12 375-9646 Spacer $3.43 1 usually ships 10-16 days
13 375-9647 Squeegee lift cable $38.28 1 usually ships 10-16 days
14 375-9648 Handle $23.43 1 ships same day
15 375-9649 Spring $10.56 1 ships same day
16 375-9577 Washer 4-16 inox $3.17 1 usually ships 10-16 days
17 375-9650 Screw M4 x 12 zinc $4.36 1 usually ships 10-16 days
18 375-9516 Screw M4 x 10 inox $4.36 2 usually ships 10-16 days
19 375-1710 Squeegee lift bracket $84.48 1 usually ships 10-16 days
21 375-9652 Washer D. 8 inox $3.17 2 usually ships 10-16 days
22 375-9653 Handle activation lever $46.64 1 usually ships 10-16 days
26 375-9654 Recovery tank cover seal $46.86 1 usually ships 10-16 days
27 375-9655 Vacuum filter $15.62 1 usually ships 10-16 days
31 375-9656 Plate $16.50 1 usually ships 10-16 days
32 375-9657 Screw M4 x 25 $4.36 2 usually ships 10-16 days
33 375-9531 Washer D. 4 inox $3.17 2 usually ships 10-16 days
34 375-9658 Washer nylon $3.17 4 ships same day
35 375-9659 Gasket $3.70 1 usually ships 10-16 days
36 375-9660 Box $39.60 1 usually ships 10-16 days
37 375-9661 Nut M4 inox $3.70 2 usually ships 10-16 days
38 375-9662 Gasket $20.90 1 usually ships 10-16 days
42 375-1711 Clamp 30-45 $11.44 1 usually ships 10-16 days
46 675-9478 Hose $42.57 1 (includes 54) usually ships 10-16 days
47 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
48 375-9666 Washer D5 inox $3.17 4 usually ships 10-16 days
49 375-9667 Washer $23.43 1 usually ships 10-16 days
50 375-9668 Protection $6.38 1 usually ships 10-16 days
51 375-9669 Screw M4 x 10 $4.36 1 usually ships 10-16 days
52 375-9481 Screw M5 x 20 $4.36 2 usually ships 10-16 days
53 375-9670 Bracket $9.24 1 usually ships 10-16 days
54 375-9671 Clamp $12.32 1 usually ships 10-16 days
55 375-1712 Decal kit $50.16 1 usually ships 10-16 days
56 375-1713 Recovery tank $573.10 1 usually ships 10-16 days
