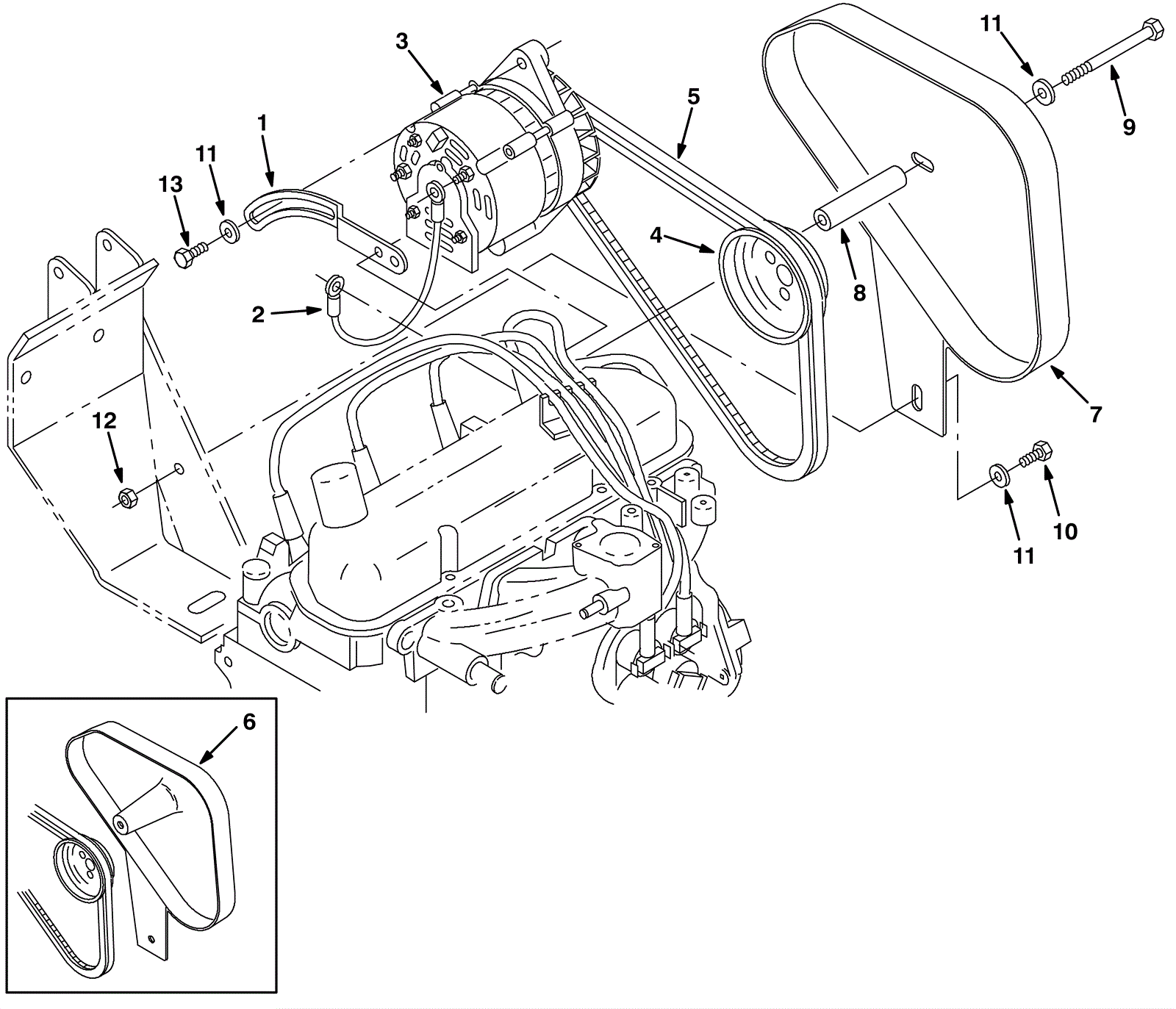

7400 Alternator Assembly - Before SN 007000

#PartDescriptionPriceReqNotesAvailability
1 275-6658 Alternator adjustment arm (TENNANT INDUSTRIAL) $43.25 1 usually ships 1-5 days
2 275-6700 WIRE, 10GA 09.0L BLK (TENNANT INDUSTRIAL) $39.08 1 usually ships 1-5 days
3a 275-0403 Alternator (Tennant Industrial) $1,102.37 1 (includes 3b-3f) usually ships 1-5 days
3b 275-0404 VR, REGULATOR, ALTERNATOR, 12VDC (Tennant Industrial) $307.28 1 usually ships 1-5 days
3c 175-9071 Ball bearing 43/64 x 1-37/64 x 15/32 $16.30 1 usually ships 1-5 days
3d 275-0405 VR, KIT, BRUSH, ALTERNATOR (Tennant Industrial) $17.03 1 usually ships 1-5 days
3e 275-0406 VR, RECTIFIER, ALTERNATOR (Tennant Industrial) $94.86 1 usually ships 1-5 days
3f 275-0407 VR, PULLEY, ALTERNATOR (Tennant Industrial) $32.73 1 usually ships 1-5 days
4 275-6656 Sheave (TENNANT INDUSTRIAL) $131.26 1 usually ships 1-5 days
5a 275-6691 BELT, V, 33.0L (TENNANT INDUSTRIAL) (OBSOLETE) $54.94 1 (before SN 003313) usually ships 5-16 days
5b 275-6678 Belt (TENNANT INDUSTRIAL) $37.74 1 (after SN 003312) usually ships 1-5 days
6 275-6664 Belt guard kit (TENNANT INDUSTRIAL) $562.79 1 (before SN 004034) usually ships 1-5 days
7 275-6662 Alternator belt guard (TENNANT INDUSTRIAL) $507.68 1 (after SN 004033) usually ships 1-5 days
8 275-6663 Tube (TENNANT INDUSTRAIL) $61.29 1 (after SN 004033) usually ships 1-5 days
9 999-1384 Screw M8-1.25 x 120mm hex head full thread 8.8 grade $3.76 1 (after SN 004033) ships same day
10 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.99 1 (after SN 004033) ships same day
11 999-0024 Washer 5/16 flat stainless steel $1.34 3 (after SN 004033) ships same day
12 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 (after SN 004033) ships same day
13 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 (after SN 004033) ships same day
