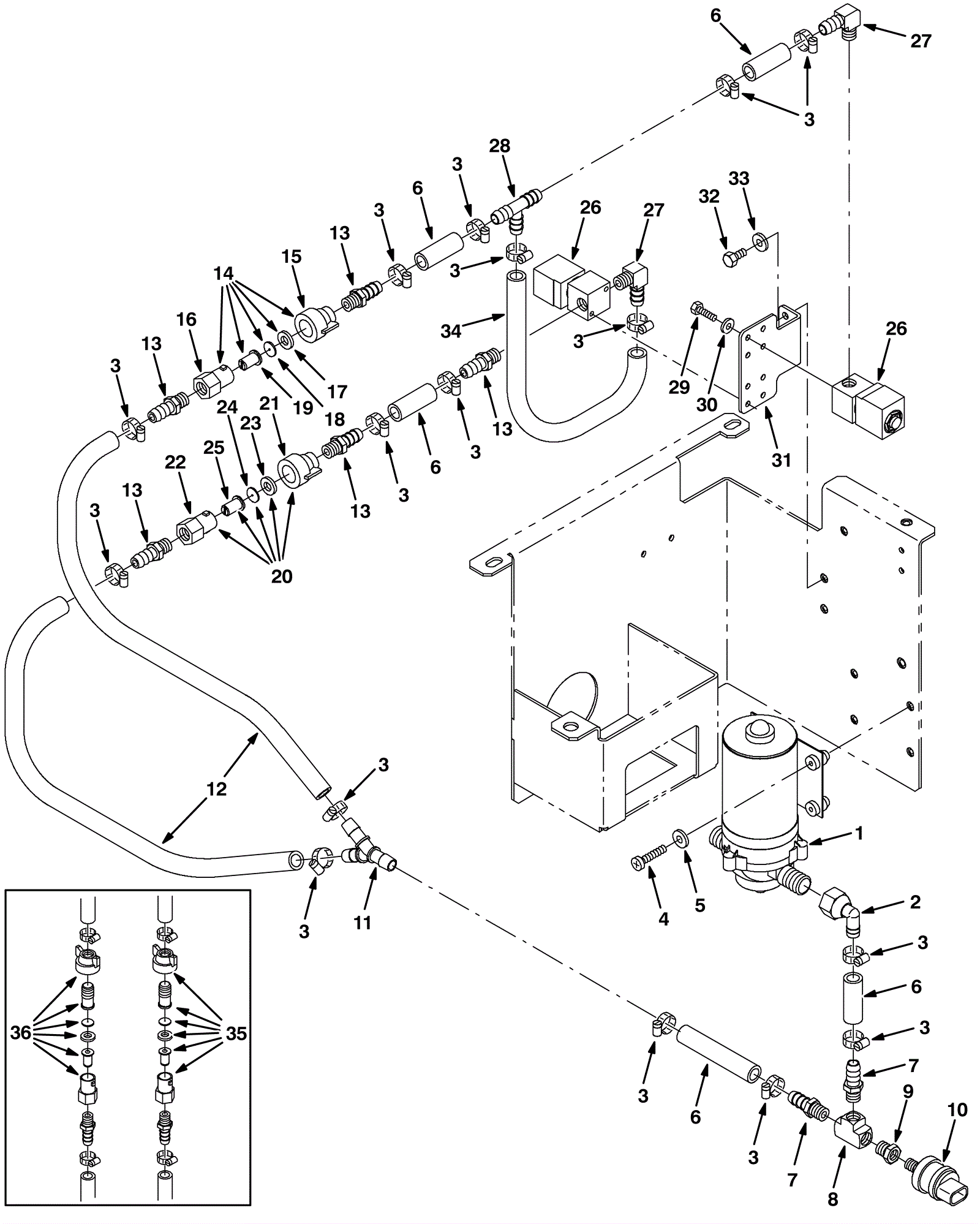

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
375-3857
|
12V solution pump (Tennant Industrial) |
1 |
|
|
2 |
375-1055
|
Plastic swivel fitting (Tennant Industrial) |
1 |
|
|
3 |
175-6081
|
Hose clamp |
16 |
|
|
4 |
175-0505
|
Screw M6-1 x 35mm pan head stainless steel |
4 |
|
|
5 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
6 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
5 |
|
|
7 |
275-9954
|
Plastic strainer fitting (Tennant Industrial) |
2 |
|
|
8 |
175-9700
|
Brass tee fitting |
1 |
|
|
9 |
175-4832
|
Straight fitting |
1 |
|
|
10 |
275-4670
|
Press switch |
1 |
|
|
11 |
175-5240
|
FITTING, PLSTC, Y, BM08/BM08/BM08, NYL (Tennant Industrial) |
1 |
|
|
12 |
175-5229
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria |
2 |
|
|
13 |
275-9954
|
Plastic strainer fitting (Tennant Industrial) |
5 |
(after SN 008085) |
|
14 |
375-3859
|
Orifice fitting assembly (Tennant Industrial) |
1 |
(includeds 15-19) (after SN 008085) |
|
15 |
175-8726
|
Plastic spray cap fitting |
1 |
(after SN 008085) |
|
16 |
175-7948
|
Plastic spray body fitting |
1 |
(after SN 008085) |
|
17 |
175-5246
|
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
(after SN 008085) |
|
18 |
375-3860
|
Orifice plate (Tennant Industrial) |
1 |
(after SN 008085) |
|
19 |
175-5248
|
Mesh screen |
1 |
(after SN 008085) |
|
20 |
375-3861
|
Orifice fitting assembly (Tennant Industrial) |
1 |
(includes 21-25) (after SN 008085) |
|
21 |
175-8726
|
Plastic spray cap fitting |
1 |
(after SN 008085) |
|
22 |
175-7948
|
Plastic spray body fitting |
1 |
(after SN 008085) |
|
23 |
175-5246
|
Washer 11/32 x 3/4 x 1/8 flat viton |
1 |
(after SN 008085) |
|
24 |
575-0322
|
PLATE, ORIFICE, 0.093ID (Tennant Industrial) |
1 |
(after SN 008085) |
|
25 |
175-5248
|
Mesh screen |
1 |
(after SN 008085) |
|
26 |
375-0994
|
12V water solenoid valve (Tennant Industrial) |
2 |
|
|
27 |
175-5226
|
Brass fitting |
2 |
|
|
28 |
175-3329
|
Plastic tee fitting |
1 |
|
|
29 |
275-0923
|
Screw M5 - 7/8 hex lock |
4 |
|
|
30 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
31 |
275-8333
|
BRACKET, MTG, VALVE, SOLENOID (Tennant Industrial) |
1 |
|
|
32 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
33 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
34 |
575-7804
|
HOSE, AFMKT, PVC, WIR, 0.50ID, 01FT, CLR (Tennant Industrial |
1 |
|
|
35 |
575-6338
|
FITTING ASSY, ORIFICE [.070B] F/ 1018533 (Tennant Industrial |
1 |
(between SN 007549-008085) |
|
36 |
575-6592
|
FITTING ASSY, ORIFICE [.093B] F/ 1018467 (Tennant Industrial |
1 |
(between SN 007549-008085) |
|
