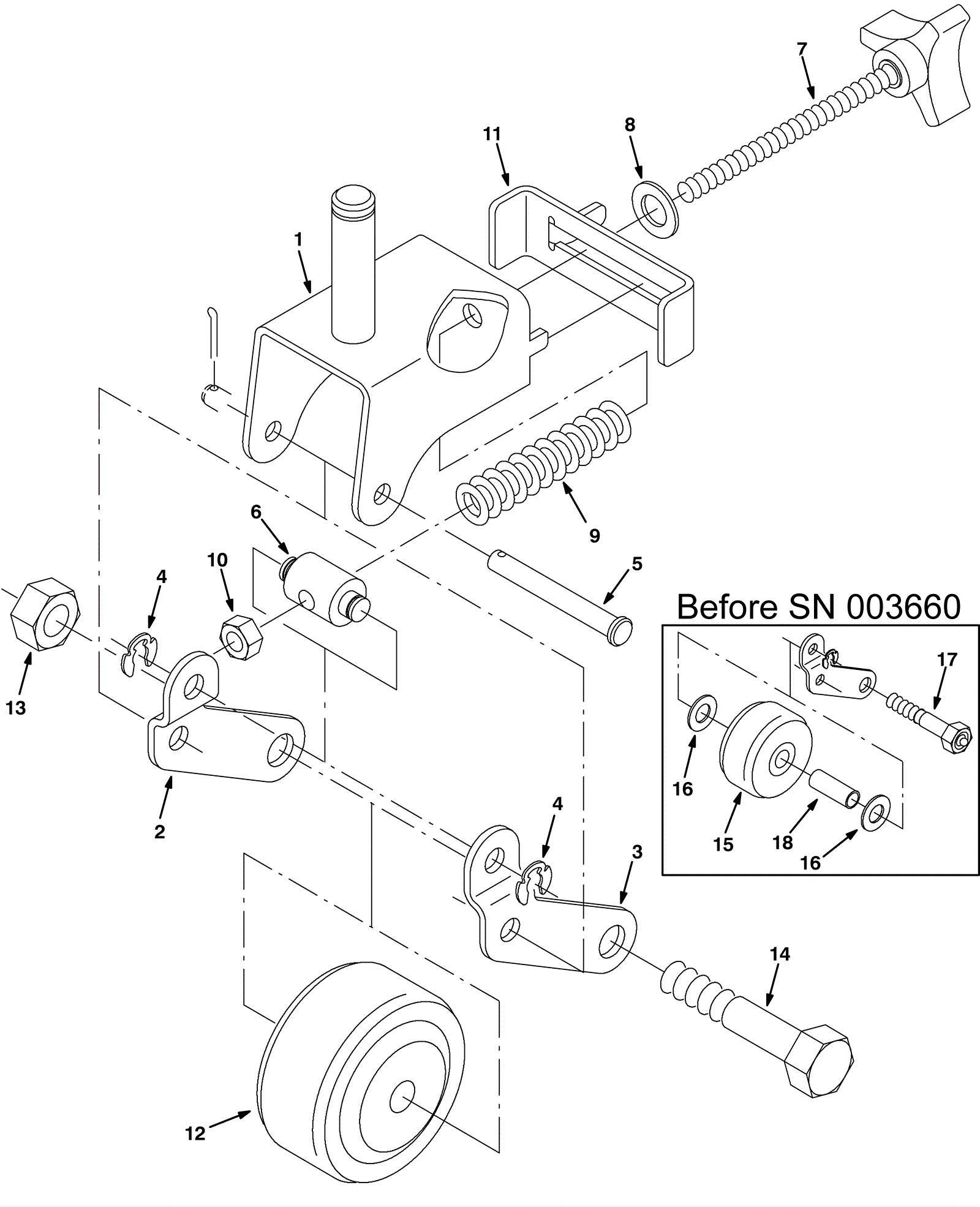

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-0317
|
BRACKET WLDT, CASTER, ADJ (OBSOLETEl) |
1 |
|
|
2 |
575-2590
|
BELLCRANK, WHEEL, CASTER, SQGE, RH (Tennant Industrial) |
1 |
|
|
3 |
575-2591
|
BELLCRANK, WHEEL, CASTER, SQGE, LH (Tennant Industrial) |
1 |
|
|
4 |
275-8506
|
RING, RETAINING, EXT, 0.38D, [KLIPRING] (Tennant Industrial |
2 |
|
|
5 |
275-5277
|
Clevis pin (Tennant Industrial) |
1 |
|
|
6 |
575-7541
|
BLOCK, ADJ, PIVOT (Tennant Industrial) |
1 |
|
|
7 |
175-3461
|
Knob |
1 |
|
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
9 |
575-1020
|
SPRING, CMPR, 0.66OD .09WIR 03.5L (Tennant Industrial) |
1 |
|
|
10 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
11 |
575-4570
|
BRACKET, LOCK, CASTER (Tennant Industrial) |
1 |
|
|
12 |
175-3481
|
WHEEL, 03.0D 1.38W 0.50B (Tennant Industrial) |
1 |
|
|
13 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
1 |
|
|
14 |
999-0640
|
Bolt 1/2-13 x 3 18-8 hex head stainless steel |
1 |
|
|
15 |
175-3481
|
WHEEL, 03.0D 1.38W 0.50B (Tennant Industrial) |
1 |
(Gas/LPG before SN 003661) (diesel) |
|
16 |
175-3347
|
Washer .61 thrust |
2 |
(Gas/LPG before SN 003661) (diesel) |
|
17 |
175-3483
|
SCREW, HEX, .50-13 X 2.75, G5 (Tennant Industrial) |
1 |
(Gas/LPG before SN 003661) (diesel) |
|
18 |
175-3483
|
SCREW, HEX, .50-13 X 2.75, G5 (Tennant Industrial) |
1 |
(Gas/LPG before SN 003661) (diesel) |
|
KIT1 |
275-5100
|
CASTER, SQGE (Tennant Industrial) (OBSOLETE) |
1 |
(includes 1-14) |
|
