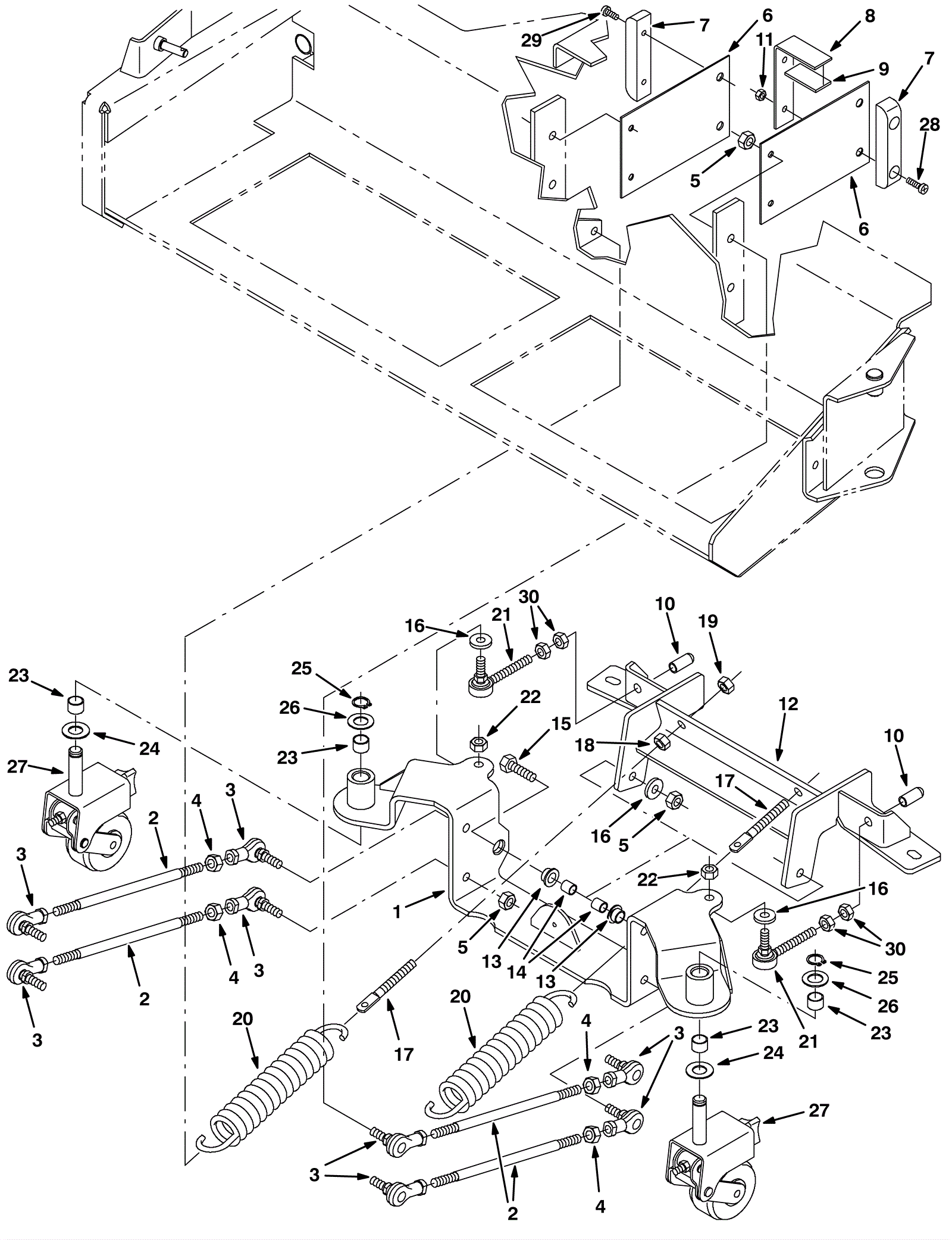

7400 Rear Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6037 BRACKET WLDT, SQGE, MAIN (Tennant Industrial) $1,097.19 1 usually ships 1-5 days
2 275-9096 ROD, THRD, 2 END, M10 X 1.5 09.4L (Tennant Industrial) $83.00 4 usually ships 6-16 days
3 175-0779 ROD-END, M10 X 1.5RH FEM M10 X 1.5STUD (Tennant Industrial) $72.65 8 usually ships 6-16 days
4 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 4 ships same day
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 10 ships same day
6 275-9479 SPRING, FLAT, .08, 4.50W X 07.0L (Tennant Industrial) $42.59 2 usually ships 1-5 days
7 175-3463 Centering block $25.10 2 usually ships 6-16 days
8 575-3679 BRACKET, STOP (Tennant Industrial) $74.82 1 usually ships 6-16 days
9 575-0503 STRIP, RBR, 0.19 01.00W 01.7L (Tennant Industrial) $46.59 1 usually ships 6-16 days
10 175-0805 CAP, RBR, 0.38ID 1.25L BLK (Tennant Industrial) $12.69 2 usually ships 6-16 days
11 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
12 675-3043 BRACKET WLDT, SECONDARY, SQ (Tennant Industrial) $292.75 1 usually ships 6-16 days
13 175-3460 Flanged bushing $10.56 2 usually ships 6-16 days
14 175-9606 Round tube $22.20 2 usually ships 6-16 days
15 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.16 2 ships same day
16 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
17 175-6920 BOLT, EYE, .38-16 X 3.22, 0.28 EYE (Tennant Industrial) $16.03 2 usually ships 1-5 days
18 275-3268 Nut 3/8 - 16 hex, ss $3.00 2 usually ships 1-5 days
19 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $1.25 2 ships same day
20 175-0803 SPRING, EXTN, 1.69OD 0.20WIR 09.5L (Tennant Industrial) $38.91 2 usually ships 6-16 days
21 275-9097 ROD-END, 0.38-24RH MAL 0.38-24STUD (Tennant Industrial) $133.77 2 usually ships 6-16 days
22a 175-3322 Nut 3/8-24 hex lock $4.90 2 (Gas/LPG after SN 006999) (diesel) usually ships 6-16 days
22b 275-9098 NUT, HEX, FLEXLOCK, .38-24 (Tennant Industrial) $11.86 2 (Gas/LPG before SN 007000) usually ships 1-5 days
23 175-5333 Sleeve bushing $9.13 4 usually ships 6-16 days
24 175-3347 Washer .61 thrust $4.84 2 ships same day
25 175-9236 Heavy duty retainer ring $3.30 2 ships same day
26 275-5101 WASHER, FLAT, 0.69B 1.19D .06, STL, PL (Tennant Industrial) $6.61 2 usually ships 6-16 days
27 275-5100 CASTER, SQGE (Tennant Industrial) (OBSOLETE) $374.75 2 usually ships 6-16 days
28 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 2 (Gas/LPG after SN 006999) (diesel) ships same day
29 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 (Gas/LPG after SN 006999) (diesel) ships same day
30 375-1508 Nut (TENNANT INDUSTRIAL) $14.03 4 (Gas/LPG after SN 006999) (diesel) usually ships 6-16 days
KIT1 675-8000 LINKAGE KIT, SQGE, REPAIR [7400] (Tennant Industrial) $1,686.70 1 (includes 1-30) usually ships 6-16 days
