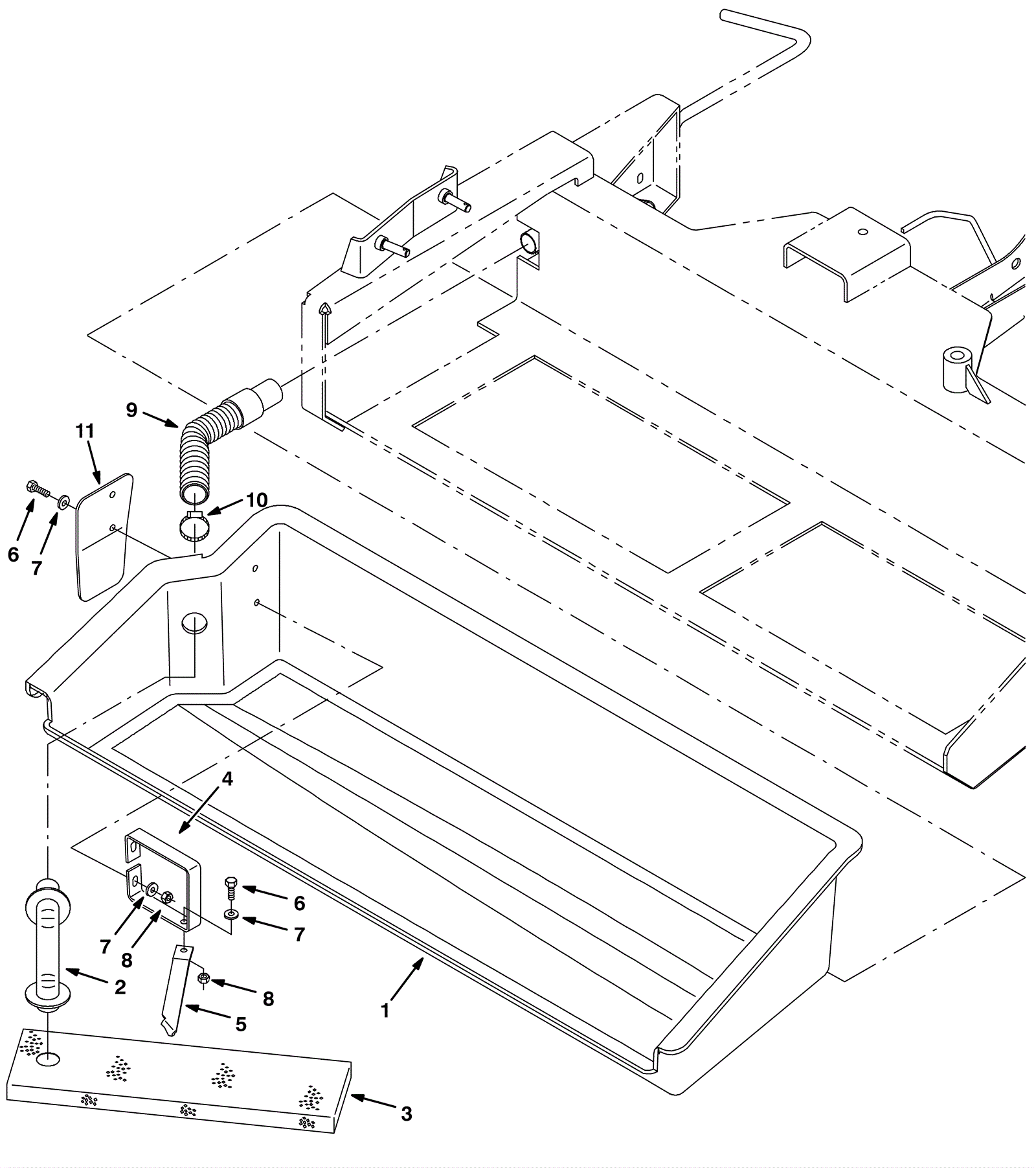

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6147
|
Debris tray (TENNANT INDUSTRIAL) (OBSOLETE) |
1 |
|
|
2 |
275-6146
|
Vacuum tube (TENNANT INDUSTRIAL) (OBSOLETE) |
1 |
|
|
3 |
275-6145
|
Filter tray (TENNANT INDUSTRIAL) (OBSOLETE) |
1 |
|
|
4 |
575-4699
|
BRACKET, FLTR (Tennant Industrial) |
1 |
|
|
5 |
575-5597
|
SPRING, FLAT, RETAINER, SCREEN, TROUGH (Tennant Industrial) |
1 |
|
|
6 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
3 |
|
|
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
5 |
|
|
8 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
9 |
275-6144
|
Vacuum hose (TENNANT INDUSTRIAL) (OBSOLETE) |
1 |
|
|
10 |
175-2254
|
Hose clamp |
2 |
|
|
11 |
375-1574
|
Support plate (Tennant Industrial) |
1 |
|
|
