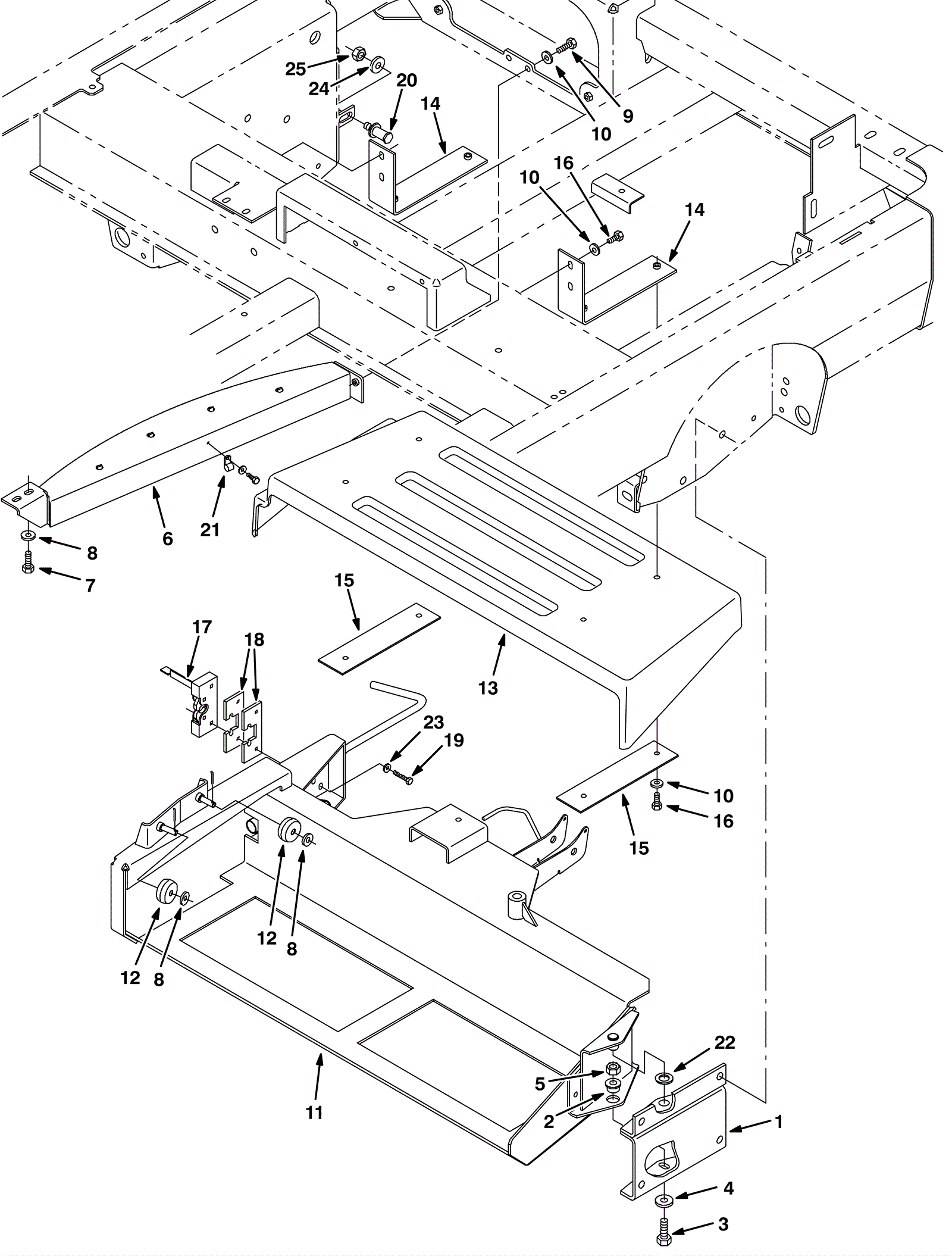

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-3056
|
PIVOT WLDT, TRAY (Tennant Industrial) (OBSOLETE) |
1 |
|
|
2 |
375-3698
|
Sleeve (Tennant Industrial) |
1 |
|
|
3 |
175-9656
|
Screw 12-1.75 x 40 hex head stainless steel |
1 |
|
|
4 |
999-0114
|
Washer 1/2 SAE flat |
1 |
|
|
5 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
6 |
675-4370
|
BRACKET WLDT, WHEEL, TRAY (Tennant Industrial) |
1 |
|
|
7 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
2 |
|
|
8 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
9 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
10 |
|
|
11 |
675-8102
|
TRAY (Tennant Industrial) (OBSOLETE) |
1 |
|
|
12 |
575-3863
|
WHEEL, 01.8D 0.75W 0.38B (Tennant Industrial) |
2 |
|
|
13 |
675-3688
|
COVER, TRAY, DEBRIS (Tennant Industrial) |
1 |
|
|
14 |
575-7474
|
BRACKET, COVER (Tennant Industrial) |
2 |
|
|
15 |
575-9084
|
BAR, FLAT, STL 0.12, 02.50 X 10.1L (Tennant Industrial) |
2 |
|
|
16 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
8 |
|
|
17 |
275-6022
|
LATCH, HOOK (Tennant Industrial) |
1 |
|
|
18 |
275-6023
|
SPACER, LATCH (Tennant Industrial) |
2 |
|
|
19 |
175-9662
|
Screw M6-1 x 35mm hex head stainless steel |
4 |
|
|
20 |
275-6024
|
LATCH, BOLT (Tennant Industrial) |
1 |
|
|
21 |
175-2152
|
P clamp |
1 |
|
|
22 |
175-0806
|
WASHER, THRUST, 0.75B 1.25D 0.06W (Tennant Industrial) |
1 |
|
|
23 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
24 |
999-0114
|
Washer 1/2 SAE flat |
1 |
(Gas/LPG after SN 006999) (diesel) |
|
25 |
999-0503
|
Nut M12-1.75 hex stainless steel |
1 |
(Gas/LPG after SN 006999) (diesel) |
|
