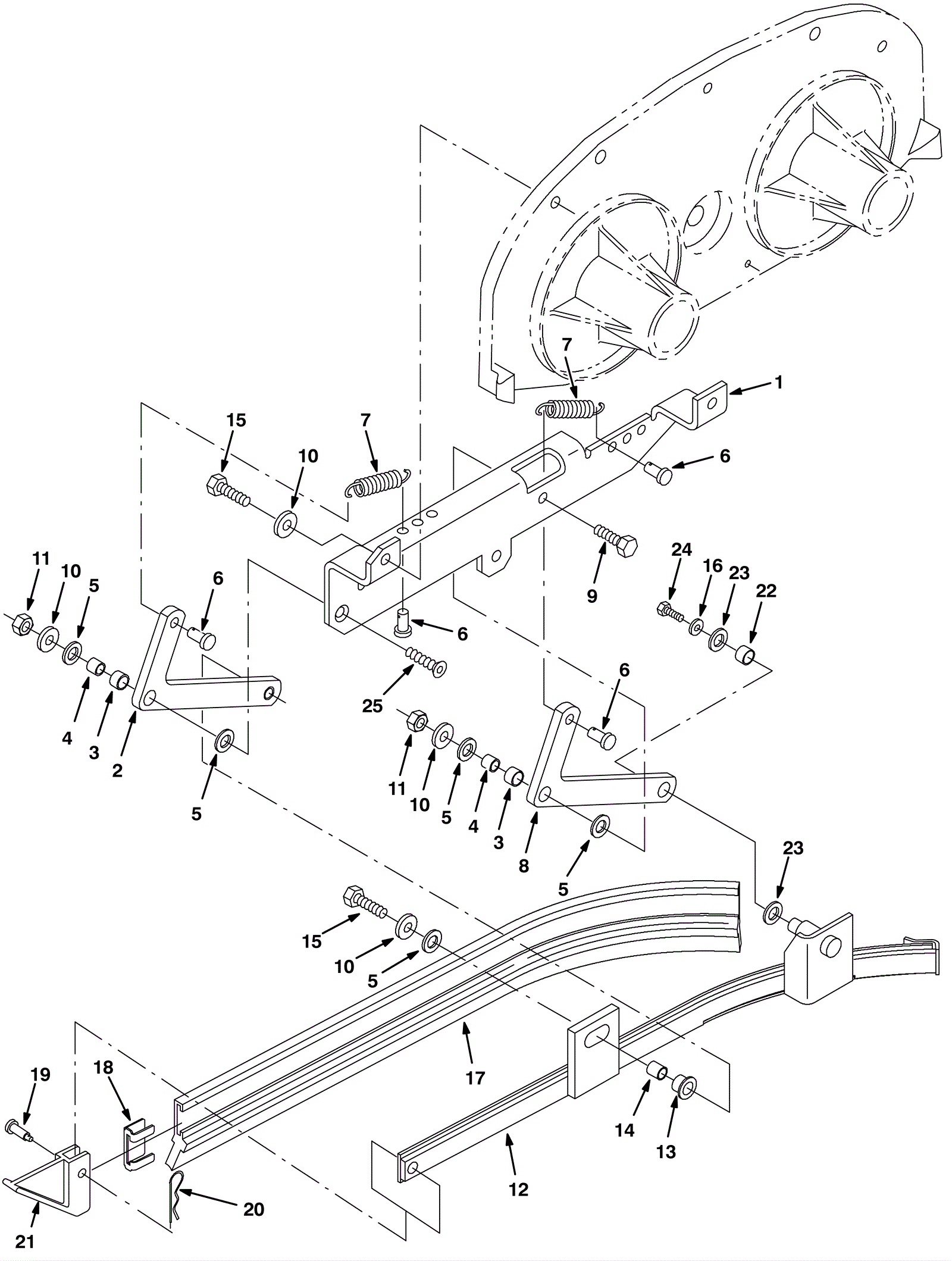

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-0949
|
BRACKET, SQGE, RH (Tennant Industrial) |
1 |
|
|
2 |
675-1585
|
ARM, LIFT, SQGE (Tennant Industrial) |
1 |
|
|
3 |
175-3349
|
Sleeved bushing |
2 |
|
|
4 |
175-9532
|
Bearing sleeve 5/8 x 33/64 |
2 |
|
|
5 |
175-3347
|
Washer .61 thrust |
5 |
|
|
6 |
175-3344
|
Clevis pin |
4 |
|
|
7 |
275-0840
|
Tension spring |
2 |
|
|
8 |
175-3348
|
Bell crank |
1 |
|
|
9 |
999-0246
|
Bolt M10-1.5 x 35mm hex head full thread |
1 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
6 |
|
|
11 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
12 |
675-4979
|
FRAME WLDT, SQGE, RH (Tennant Industrial) |
1 |
|
|
13 |
575-0765
|
BUSHING, FLNG, 0.63B 0.75D 0.50L (Tennant Industrial) |
1 |
|
|
14 |
575-2143
|
TUBE, 0.41ID 0.62OD 00.6L, SS, CHAM (OBSOLETE) |
1 |
|
|
15 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
4 |
|
|
16 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
17 |
175-3343
|
Side squeegee blade linatex |
1 |
|
|
18 |
175-3357
|
Squeegee blade retainer |
1 |
|
|
19 |
175-3351
|
Clevis pin |
1 |
|
|
20 |
175-2117
|
Cotter pin |
1 |
|
|
21 |
475-3313
|
GUIDE, SQGE, SIDE, YELLOW |
1 |
|
|
22 |
175-3355
|
Sleeved bushing |
1 |
|
|
23 |
175-3354
|
Thrust washer |
2 |
|
|
24 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
1 |
|
|
25 |
999-9142
|
Screw M10-1.5 x 35mm flat head |
1 |
|
|
KIT1 |
275-9107
|
SQUEEGEE ASSY, SIDE, RH (Tennant Industrial) |
1 |
(includes 1-25) |
|
