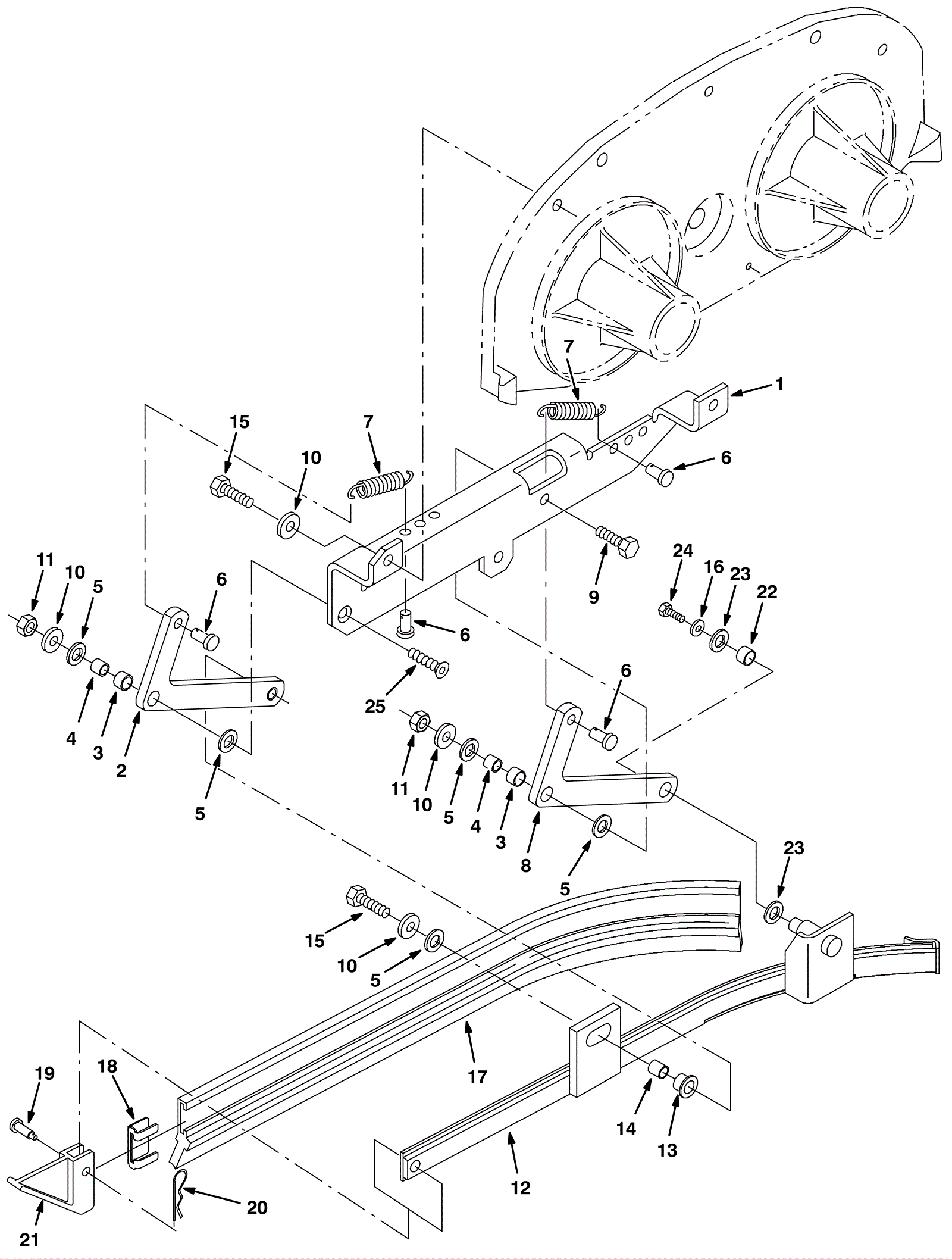

7400 Left Hand Scrub Brush Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 675-0021 BRACKET, SQGE, LH (Tennant Industrial) $338.51 1 usually ships 10-13 days
2 675-1585 ARM, LIFT, SQGE (Tennant Industrial) $661.82 1 usually ships 10-13 days
3 175-3349 Sleeved bushing $13.64 2 usually ships 10-13 days
4 175-9532 Bearing sleeve 5/8 x 33/64 $18.37 2 usually ships 10-13 days
5 175-3347 Washer .61 thrust $5.50 5 usually ships 10-13 days
6 175-3344 Clevis pin $8.25 4 usually ships 10-13 days
7 275-0840 Tension spring $7.37 2 usually ships 10-13 days
8 175-3348 Bell crank $61.05 1 usually ships 10-13 days
9 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 ships same day
11 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
12 675-4906 FRAME WLDT, SQGE, LH (Tennant Industrial) $875.68 1 usually ships 10-13 days
13 575-0765 BUSHING, FLNG, 0.63B 0.75D 0.50L (Tennant Industrial) $19.67 1 usually ships 10-13 days
14 575-2143 TUBE, 0.41ID 0.62OD 00.6L, SS, CHAM (OBSOLETE) $26.22 1 usually ships 10-13 days
15 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 1 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
17 175-3343 Side squeegee blade linatex $70.40 1 ships same day
18 175-3357 Squeegee blade retainer $12.10 1 usually ships 10-13 days
19 175-3351 Clevis pin $4.49 1 usually ships 10-13 days
20 175-2117 Cotter pin $5.28 1 usually ships 10-13 days
21 475-3313 GUIDE, SQGE, SIDE, YELLOW $19.14 1 usually ships 10-13 days
22 175-3355 Sleeved bushing $7.37 1 usually ships 10-13 days
23 175-3354 Thrust washer $10.67 2 usually ships 10-13 days
24 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.67 1 usually ships 1-5 days
KIT1 275-5173 SQUEEGEE ASSY, SIDE, LH (Tennant Industrial) $1,897.62 1 (includes 1-24) usually ships 1-5 days
