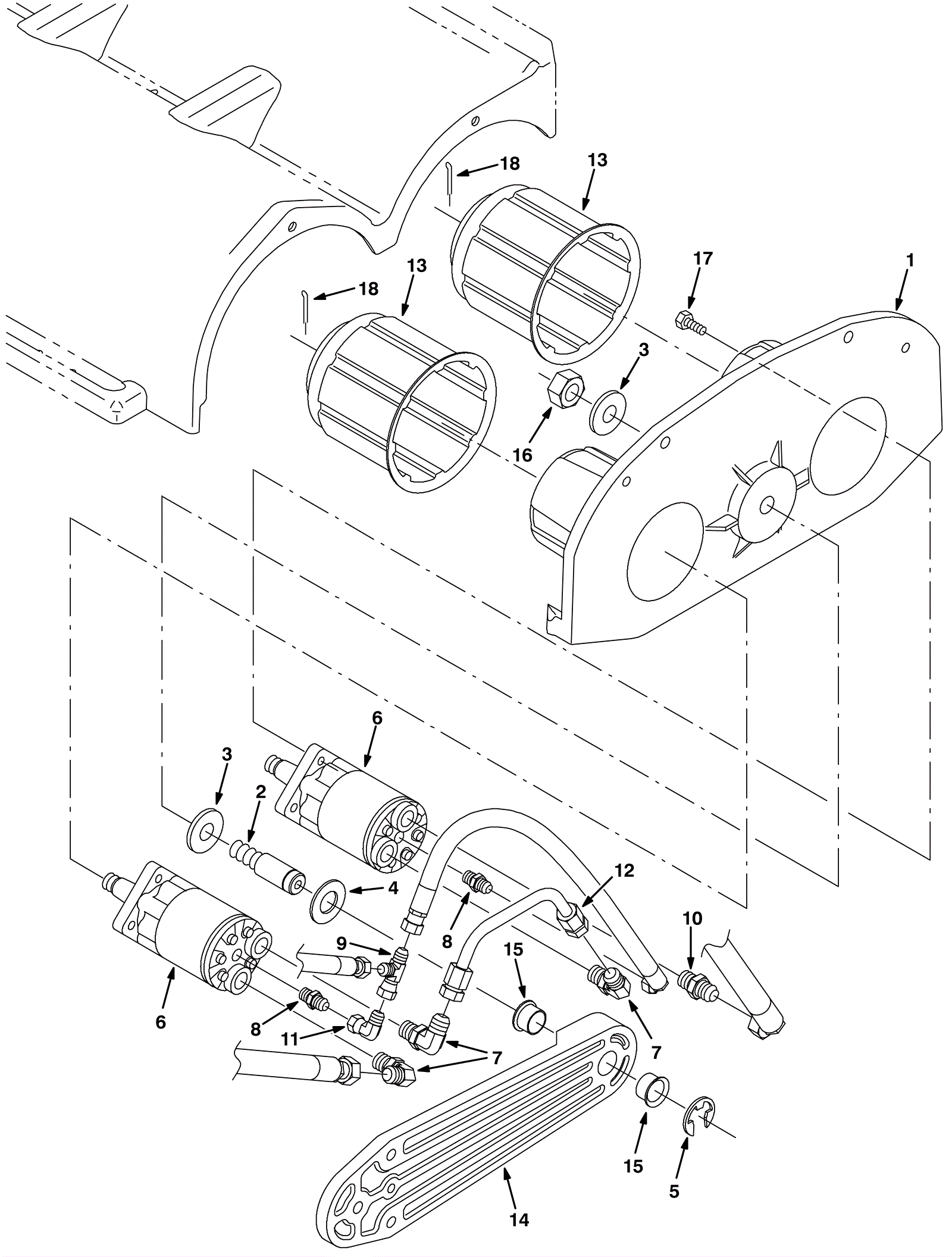

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
675-7292
|
PLATE, MTG (Tennant Industrial) |
1 |
|
|
2 |
575-9983
|
SHAFT, PIVOT (Tennant Industrial) |
1 |
|
|
3 |
999-0630
|
Washer 3/4 SAE flat |
2 |
|
|
4 |
575-3009
|
WASHER, THRUST, 1.03B 2.00D 0.06W, PL (Tennant Industrial) |
1 |
|
|
5 |
375-0702
|
Retainging ring (Tennant Industrial) |
1 |
|
|
6 |
675-6648
|
MOTOR KIT, MAIN BRUSH, REPLMT [MAKO] (Tennant Industrial) |
2 |
|
|
7 |
175-7165
|
FITTING, HYD, E90, JM08/OM08 (Tennant Industrial) |
3 |
|
|
8 |
175-8098
|
FITTING, HYD, STR, JM04/OM04 (Tennant Industrial) |
2 |
|
|
9 |
275-3121
|
FITTING, HYD, TEE, JF04/JM04/JM04, RUN (Tennant Industrial) |
1 |
|
|
10 |
275-0415
|
Straight hydraulic fitting |
1 |
|
|
11 |
275-9441
|
FITTING, HYD, E90, JF04/JM04 (Tennant Industrial) |
1 |
|
|
12 |
675-0741
|
TUBE, HYD, 08 JF08/JF08 [U] (Tennant Industrial) |
1 |
|
|
13 |
275-5174
|
PLUG WLDT, DRIVE, BRUSH (Tennant Industrial) |
2 |
|
|
14 |
675-4330
|
ARM, BRUSH, MAIN, DRIVE, MACH (Tennant Industrial) |
1 |
|
|
15 |
275-5674
|
Flanged bushing (Tennant Industrial) |
2 |
|
|
16 |
275-0556
|
NUT, HEX, STD, M20 X 2.50, 8 (Tennant Industrial) |
1 |
|
|
17 |
275-9428
|
SCREW, HEX, .38-16 X 0.75, NL (Tennant Industrial) |
8 |
|
|
18 |
175-3281
|
Cotter pin |
2 |
|
|
