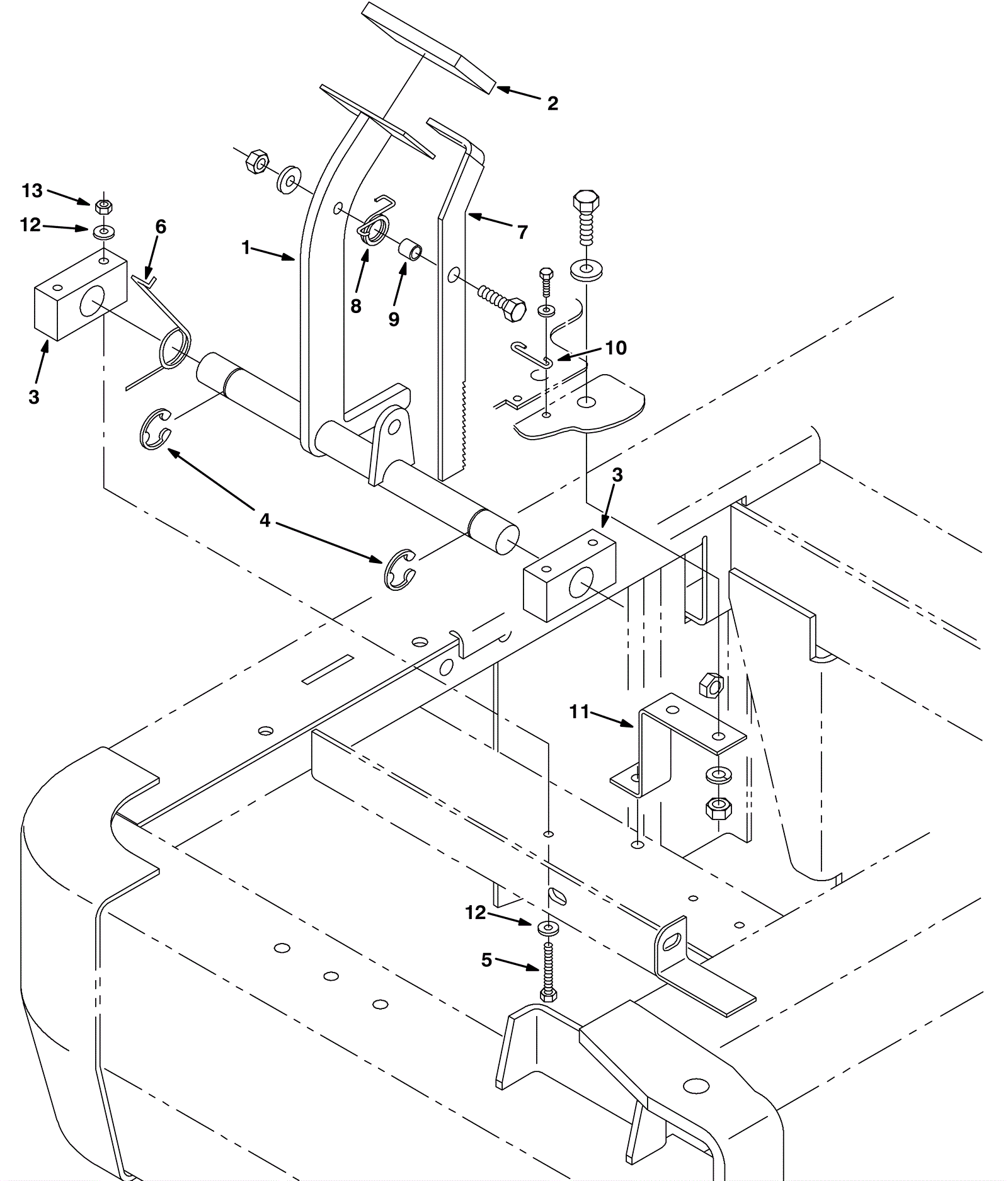

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
675-1645
|
SHAFT WLDT, PEDAL, BRAKE (Tennant Industrial) |
$171.84
|
1 |
|
usually ships 10-16 days |
2 |
175-3279
|
Pedal pad |
$30.58
|
1 |
|
usually ships 10-16 days |
3 |
275-2961
|
BEARING, PILLOWBLOCK, 1.02B [SOLID PYE] (Tennant Industrial |
$61.85
|
2 |
|
usually ships 10-16 days |
4 |
375-0702
|
Retainging ring (Tennant Industrial) |
$4.40
|
2 |
|
usually ships 1-5 days |
5 |
175-3400
|
Bolt M6-1 x 55mm hex head stainless steel |
$4.88
|
4 |
|
usually ships 1-5 days |
6 |
175-9984
|
Torsion spring |
$17.05
|
1 |
|
usually ships 10-16 days |
7 |
175-9985
|
Brake pedal lock |
$47.19
|
1 |
|
usually ships 1-5 days |
8 |
175-0633
|
Spring |
$5.50
|
1 |
|
usually ships 10-16 days |
9 |
175-0632
|
Sleeve bushing |
$4.88
|
1 |
|
usually ships 1-5 days |
10 |
375-0700
|
Parking brake spring (Tennant Industrial) |
$10.34
|
1 |
|
usually ships 1-5 days |
11 |
575-3466
|
BRACKET, BRAKE (Tennant Industrial) |
$25.38
|
1 |
|
usually ships 10-16 days |
12 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
8 |
|
ships same day |
13 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$0.99
|
4 |
|
ships same day |
