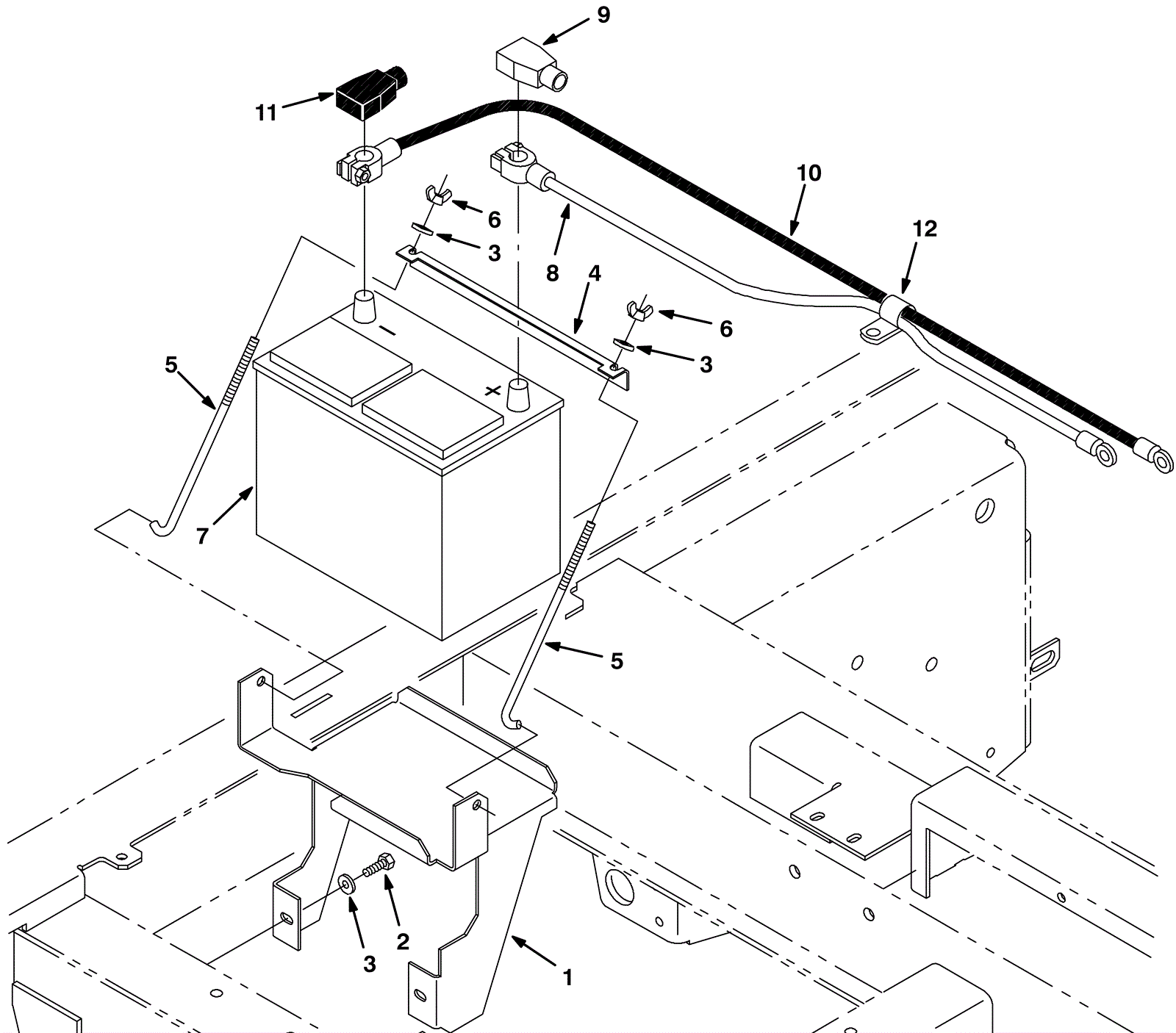

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
575-7475
|
TRAY, BATTERY (Tennant Industrial) |
1 |
|
|
2 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
2 |
|
|
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
4 |
|
|
4 |
275-2914
|
BRACKET, ANGLE, HOLD-DOWN, BATTERY (Tennant Industrial) |
1 |
|
|
5 |
575-4850
|
BOLT, HOLD-DOWN, BATTERY 08.5L (Tennant Industrial) |
2 |
|
|
6 |
275-1861
|
NUT, WING, .31-18 (Tennant Industrial) |
2 |
|
|
7a |
675-9916
|
12V wet battery |
1 |
(gas/lpg) |
|
7b |
162-0011
|
12V 105Ah wet battery (SNSR) |
1 |
(diesel) |
|
8a |
575-4235
|
CABLE, BATTERY, 04GA 38.0L RED .38RING (Tennant Industrial) |
1 |
(gas/lpg) |
|
8b |
575-4356
|
CABLE, BATTERY, 02GA 33.0L RED .38RING (Tennant Industrial) |
|
(diesel) |
|
9 |
175-6887
|
Boot (red) |
1 |
|
|
10a |
575-6384
|
CABLE, BATTERY, 04GA 36.0L BLK .38RING (Tennant Industrial) |
1 |
(gas/lpg) |
|
10b |
575-5131
|
CABLE, BATTERY, 02GA 36.0L BLK .38RING (Tennant Industrial) |
|
(diesel) |
|
11 |
175-6885
|
Boot (black) |
1 |
|
|
12 |
175-2260
|
P clamp |
1 |
|
|
