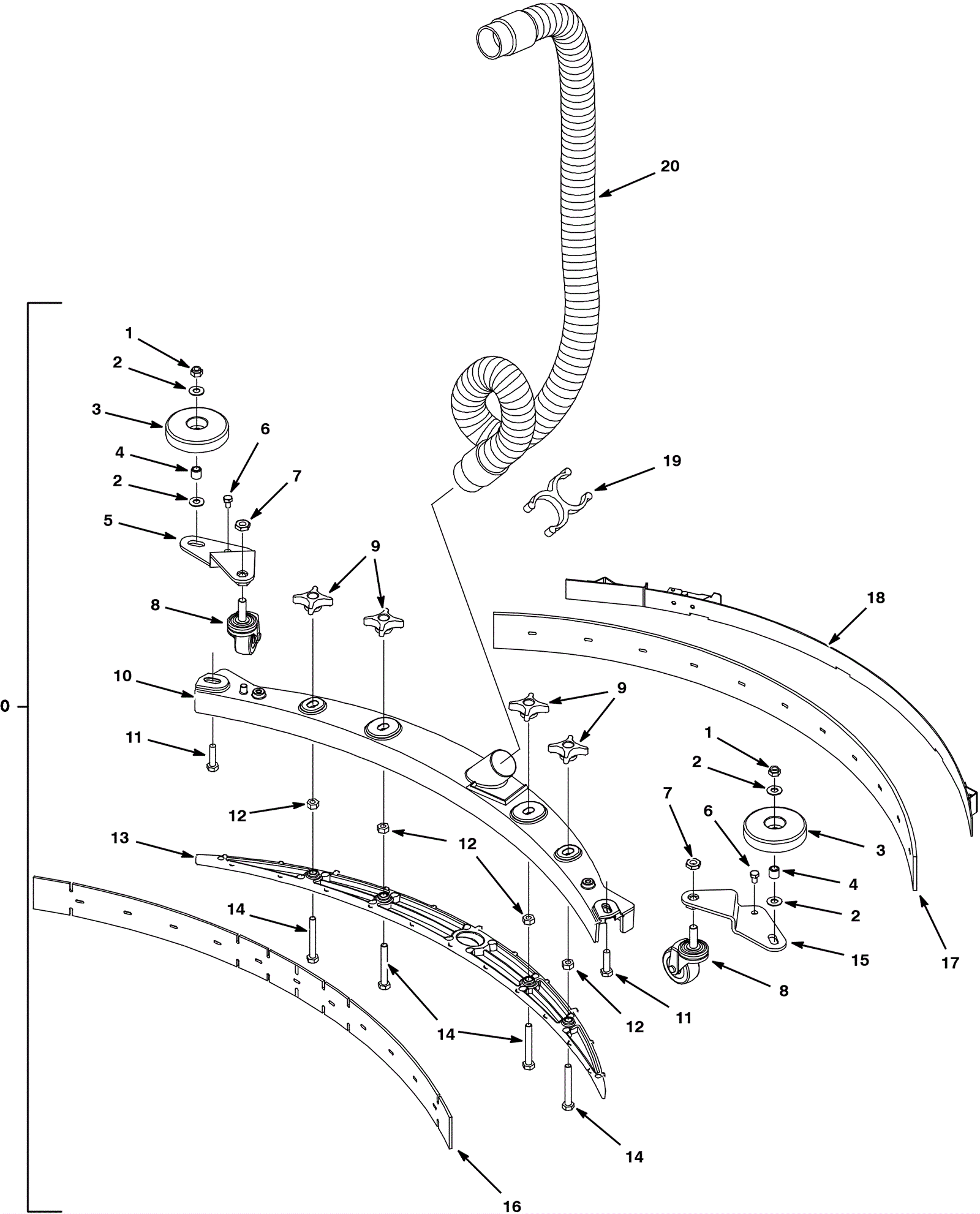

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
675-9899
|
20 inch (500mm) squeegee assembly |
1 |
(includes 1-3a,4-8a,16a,17a and 18) |
|
1 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
2 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
3a |
175-7919
|
Guide wheel |
2 |
(OEM) |
|
3b |
991-8570
|
Bumper wheel |
2 |
(NON-OEM) |
|
4 |
175-2249
|
Sleeve |
2 |
|
|
5 |
175-7952
|
Right hand mounting plate |
1 |
|
|
6 |
999-1319
|
Screw M6-1 x 12mm hex head plain finish |
2 |
|
|
7 |
999-1625
|
Nut M10-1.5 hex jam stainless steel |
2 |
|
|
8a |
175-7953
|
Swivel caster wheel |
2 |
(OEM) |
|
8b |
991-8581
|
Swivel caster wheel |
2 |
(NON-OEM) |
|
9 |
375-0261
|
Star knob M8-1.25 |
4 |
|
|
10 |
175-7955
|
20 inch (500mm) squeegee weldment |
1 |
|
|
11 |
999-0785
|
Screw M8-1.25 x 30mm hex head stainless steel |
2 |
|
|
12 |
999-1424
|
Nut M8-1.25 hex stainless steel |
4 |
|
|
13 |
275-1548
|
20 inch (500mm) squeegee blade retainer |
1 |
|
|
14 |
999-1155
|
Screw M8-1.25 x 60mm hex head |
4 |
|
|
15 |
175-7957
|
Left hand mounting plate |
1 |
|
|
16a |
175-7958
|
Squeegee blade 20 inch linatex front |
1 |
|
|
16b |
175-7959
|
Squeegee blade 20 inch gum rubber front |
1 |
|
|
16c |
175-7960
|
Squeegee blade 20 inch oil resistant front |
1 |
|
|
17a |
175-7961
|
Squeegee blade 20 inch linatex rear (red) |
1 |
(standard) |
|
17b |
175-7962
|
Squeegee blade 20 inch gum rubber rear (tan) |
1 |
(optional) |
|
17c |
175-7963
|
Squeegee blade 20 inch oil resistant rear |
1 |
(optional) |
|
18 |
175-7964
|
20 inch squeegee strap assembly |
1 |
|
|
19 |
175-4772
|
Hose bracket |
1 |
|
|
20a |
175-7966
|
Vacuum hose with short cuffs |
1 |
(OEM) |
|
20b |
991-5139
|
Vacuum hose with short cuffs |
1 |
(NON-OEM) |
|
