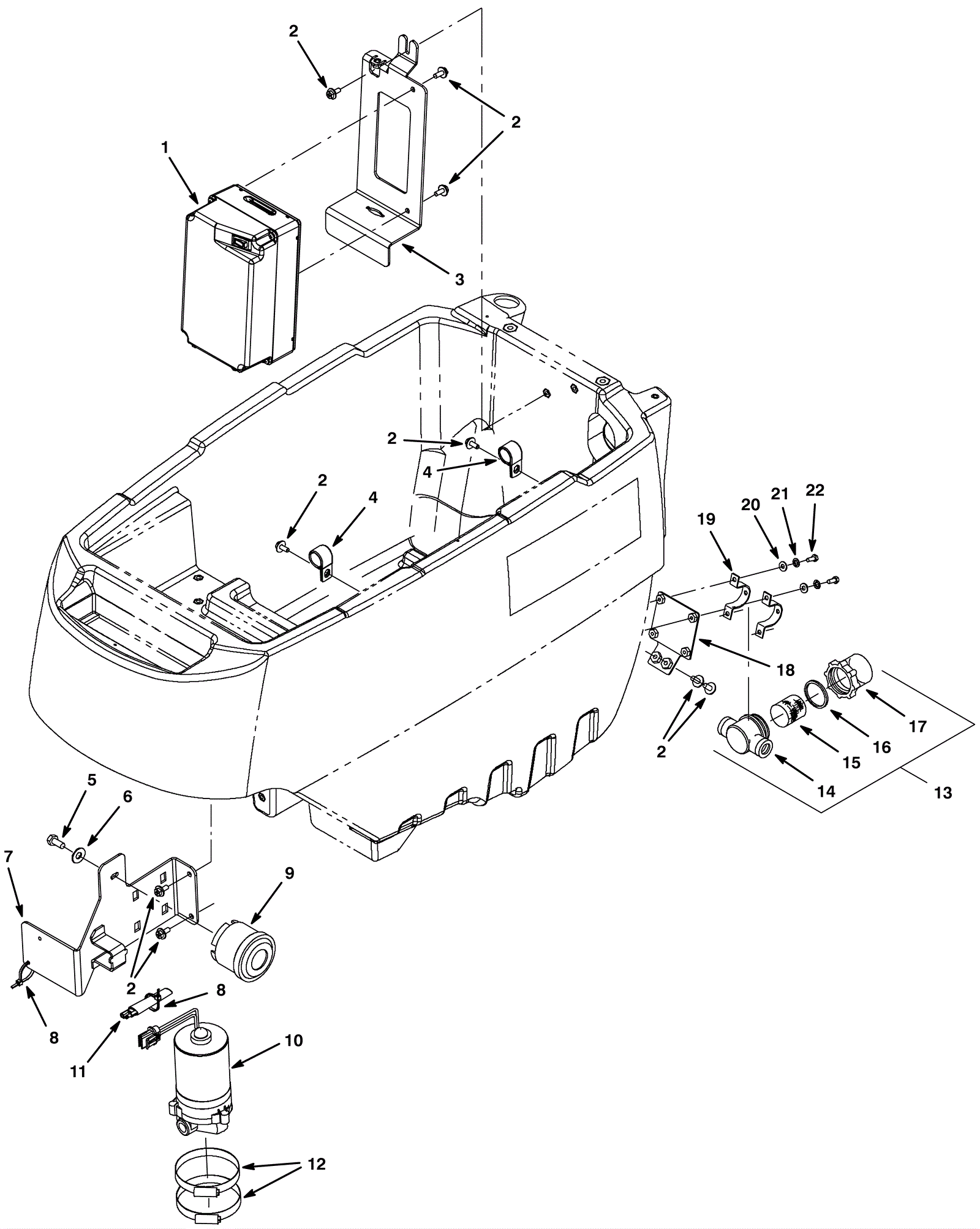

SS3 Solution Assembly - ec-H2O - External

#PartDescriptionPriceReqNotesAvailability
1 275-9935 ec-H20 module (OBSOLETE) $2,058.54 1 usually ships 10-16 days
2 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 9 ships same day
3 275-5932 Charger mounting bracket $76.56 1 usually ships 1-5 days
4 175-3005 P clamp $4.22 2 usually ships 10-16 days
5 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 1 ships same day
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
7 275-5922 Bracket weldment (OBSOLETE) $58.08 1 usually ships 1-5 days
8 175-7795 Cable tie $4.75 2 ships same day
9 275-8062 Horn $149.49 1 usually ships 10-16 days
10a 275-4753 24V solution pump $438.24 1 (includes 10b-10f) usually ships 10-16 days
10b 275-4754 Solution head pump kit $180.95 1 usually ships 1-5 days
10c 175-8753 Female connector $7.70 1 usually ships 10-16 days
10d 175-8755 TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) $5.17 1 usually ships 1-5 days
10e 175-8754 14/16 wire seal $4.09 1 usually ships 1-5 days
10f 175-8756 Male and female secondary lock $4.88 1 usually ships 10-16 days
11 275-4752 Capacitor plug $17.60 1 ships same day
12 997-2009 Hose clamp $3.30 3 ships same day
13a 175-9025 In-line screen filter assembly $21.45 1 (includes 14-17) (OEM) ships same day
13b 991-8582 Mesh inline filter $15.76 1 (NON-OEM) ships same day
14 175-5865 Top filter body housing $24.97 1 usually ships 10-16 days
15a 175-5866 Mesh filter screen $12.43 1 (OEM) ships same day
15b 991-8569 Mesh filter screen stainless steel $4.51 1 (NON-OEM) ships same day
16 175-5867 Filter gasket $6.49 1 ships same day
17a 175-5868 Short clear filter bowl $18.48 1 (OEM) ships same day
17b 991-8575 Short bowl (clear) $13.54 1 (NON-OEM) ships same day
18 275-5921 Mounting bracket $40.15 1 usually ships 10-16 days
19 175-3690 U clamp $26.84 2 usually ships 10-16 days
20 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
21 999-1026 Washer #10 internal lock stainless steel $0.99 4 ships same day
22 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 4 ships same day
