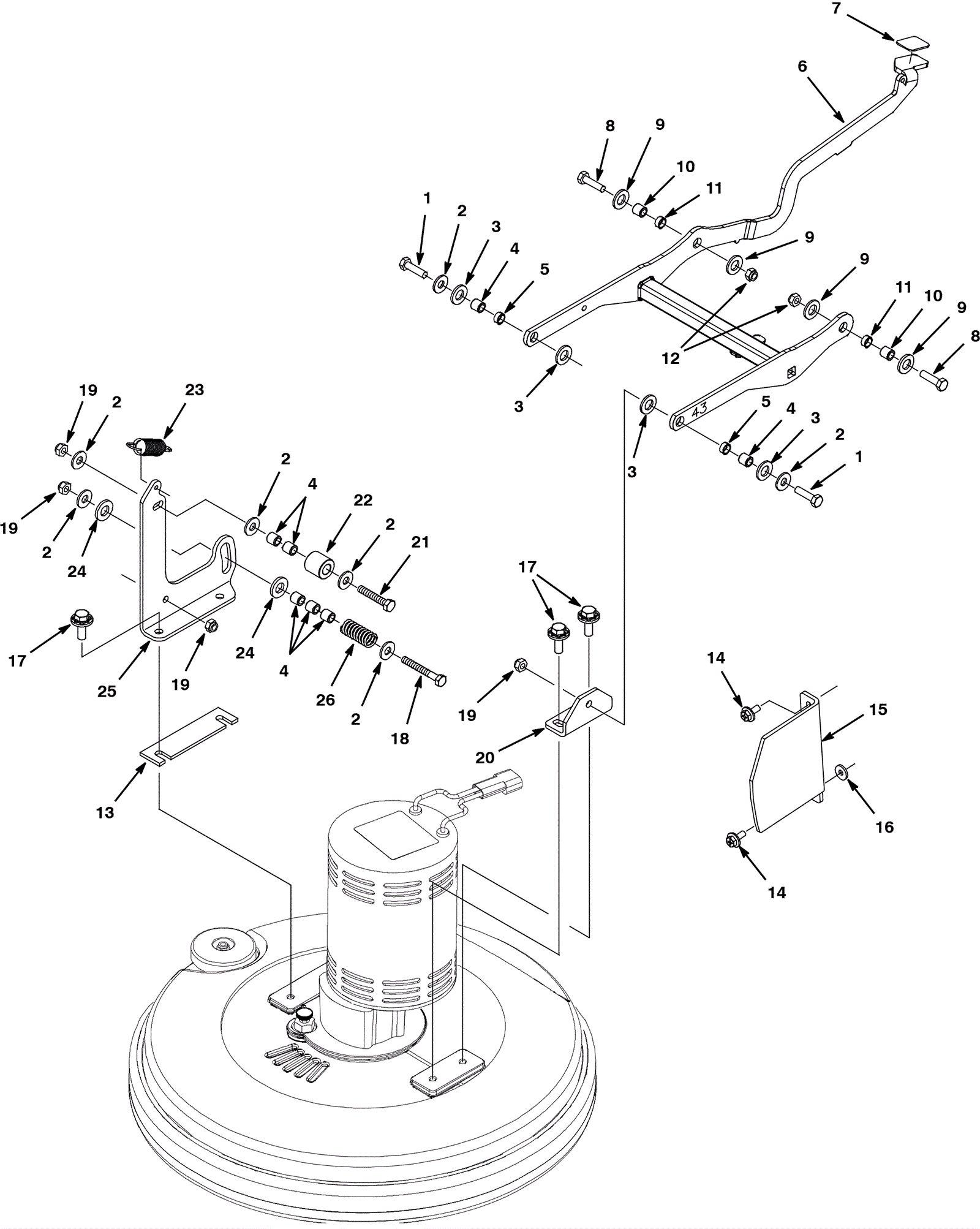

SS3 Scrub Head Lift Assembly - Single Disk

#PartDescriptionPriceReqNotesAvailability
1 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
2 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 7 ships same day
3 999-9214 Washer M8 flat nylon $0.99 4 usually ships 11-24 days
4 175-2249 Sleeve $2.80 7 usually ships 5-16 days
5 175-4720 Bearing $8.80 2 usually ships 5-16 days
6a 275-7520 Brush lift weldment assembly $535.90 1 (17 inch) (includes 7-12) usually ships 5-16 days
6b 275-6138 Brush lift weldment assembly $489.20 1 (20 inch) (includes 7-12) usually ships 5-16 days
7 175-7904 Adhesive non-slip pad $3.60 1 usually ships 5-16 days
8 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
9 999-9214 Washer M8 flat nylon $0.99 4 usually ships 11-24 days
10 175-2249 Sleeve $2.80 2 usually ships 5-16 days
11 175-4720 Bearing $8.80 2 usually ships 5-16 days
12 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 ships same day
13 275-5917 Spacer plate $10.50 1 usually ships 5-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
15a 175-7926 Guide bracket $43.10 1 (17 inch) usually ships 1-5 days
15b 175-7912 Guide bracket $40.40 1 (20 inch) usually ships 5-16 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 1 ships same day
17 999-9082 Screw M8-1.25 x 25mm hex head stainless steel $1.85 4 ships same day
18 999-1155 Screw M8-1.25 x 60mm hex head $1.87 1 ships same day
19 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
20 175-7914 Mounting bracket $18.10 1 usually ships 5-16 days
21 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $3.60 1 ships same day
22 175-7911 Roller $8.80 1 usually ships 5-16 days
23a 275-5918 Extension spring $6.00 1 (17 inch) usually ships 5-16 days
23b 275-5919 Extension spring $6.00 1 (20 inch) usually ships 5-16 days
24 175-0939 Thrust washer $4.50 2 ships same day
25 175-7909 Mounting bracket $73.80 1 usually ships 5-16 days
26 175-0944 Spring $8.40 1 usually ships 5-16 days
N/S 175-7795 Cable tie $3.50 1 ships same day
